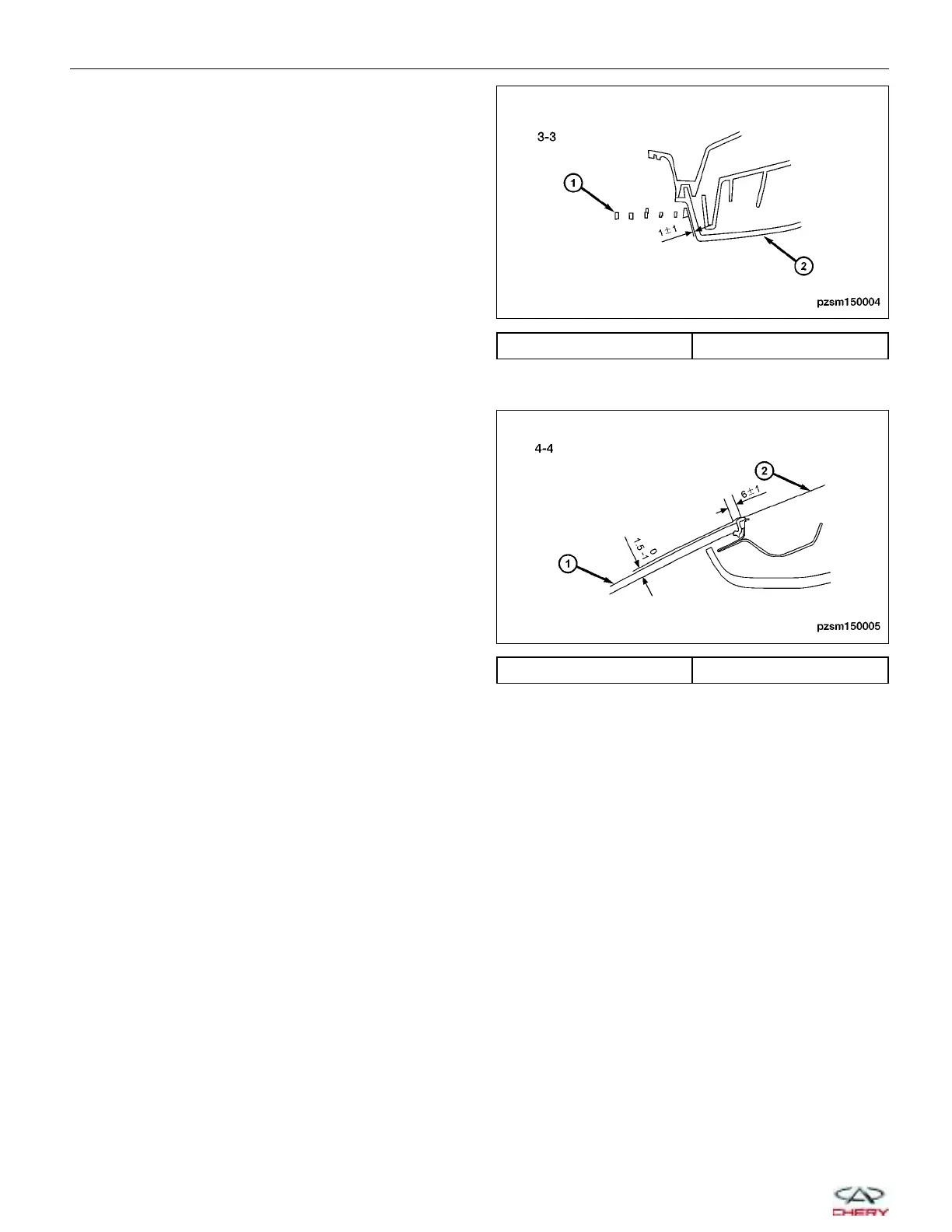

Clearance between headlamp and air inlet grid at 3-3:

1 ± 1 mm

Clearance between the front windshield and the vehicle

roof at 4-4: 6 ± 1 mm

1 - Air Inlet Grille

2 - Headlamp

1 - Front Windscreen

2 - Vehicle Roof
