HelixNet | User Guide

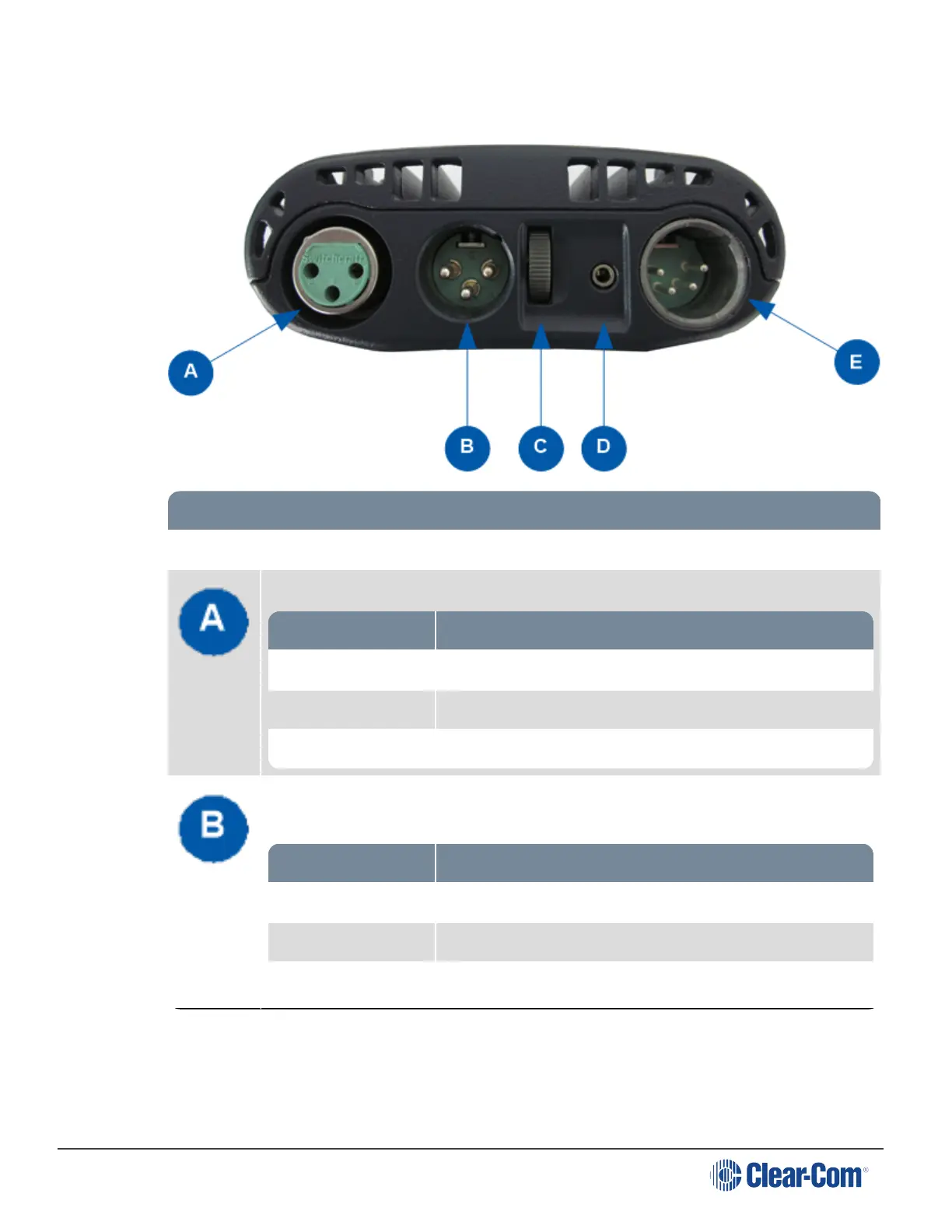

2.6.2 HBP-2X Connectors and Controls (Rear View)

Key to HBP-2X Beltpack (Rear view)

Feature Description

Line (Digital Partyline) (3-pin female XLR connector).

Pin Function

1 Ground

2 +30V DC and Audio

3 -30V DC and Audio

Line (Digital Partyline) (3-pin male XLR connector). Pass-through for daisy chain

connection, see diagram in Topologies.

Pin Function

1 Ground

2 +30V DC and Audio

3 -30V DC and Audio

Page 42
