2 Overview
The Cleverscope is a PC based mixed signal oscilloscope, spectrum analyser, and signal generator. Signals are
captured by the Cleverscope Acquisition Unit that connects via USB or Ethernet connection to a local PC.
Software in the PC provides a significant functionality not normally unavailable from traditional stand-alone
oscilloscopes.

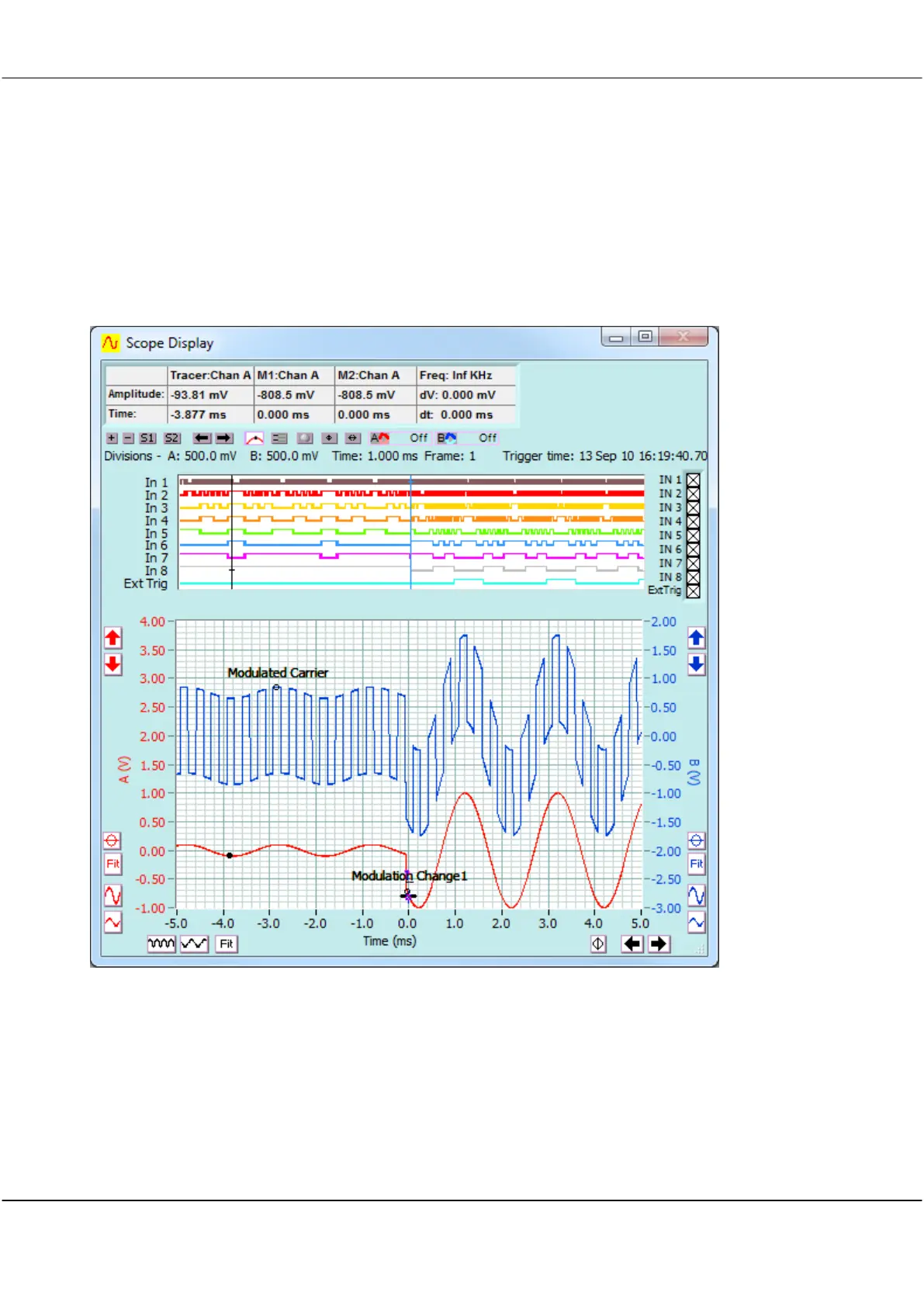

The Scope display is the main window and, as shown below, contains the normal waveform display together
with an information panel, plus the option for displaying up 8 to digital inputs.
On-screen controls allow the display to be adjusted as required. Tracers are provided to facilitate detailed
measurements.
Cleverscope functionality is resident on the PC. The Cleverscope Application Software implements several
different oscilloscope displays, signal generator controls, spectrum analyser, digital logic analyser, protocol
anaylser, Matlab functionality, and copy and paste facilities for documentation of test results. Graphs and data
can be copied and pasted to other applications, saved or loaded from disk, and printed.
A full technical specification is included at the end of this manual.
