11.2 Persistence Plots

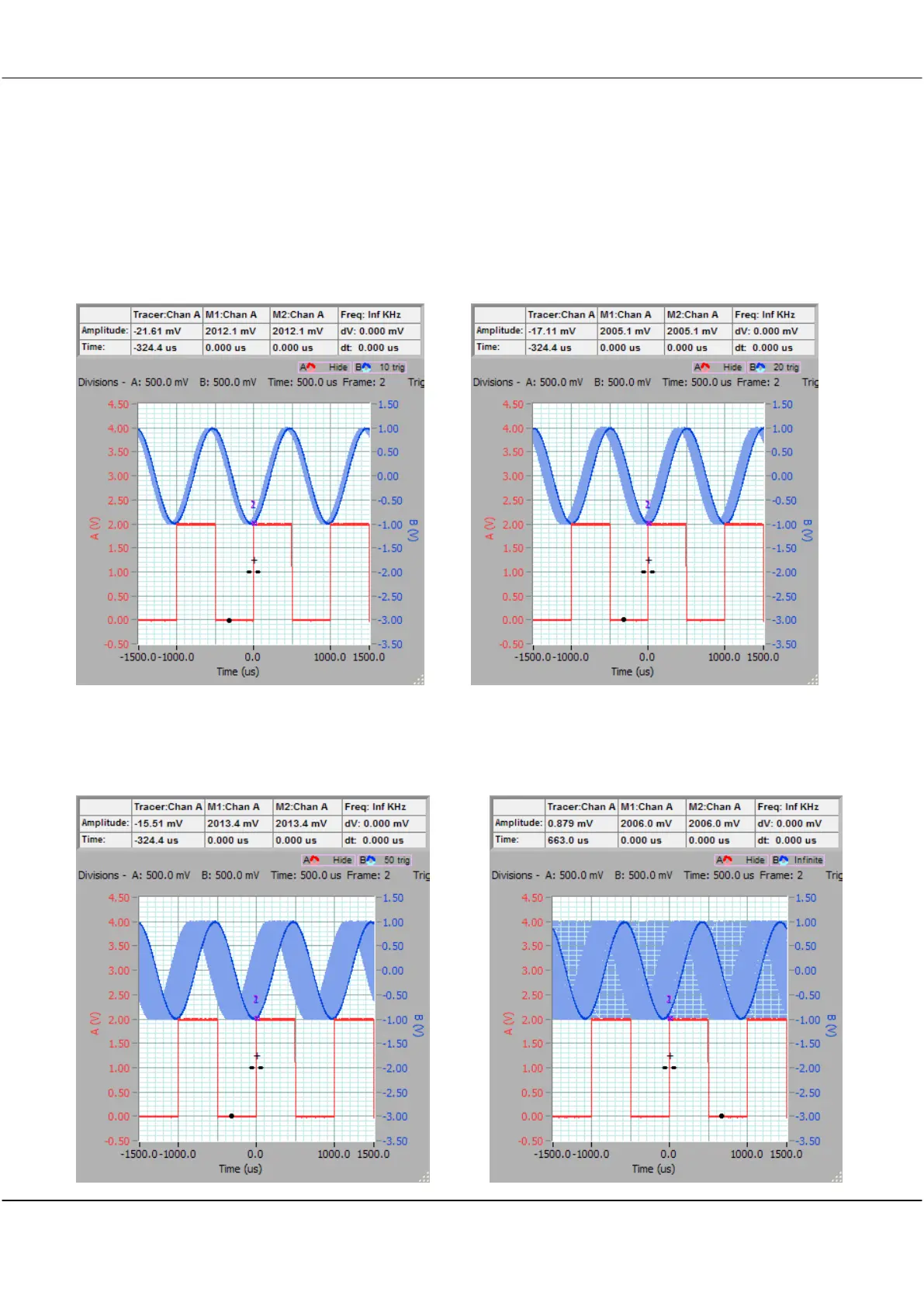

Here we show the differences between the 4 types of persistence plot:
10 trig
Channel B moves the 10 most recent plots to
persistence.
The oldest plot is lost as the newest plot is added.
20 trig
Channel B moves the 20 most recent plots to
persistence. The oldest plot is lost as the newest plot is
added.
50 trig
Channel B moves the 50 most recent plots to
persistence.
The oldest plot is lost as the newest plot is added.
Infinite
Channel B moves all plots to persistence. Older plots are
added to a background bitmap.
