Cleverscope CS300 Reference Manual v2.11
Page 30 www.cleverscope.com ©Cleverscope 2004-2015

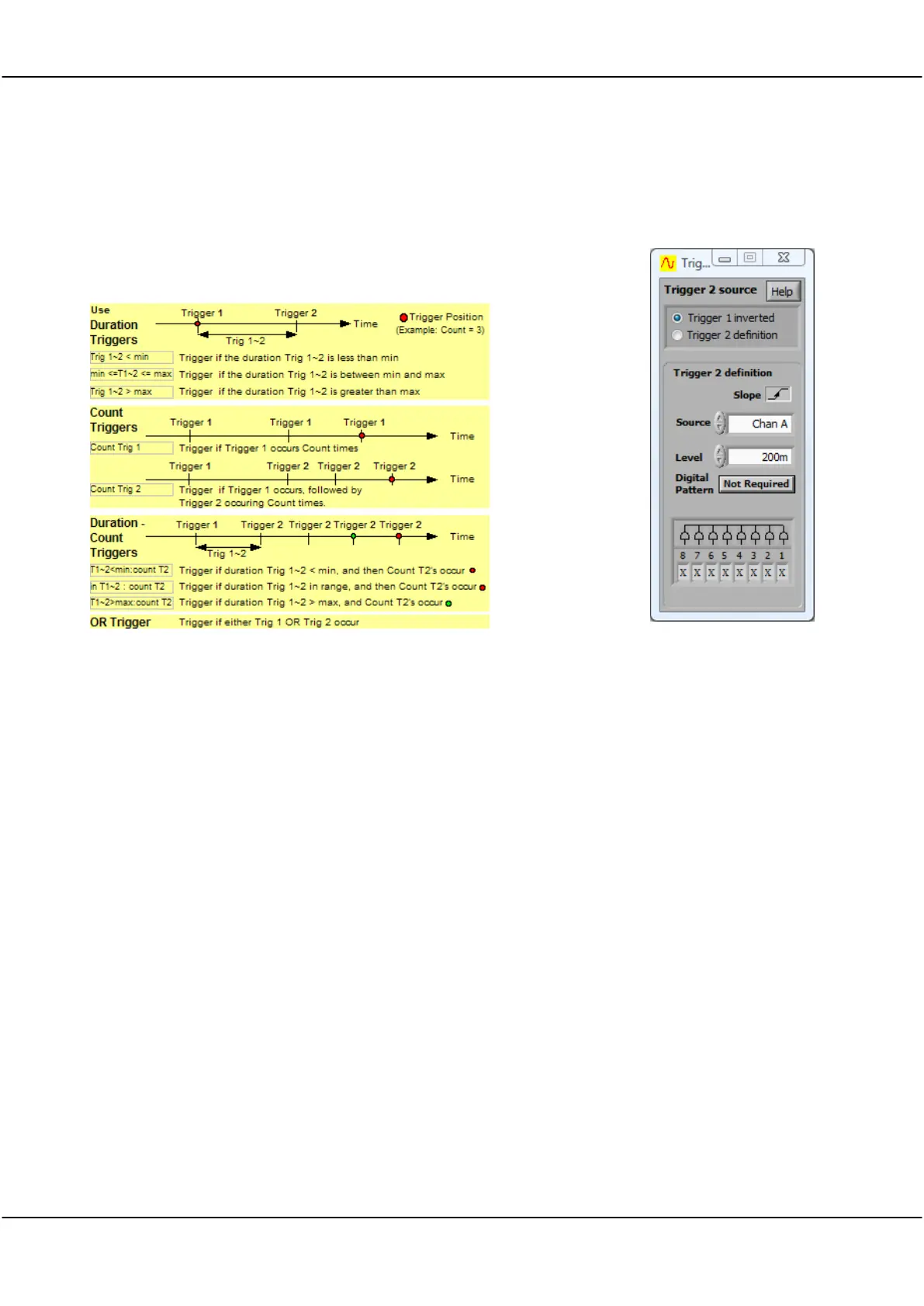

4.5 Trigger 2 Settings (Ctrl+T) [Control Panel]
Note: Trigger 2 settings are in a pop-up window accessed via the View menu
Click on the View menu at the top of the Cleverscope Control Panel and select Trigger 2 Settings (or Ctrl + T).
Help
Click on the button to display the following Help screen
Trigger 1 Inverted
Trigger 2 Definition
Trigger 1 inverted sets Trigger 2 to trigger on the inverted value of Trigger 1.
Defines Trigger 2 as per the completely separate Trigger 2 definition area below.
Click on the Slope symbol to toggle whether the voltage level will be increasing or
decreasing through the trigger point when triggering occurs.
The triggering slope is initially determined by the choice of an upward or downward
trigger cursor but it can be changed at any time using the slope button without
changing the level of the trigger point.
These controls operate the same as the equivalent controls for Trigger 1.
Click on the arrows or in the field to select the source of triggering from the dropdown
list.
Options are Channel A, Channel B, External trigger, Digital inputs, or the
Link input which is available on the Mini-Din connector at the back of the capture
unit.
Click on the up or down arrow or type a value in the field to set the triggering Level.
Hysteresis is used to reduce false triggering due to noise. The normal hysteresis is
2.5% of the amplitude range. Signals must fully transition through the hysteresis band
to cause a trigger. Trigger 2 does not have a filter option.
