xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide
Destination Port Mask - Specify a UDP port mask for the destination port in hex form
(hex 0x0-0xffff).
Select Protocol ID - Enter a value defining the protocol ID in the packet header to mask.
Specify the protocol ID mask in hex form (hex 0x0-0xff).
Protocol ID Mask – Specify that the rule applies to the IP Protocol ID Traffic.
User Define – Specify the L4 part mask.
Click the Select button to select an CPU ACL type.
Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button, the following page will appear:

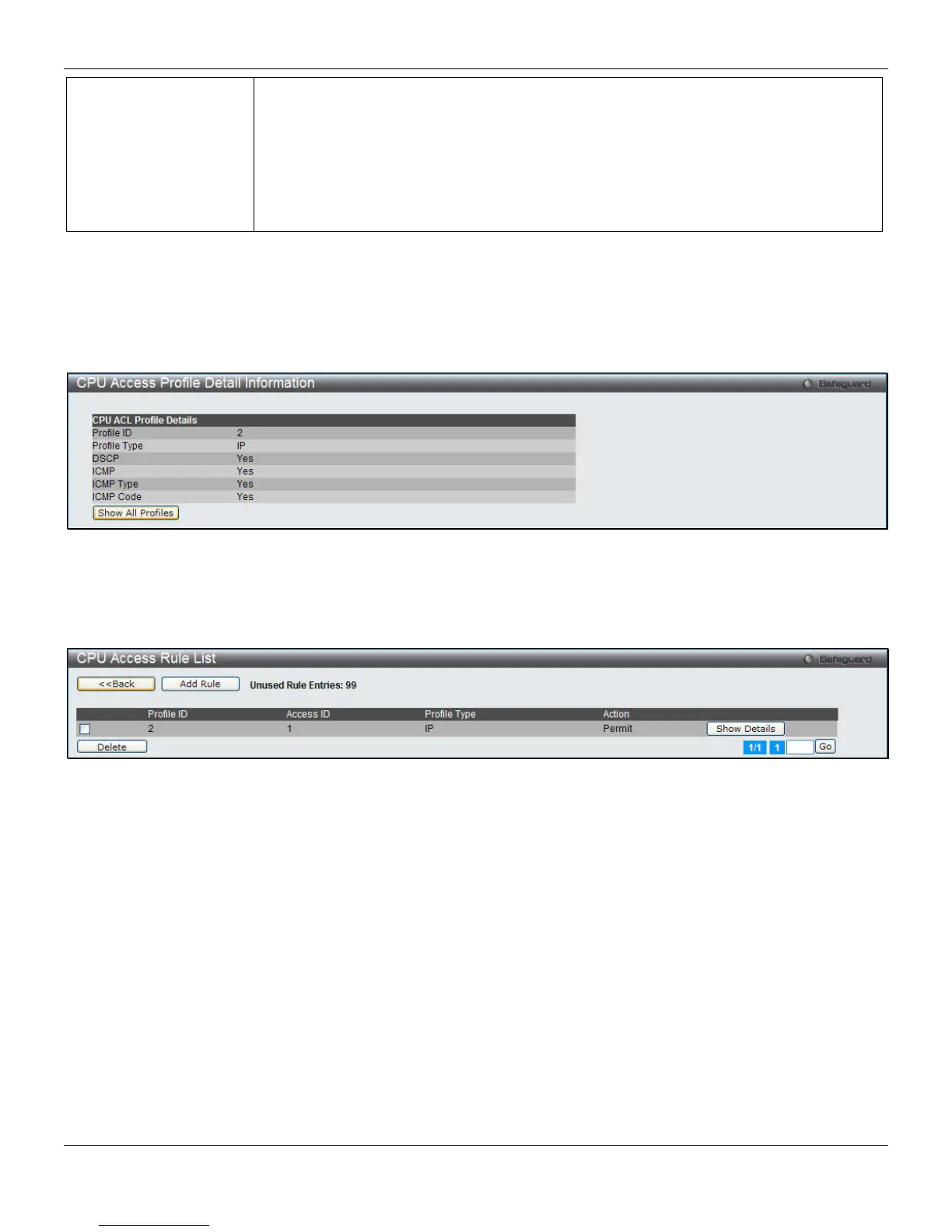

Figure 7-30 CPU Access Profile Detail Information (IPv4 ACL)
Click the Show All Profiles button to navigate back to the CPU ACL Profile List Page.
After clicking the Add/View Rules button, the following page will appear:
Figure 7-31 CPU Access Rule List (IPv4 ACL)
Click the Add Rule button to create a new CPU ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
190
