User's Manual
12

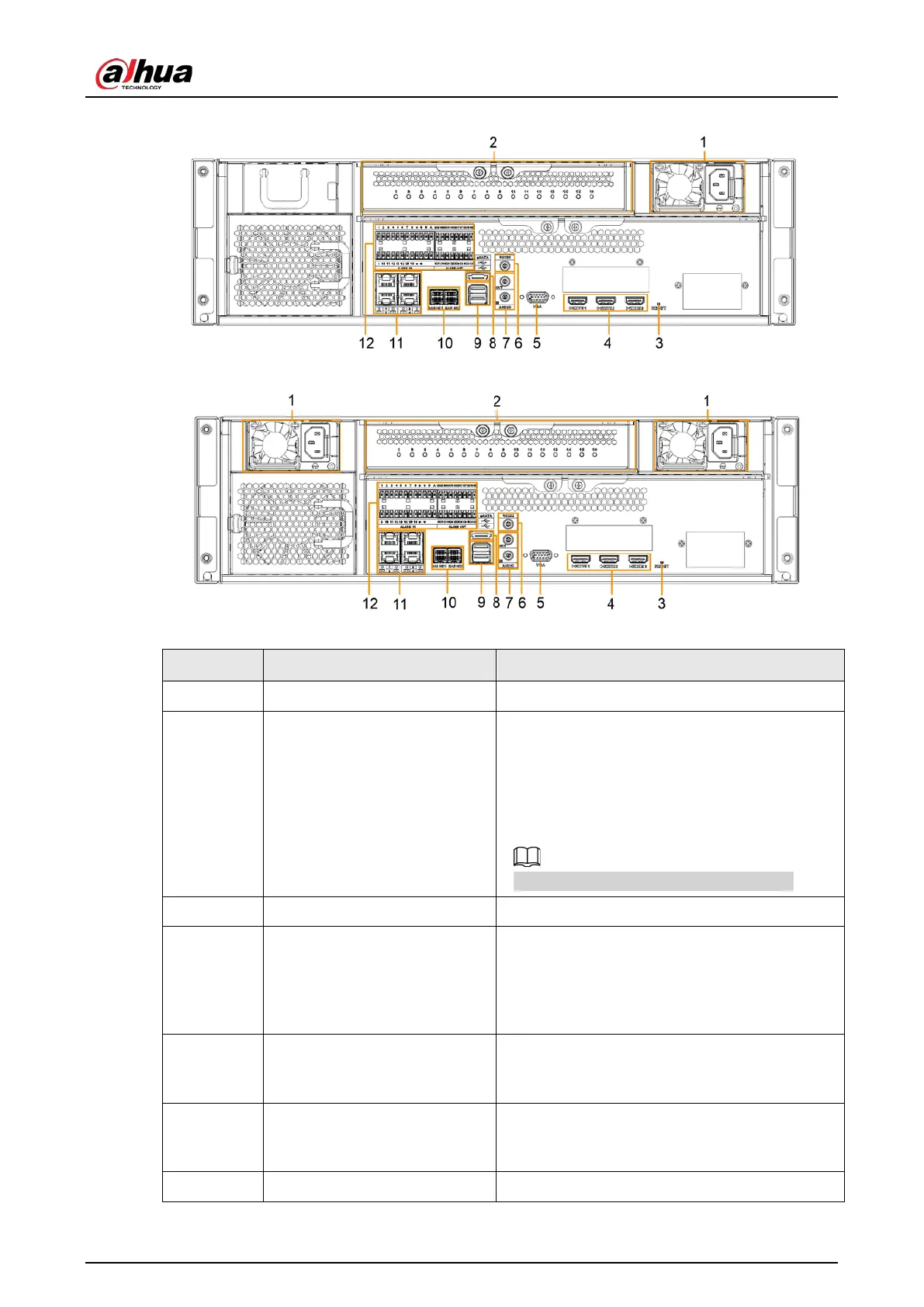

Figure 2-17 IVSS7016-M rear panel (single power)
Figure 2-18 IVSS7016-M rear panel (redundant power)
Table 2-6 IVSS7016 rear panel description
No.
Name
Description
1 Power input port Inputs 100-240 VAC power.
2 AI module indicator light
Displays AI module status.
The yellow light flashes: AI module is
running properly.
The yellow light is on: AI module is
malfunctioning.
This function is valid if there is AI module.
3 RESET button Reserved.
4 HDMI port
High definition audio and video signal output
port. The port outputs the uncompressed high
definition video and multi-channel audio data
to the connected display with HDMI port. The
three HDMI ports are different source output.
5 VGA port
VGA video output port. It outputs analog video
signal. The VGA port and HDMI 1 port are same
source output.
6 RS-232 port
RS-232 COM debug. It is used for general COM
debug, setting IP address, and transmitting
transparent COM data.
7 AUDIO IN Audio input port
