User's Manual
9
No.
Name
Description
15 Alarm input
16 groups (116) alarm input ports, they are
corresponding to ALARM 1ALARM 16. The alarm
becomes valid in low level.
A and B: Control the A/B cable of the RS485
device. It is used to connect to the PTZ camera.
Please parallel connect 120Ω between A/B cables if
there are too many PTZ decoders.
: GND end.
2.2.3 Dimensions

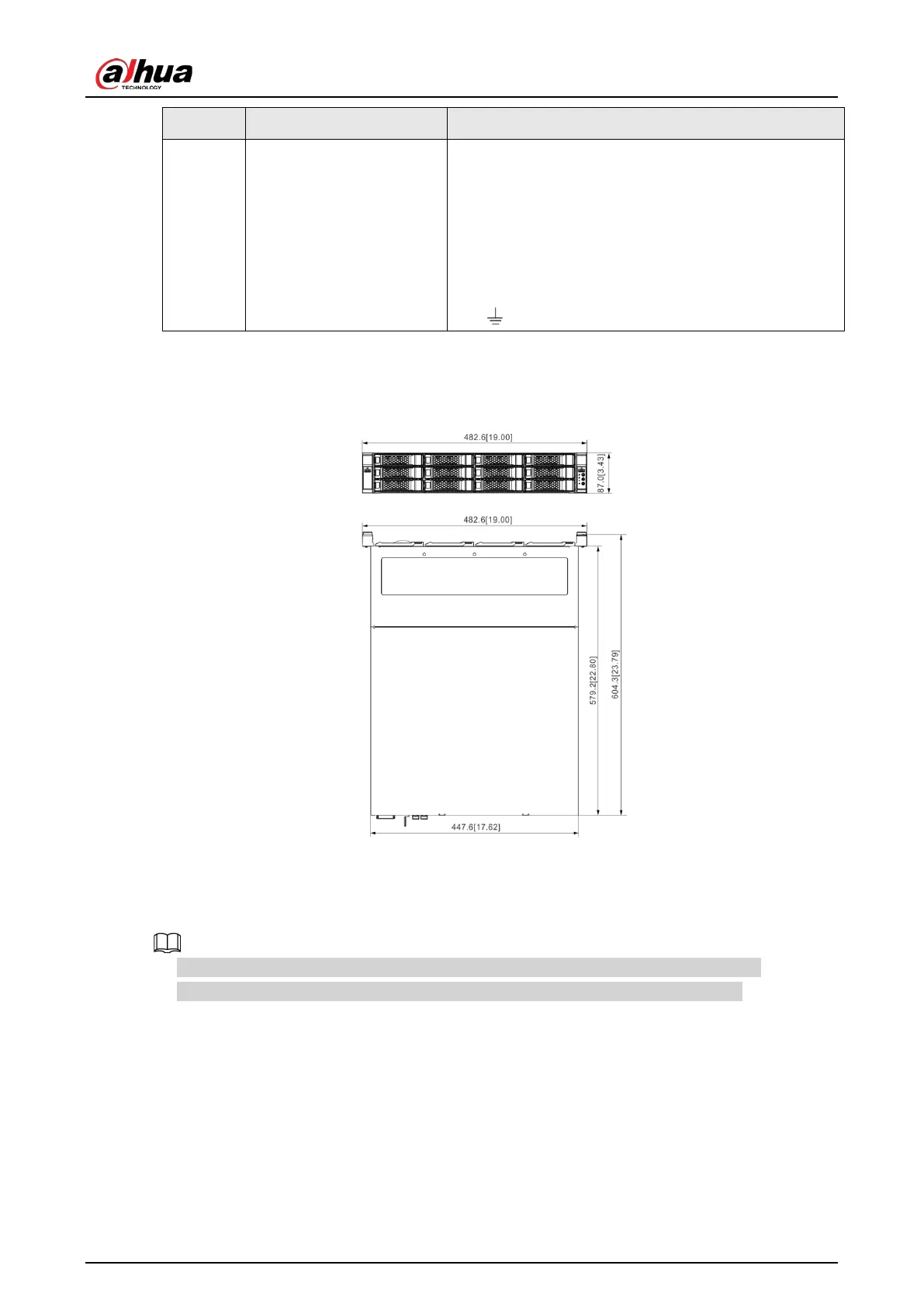

Figure 2-12 Dimensions (mm [inch])
2.3 16-HDD Series
The Device has an embedded display on select models. The actual Device shall prevail.
The Device has power redundancy on select models. The actual Device shall prevail.
