User's Manual
11
6 USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
7 16-HDD slot
After you remove the front panel, you can see there are 16
HDDs. From the left to the right and from the top to the
bottom, it ranges from 1–4, 5–8, 9–12, and 13–16.
There are two indicator lights on the HDD slot: HDD indicator
light and HDD read/write indicator light.
●
: HDD indicator light. The light is yellow after you install
the HDD.
●
: Read/write indicator light. The blue light flashes when it
is reading and writing data.
2.3.2 Rear Panel

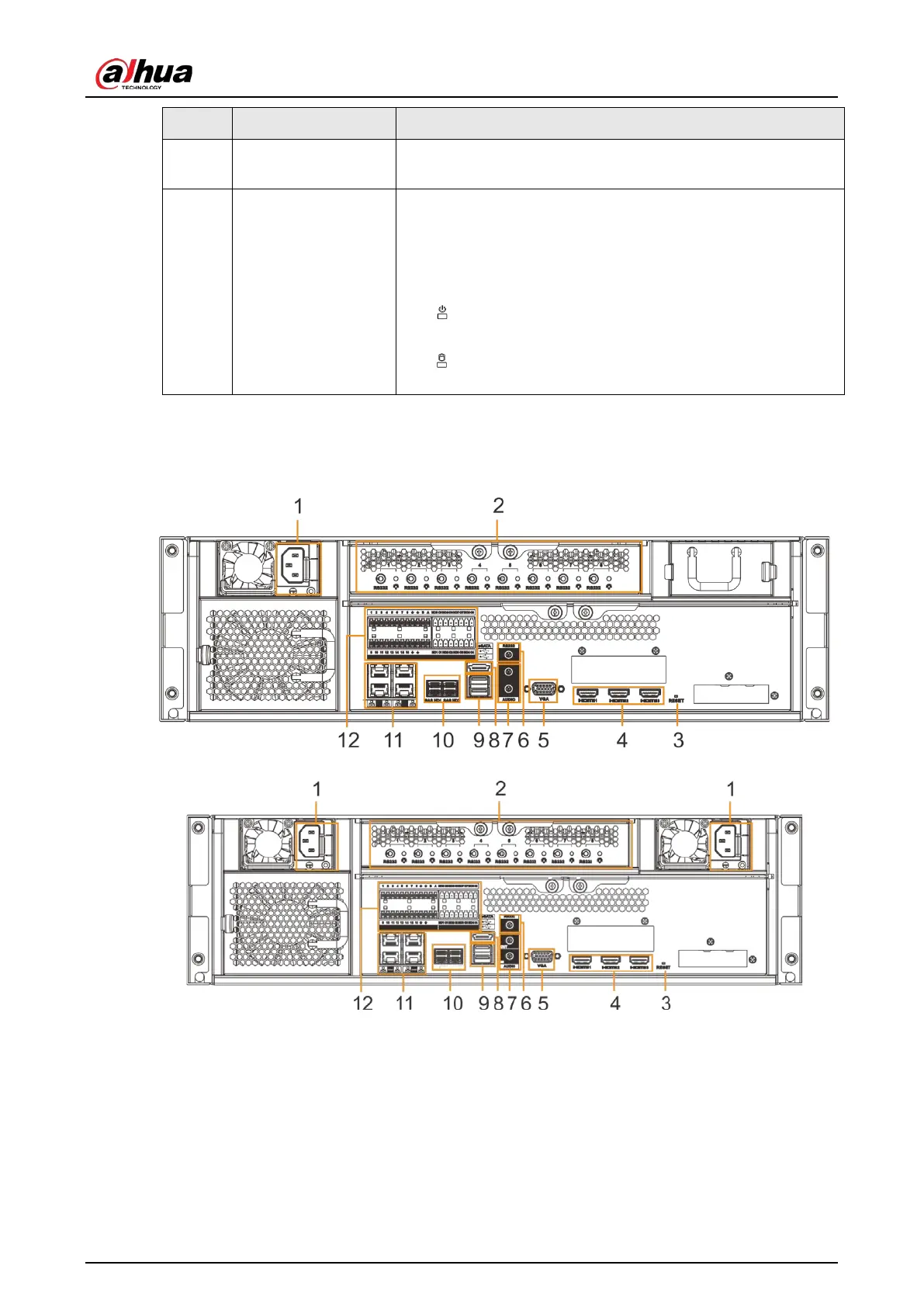

Figure 2-15 IVSS7016 rear panel (single power)
Figure 2-16 IVSS7016 rear panel (redundant power)
