User's Manual
14

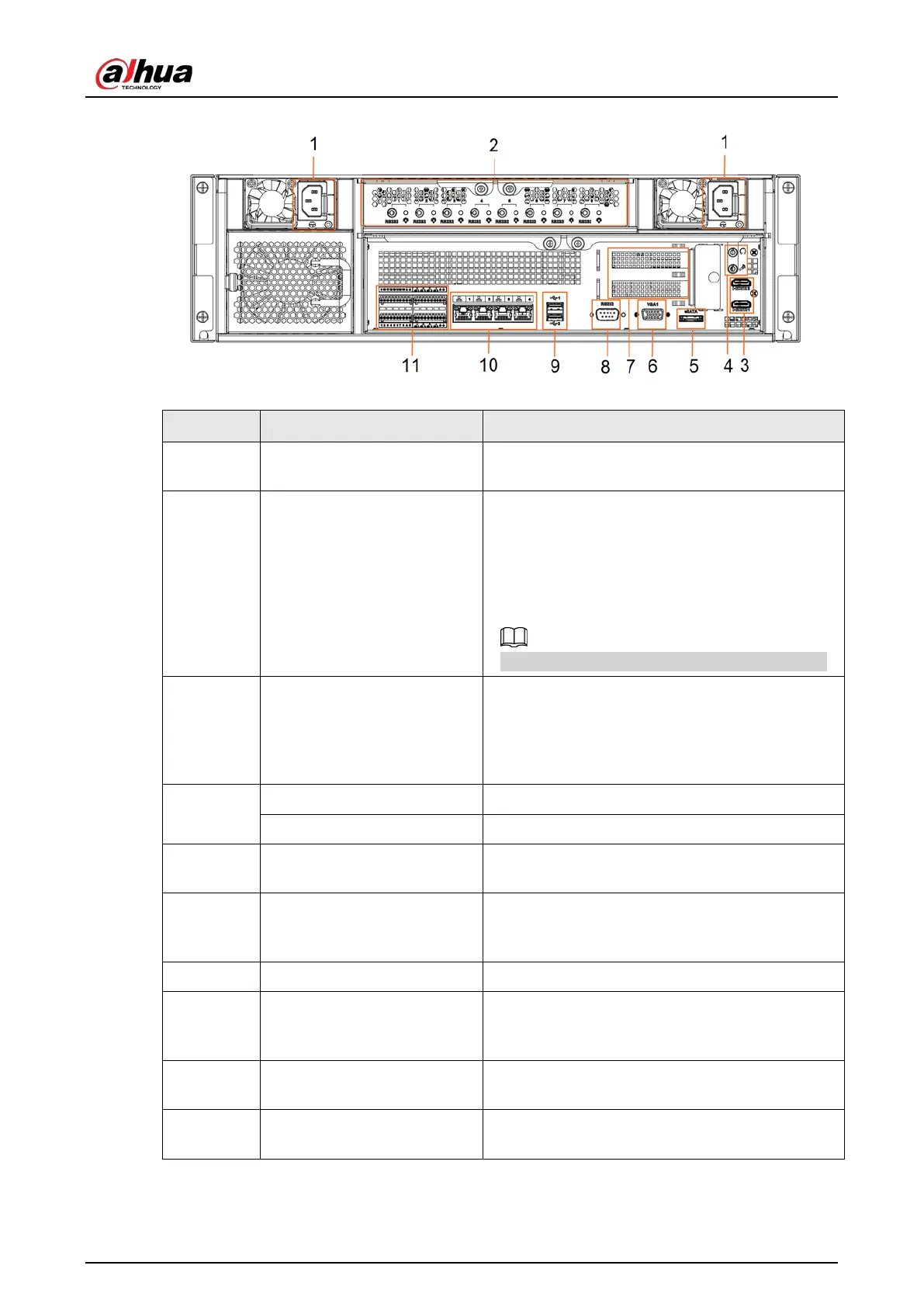

Figure 2-20 IVSS7116 rear panel (redundant power)
Table 2-7 IVSS7116 rear panel description
1 Power input port
Inputs 100-127 VAC/200-240 VAC power. Some
devices only have one power port.
2 AI module indicator light
Displays AI module status.
●
The yellow light flashes: AI module is running
properly.
●
The yellow light is on: AI module is
malfunctioning.
This function is not available without AI module.
3 HDMI port
High definition audio and video signal output
port. The port outputs the uncompressed high
definition video and multi-channel audio data to
the connected display with HDMI port. The two
HDMI ports are different source output.
4
AUDIO IN Audio input port
AUDIO OUT Audio output port
5 eSATA port
SATA peripheral port. Connects to SATA port or
eSATA device.
6 VGA port
VGA video output port. It outputs analog video
signal. The VGA port and HDMI 1 port are same
source output.
7 PCI-E X4 PCI Express port. It supports X4 slot.
8 RS-232 port
RS-232 COM debug. It is used for general COM
debug, setting IP address, and transmitting
transparent COM data.
9 USB port
Connects to external devices such as USB storage
device, keyboard and mouse.
10 Network port
10/100/1000 Mbps self-adaptive Ethernet port.
Connects to the network cable.
