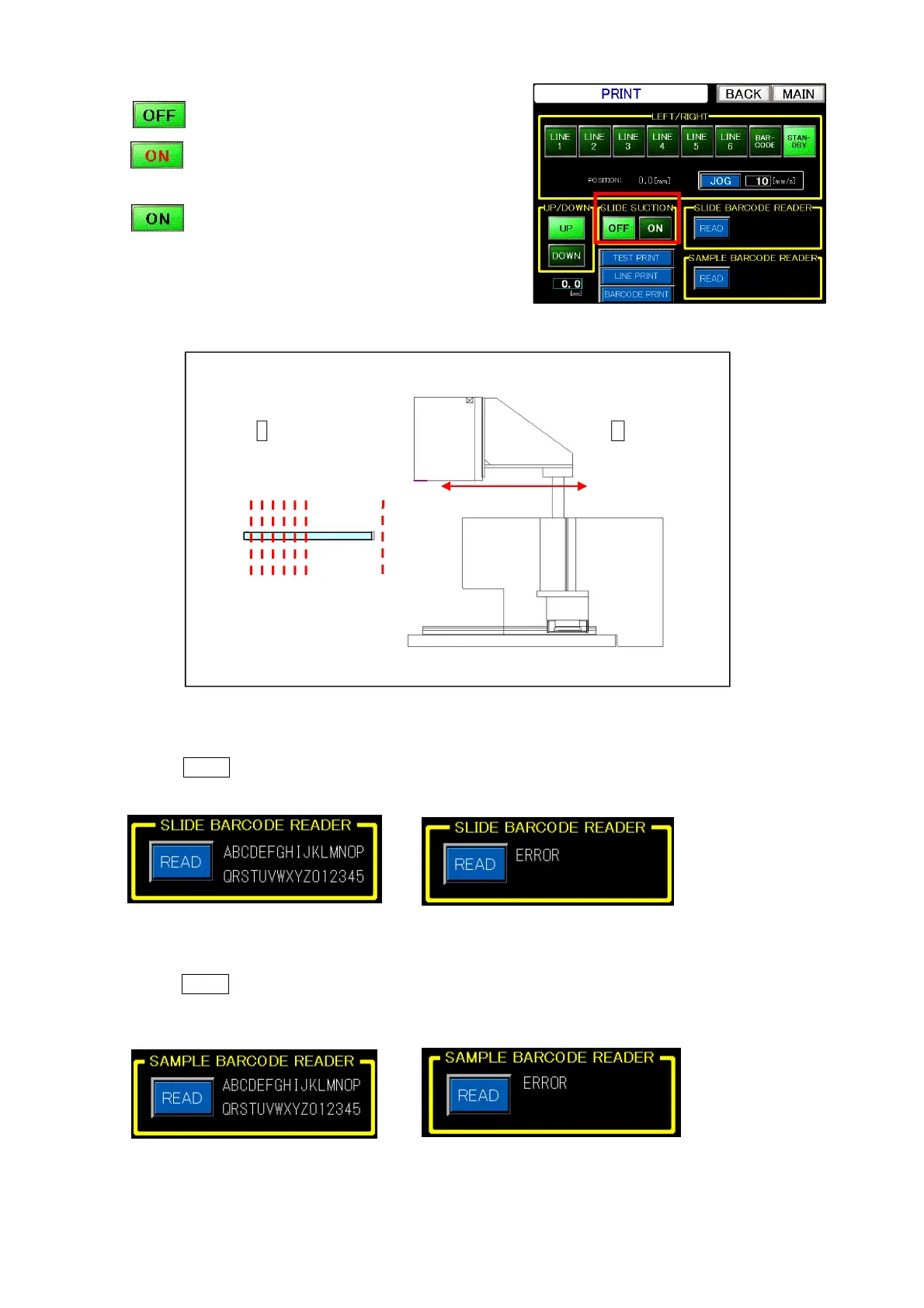

Chapter 4 - Operational Procedures -
AS-410M Auto Slide Preparation System
179
< Slide Suction >
：Indicates that slide suction is OFF.
：(Red) Indicates that both slide suction
and vacuum detection are ON.
：(Black) Indicates that both slide suction
Is ON while vacuum detection is OFF.
① Slide-barcode reader
Touch READ to run the Slide-barcode reader and view the scanning result (up to 32 characters).
In the case of a scanning error, the following message will appear on the screen.
② Sample-barcode reader (displayed only when the reader option is enabled)
Touch READ to run the Sample-barcode reader and view the scanning result (up to 32 characters).
In the case of a scanning error, the following message will appear on the screen.
② to ⑦
①
Printer
L
R
Scanning error
Scanning error
Operating principle of printer
Print screen (Slide suction
)
To Next Page
