Chapter 2 -Installation
38
AS-410M Auto Slide Preparation System

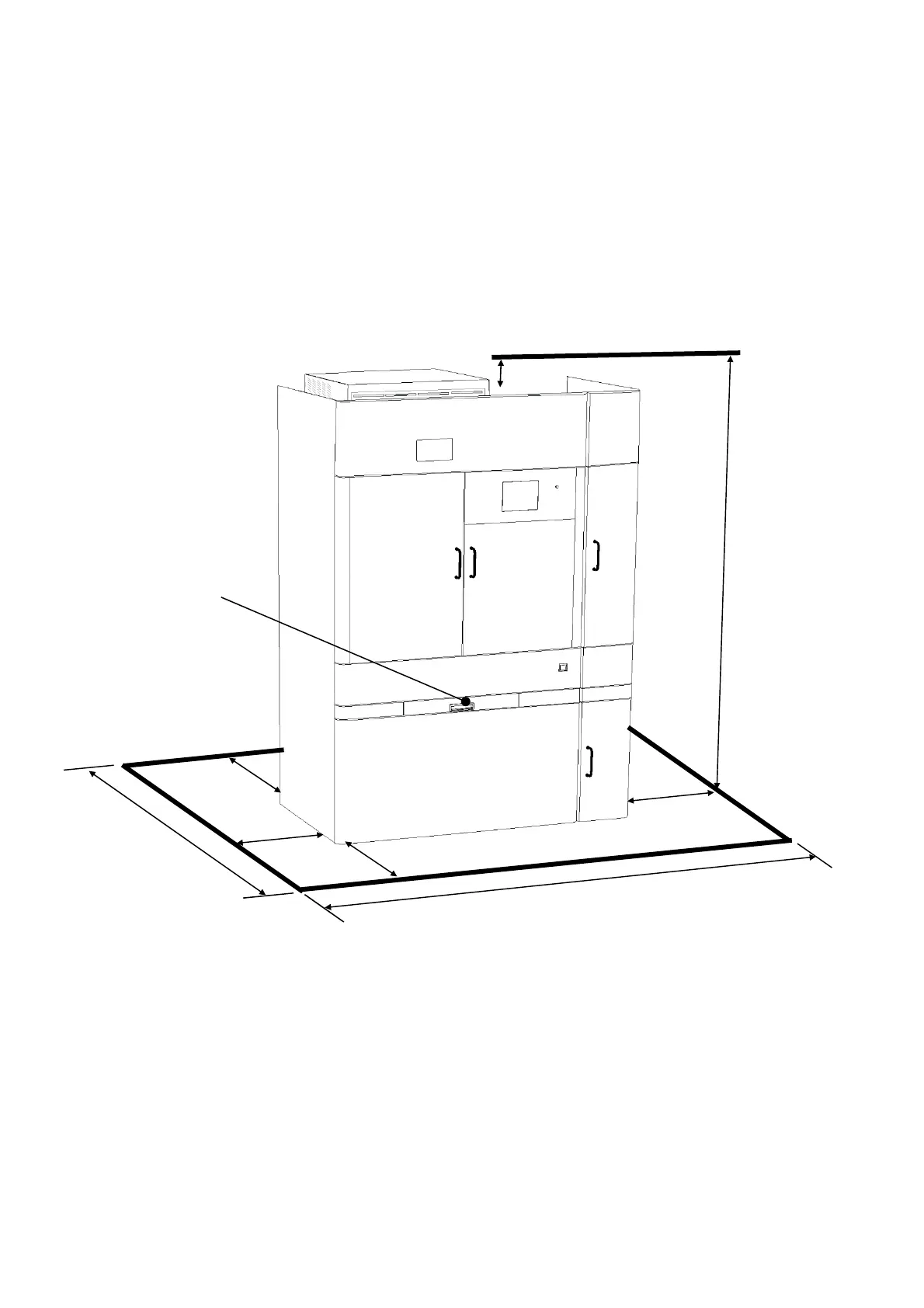

● Follow the instructions below and provide sufficient installation space.
System1: Main Unit with 100-slide dry chamber unit option
Required installation space = 2,180
mm W ×
1,600
mm D ×
2,030 mm H
* In this configuration, the System weighs approx. 800 kg.
* Ensure that the System’s center of gravity in the depth direction will be positioned near the center of
the installation space.
Center of
gravity
４５０ｍｍ
４５０ｍｍ
４５０ｍｍ
５０ｍｍ
４５０ｍｍ
２,１８０ｍｍ
１,６００ｍｍ
２，０３０ｍｍ
