Chapter 3 - Preoperational Setup -
AS-410M Auto Slide Preparation System
51
< System with 96-sample feeding option (BS-96) >
The 96-sample feeding unit is built to accommodate four supplied 24-sample trays (onto four
shelves). The four 24-sample trays (detachable) have Nos. 1 to 24, Nos. 25 to 48, Nos. 49 to 72,
and Nos. 73 to 96 indicated on them. Samples will be processed in order of their position numbers
from “1” to “96.”
Set samples in the 24-sample trays. Then, follow the steps on the next page to set the tray with
Nos. 1 to 24 onto the top shelf, one with Nos. 25 to 48 onto the second shelf, one with Nos. 49 to 72
onto the third shelf, and one with Nos. 73 to 96 onto the bottom shelf. Processing starts from sample
No. 1 on the near right corner of the top tray and ends with sample No. 96 set on the far-left corner
of the bottom tray.

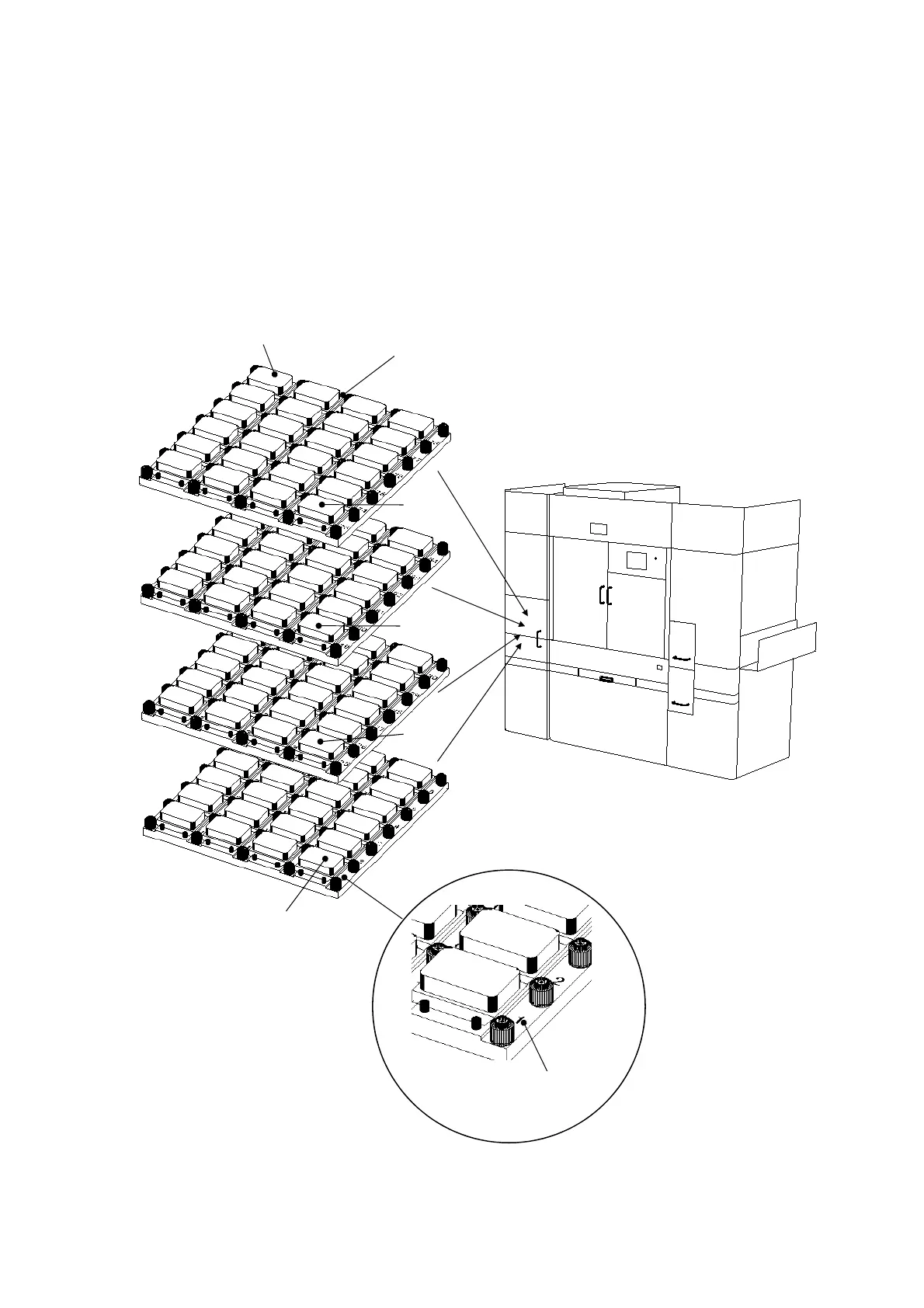

24-sample trays
*Detachable
1 to 24
25 to 48
73 to 96
49 to 72
Sample position Nos.
No. 1
Sample position No. 24
No. 73
No. 2
No. 49
To Next Page
