Installing Options 333
10
10
10
10
10
10
10
10
10
10
10
10
Note:
When adding an expansion memory module, normally install it into
slot 3. However, when you increase memory using two expansion
memory slots (slot 2 and slot 3), you have to remove the original 64
MB DIMM from slot 2 first, and then install two optional DIMMs.

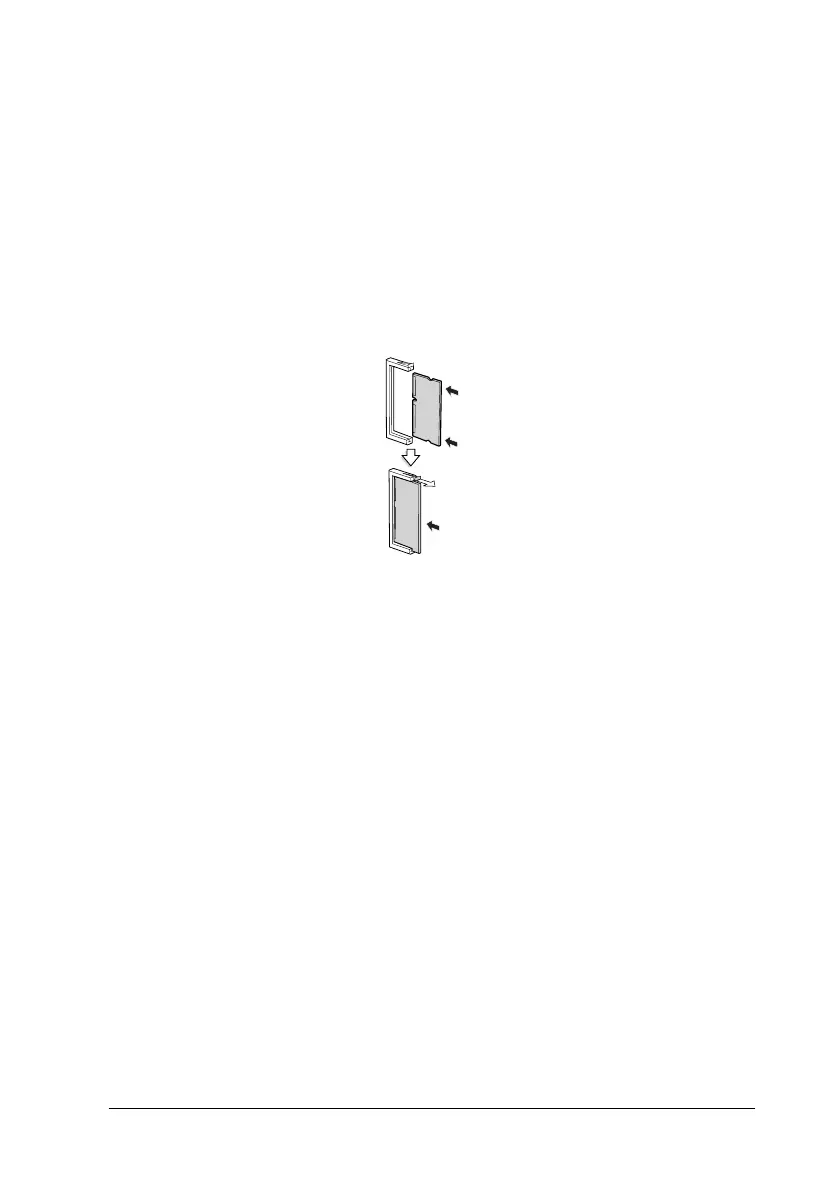

4. Insert the memory module into slot until the clip locks onto
the memory module. Make sure that the upper slot (white)
has a module at all times.
c
Caution:
❏ Do not force the memory module into the slot.
❏ Be sure to insert the memory module facing the correct
way.
❏ You should not remove any modules from the circuit
board. Otherwise, the product will not work.
