44 Eos Family v2.9.0 Operations Manual

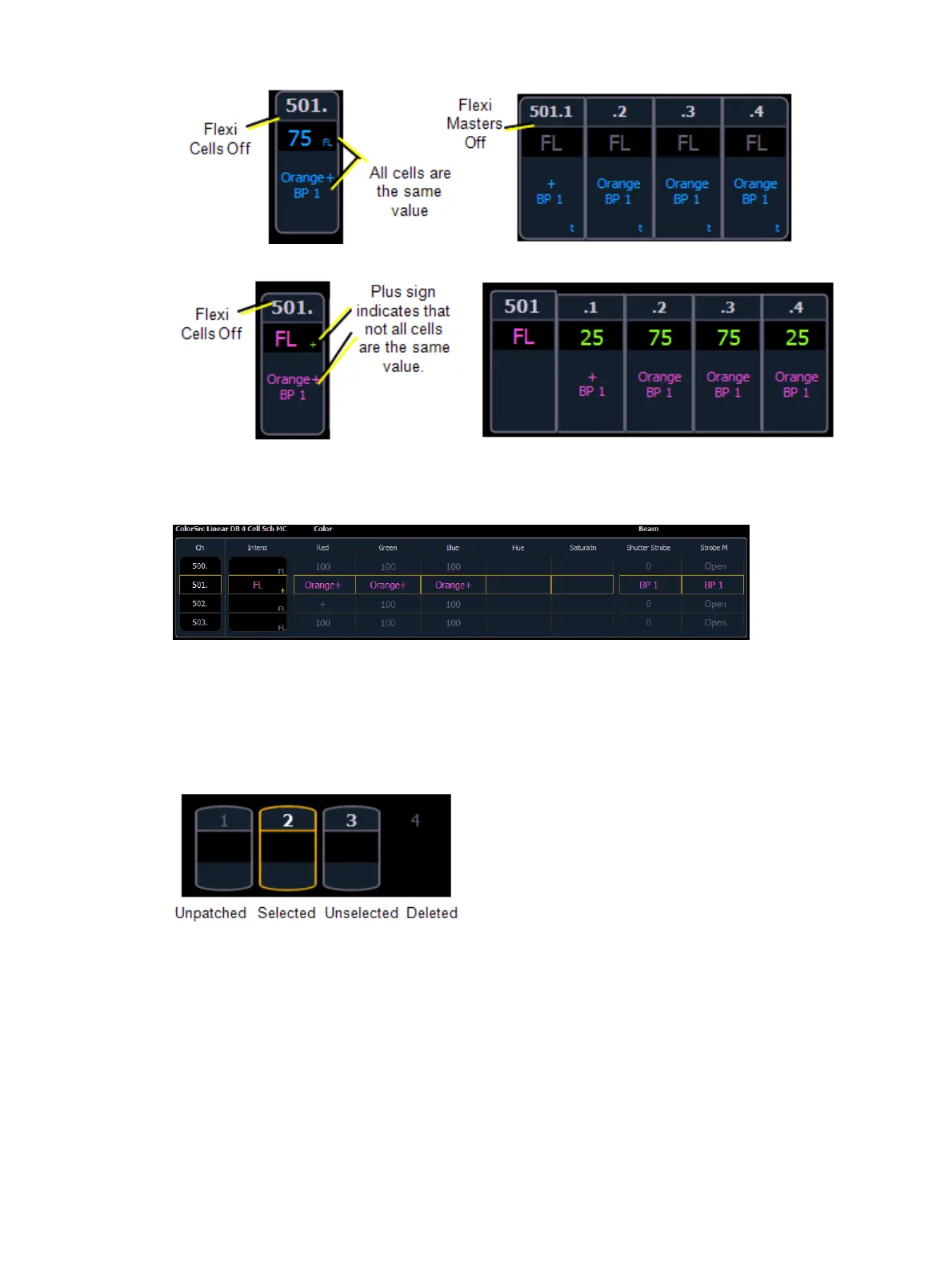

When using Flexi Cells off in table view, plus signs are also used to indicate a difference in the
cells.
Color Indicators
Element uses color to indicate the selection state and information about channel/parameter
levels.
Channel Numbers/ Channel Headers
Gray number Unpatched channel number.
White number Selected channel number.
Bright White number Channel is parked.
Gold number Channel is captured.
Gold outline Selected channel.
Number with no graphic Deleted channel.
