FLIR D3200 Series User Manual

3
D3332
1098765321
4
(32-Channel)

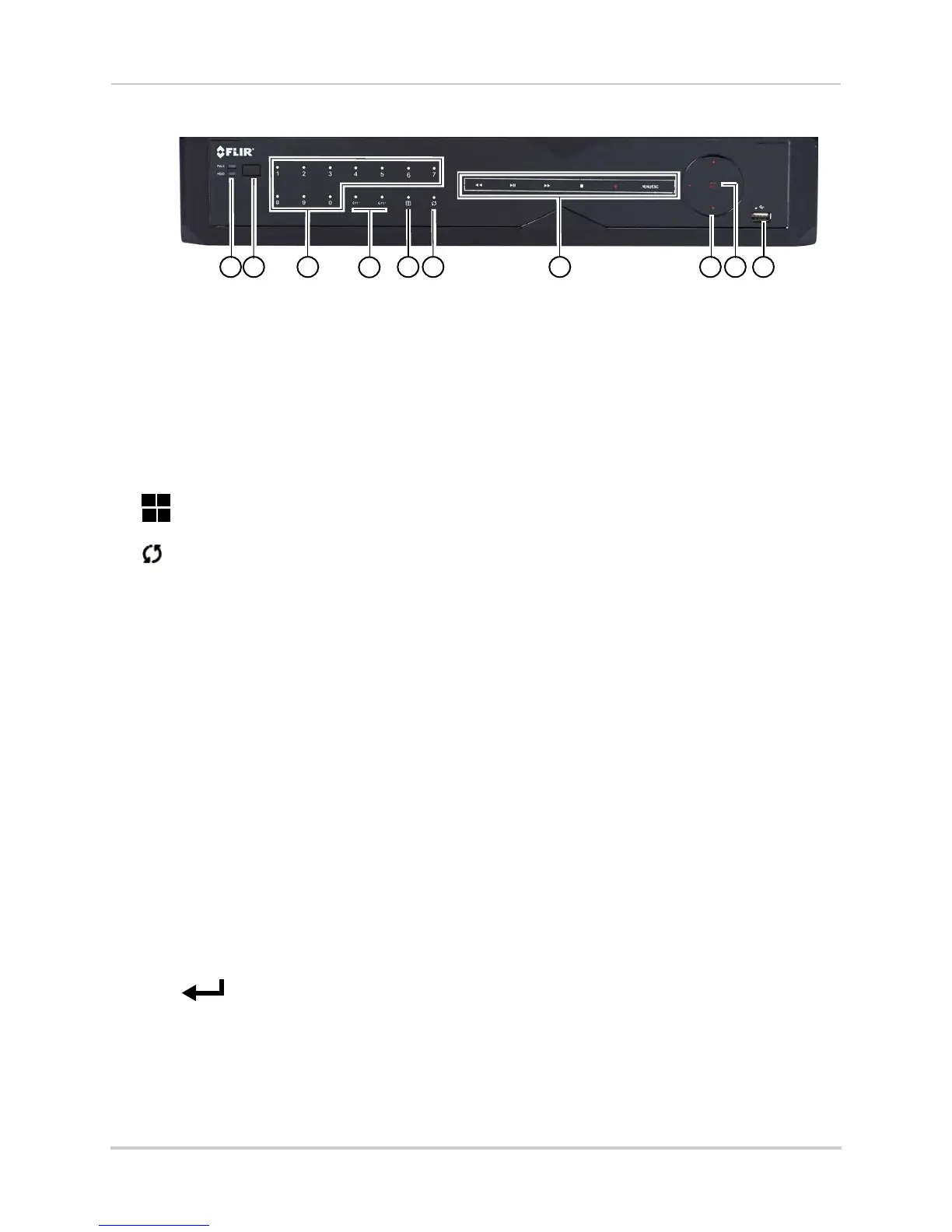

1 LED Indicators:
• PWR: Power LED.
•
HDD: Hard disk activity LED.
2 IR Sensor:
IR rec
eiver for the remote control.
3 Ch1 ~ Ch0: Pres
s to view channel in Full-screen View. To access channels 10 and greater:
Press 0 for channel 10 or 1+0 for channel 10, 1+1 for channel 11, 1+2 for channel 12, etc.
4 CH-/CH+: Pres
s to select previous/next channel.
5
: Press to open split-screen view. Press multiple times to select split-screen mode.
6
: Press to start/stop Sequence Mode.
7 Menu & Playback Controls
:
•
: In Playback Mode, press to rewind. Press repeatedly to increase rewind speed.
•
: In Playback Mode, press to play / pause video.
• In Viewing mode, press to open Search Menu to select playback time.
• : In Playback Mode, press to fast forward. Press repeatedly to increase fast forward speed.
• : In Playback Mode, pres
s to stop video playback.
• In Live Viewing Mode, press to stop DVR recording. Password required; does not override
scheduled r
ecording.
• : Press to stop / resume recording. When the channel displays a red box with the letter "C",
the channel is r
ecording.
• Menu / Esc: Opens the syst
em menu. In menus, press to go back / exit menus.
8 Navigation Buttons:
•
: Press to move cursor up.
•
: Press to move cursor down.
•
: Press to move cursor left.
•
: Press to move cursor right.
9 PTZ/
:
• Within system menus: Pr
ess to confirm a selection.
• To open the System Information window: In Liv
e Viewing mode, press once.
• To open PTZ Controls: In Liv
e Viewing Mode, press once and release then press and hold.
• USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data backup
or firmwar
e updates.

FLIR D3200 Series Specifications

General

Brand	FLIR
Model	D3200 Series
Category	DVR
Language	English
