Rear Panel
D3304 (4-Channel)
1
2 3 4 5
6
7
9 10
8
11
12
13
14
D3308 (8-Channel)
1
2
3 4 5
6
7
9 10
8
11
12
13
14

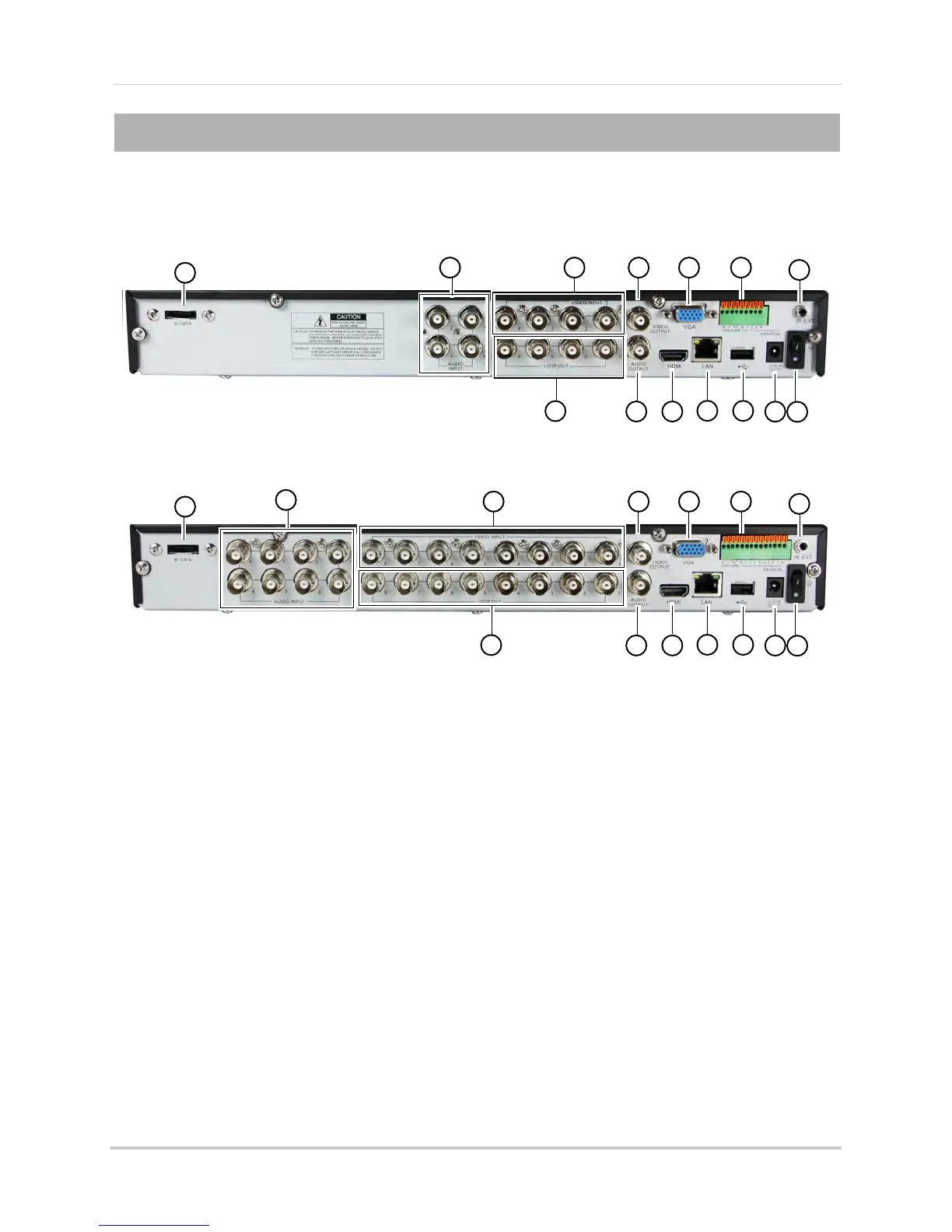

1 eSATA: Connect a self-powered eSATA external hard drive (not included) for data backup.
2 Audio Input: BNC inputs for audio-enabled cameras (not included) or self-powered
microphones (not included).
3 Video Input: Connect BNC camer
as.
4 Video Output: BNC output for e
xternal monitor.
5 VGA: Connect a VG
A monitor (not included) to view the system interface.
6 PTZ / Alarm Block
: Connect compatible PTZ cameras (not included) or alarm devices (not
included).
7 IR-EXT: Service onl
y; not supported.
8 Loop Out: BNC outputs to c
onnect each channel to a Loop Out monitor.
9 Audio Output: BNC output for 1 audio channel (e.g. speak
ers).
10 HDMI: Connect to a HDMI-c
ompatible TV or monitor (not included) to view the system
interface.
11 LAN: Connect a CA
T 5 RJ45 Ethernet cable for local and remote connectivity.
