12 USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data backup
or firmware updates.
13 DC12V: Connect the included AC po
wer adapter.
14 On / Off Switch: Turns the D
VR on or off.

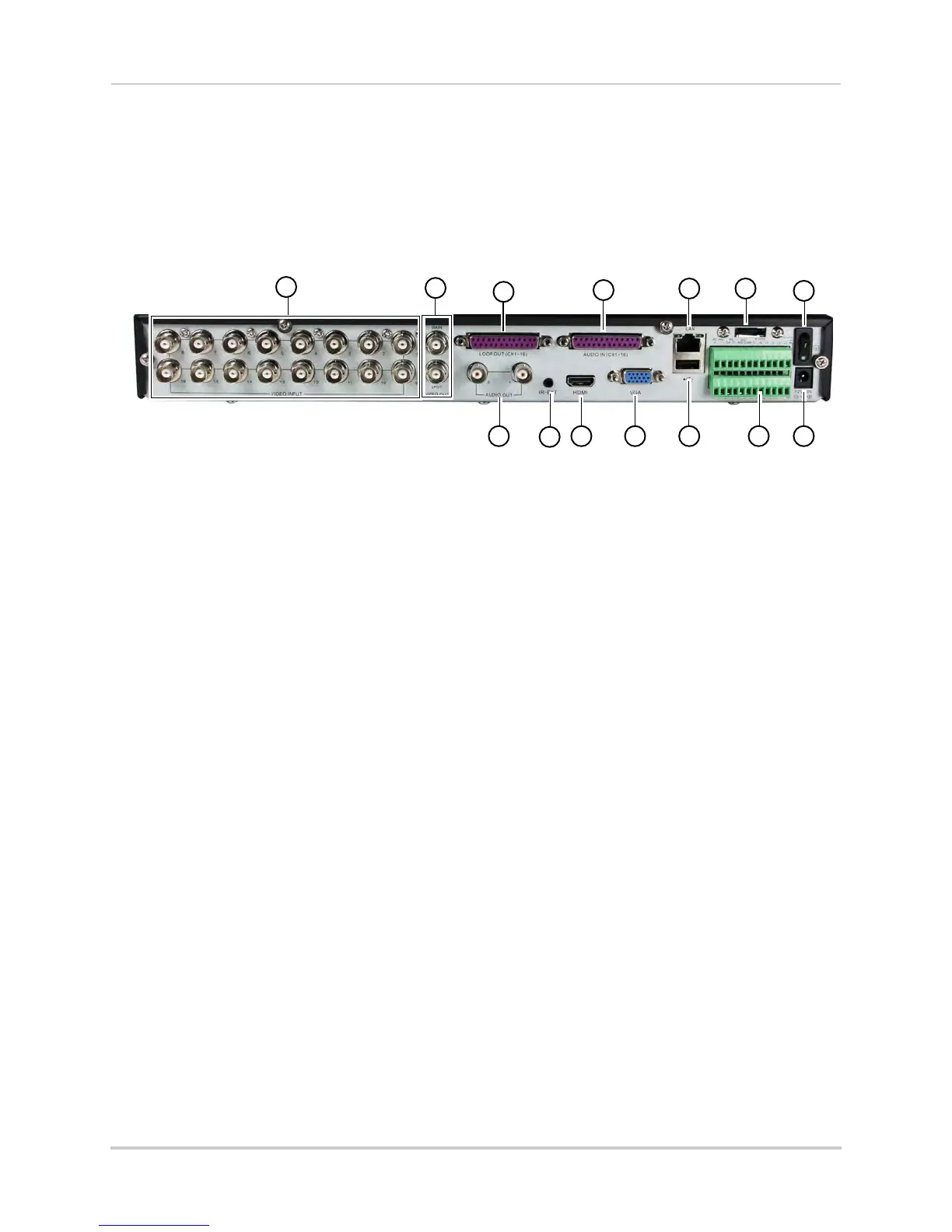

D3316 (16-Channel)
1
2
5
6
7
10 11 12 13 14
3
4
8
9
1 Video Input: Connect BNC cameras.
2 Video Out: BNC outputs for external or spot monitors.
3 Loop Out (CH1~16): Connect included Octopus c
able to connect channels to Loop Out
monitors.
4 Audio In (CH1~16): Connect included Octopus c
able to connect audio-enabled cameras (not
included) or self-powered microphones (not included).
5 LAN: Connect a CA
T 5 RJ45 Ethernet cable for local and remote connectivity.
6 eSATA: Connect a self-powered eSATA external hard drive (not included) for data backup.
7 On / Off Switch: Turns the D
VR on or off.
8 Audio Out: BNC output for 2 audio channels (e.g. speak
ers).
9 IR-EXT: Service onl
y; not supported.
10 HDMI: Connect to a HDMI-c
ompatible TV or monitor (not included) to view the system
interface.
11 VGA: Connect a VG
A monitor (not included) to view the system interface.
12 USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data backup
or firmwar
e updates.
13 PTZ / Alarm Block: Connect c
ompatible PTZ cameras (not included) or alarm devices (not
included).
14 DC12V: Connect the included AC po
wer adapter.
