FLIR D3200 Series User Manual

156
Appendix E: Replacing the Hard Drive
and remove the hard drive from the bracket. Replace the hard drive bracket and hard drive
bracket screws.

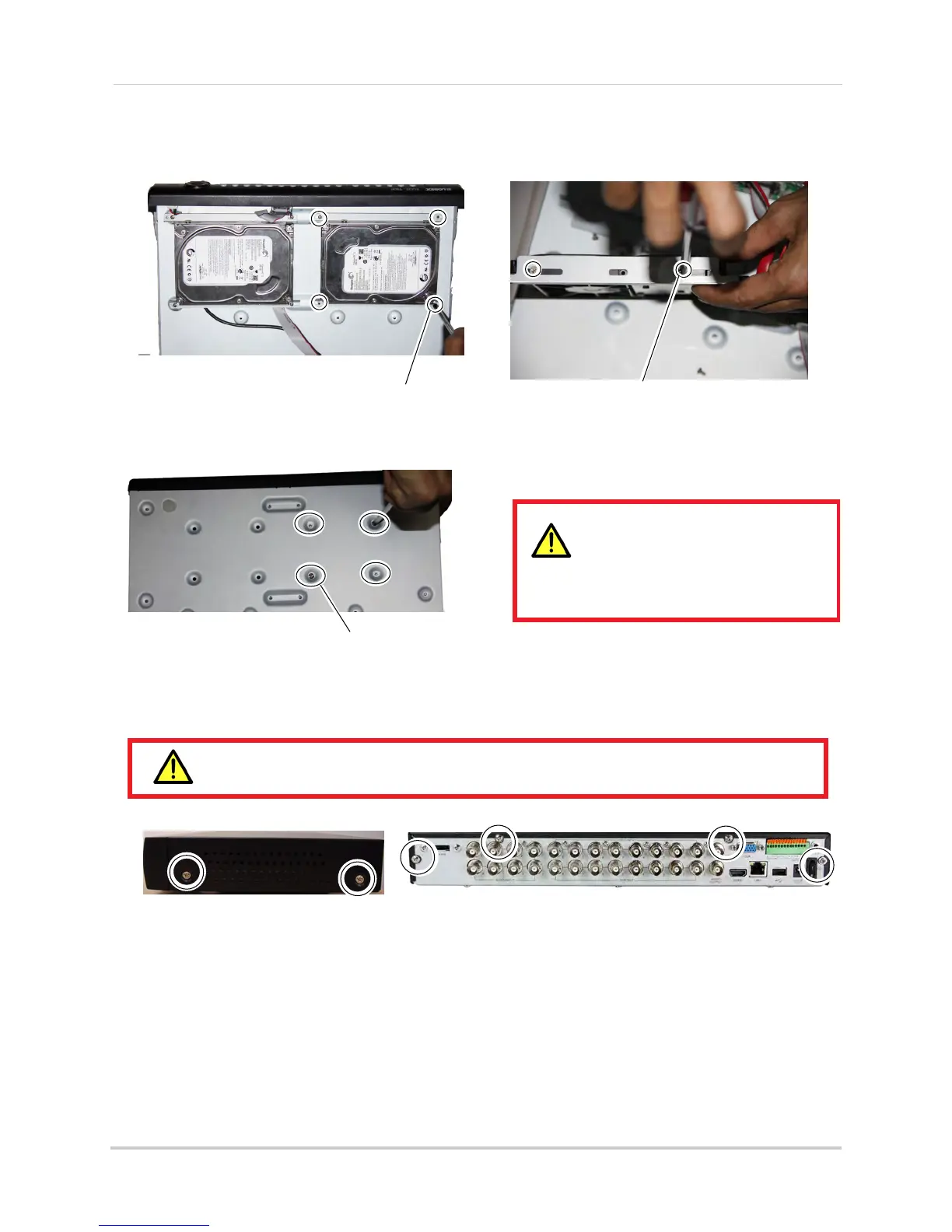

Remove hard drive bracket
Remove the hard drive screws
• If your system has a 2.5" hard drive, turn the DVR over carefully. Hold the hard drive in place
and remove the 4 screws securing the hard drive. Keep holding the hard drive and turn the
DVR back over. Remove the hard drive from the DVR.
Remove the hard drive screws
Make sure to hold the hard
drive in place while
removing the hard drive
screws and turning the DVR
to avoid damaging the DVR.
5 Replace the DVR cover.
Installing the Hard Drive
Make sure that the power cable has been disconnected before changing the
hard drive.
1 Remove the screws from each side panel (x2) and rear panel (x4) of the cover.
2 Gently slide the cover away from the rear panel and lift off. Be careful of sharp edges.
3 Next, install the hard drive:
• If ins
talling a 3.5" hard drive, remove the 4 screws holding the hard drive bracket and remove
the brack
et from the DVR. Place the hard drive in the bracket and insert 4 screws to secure
