143

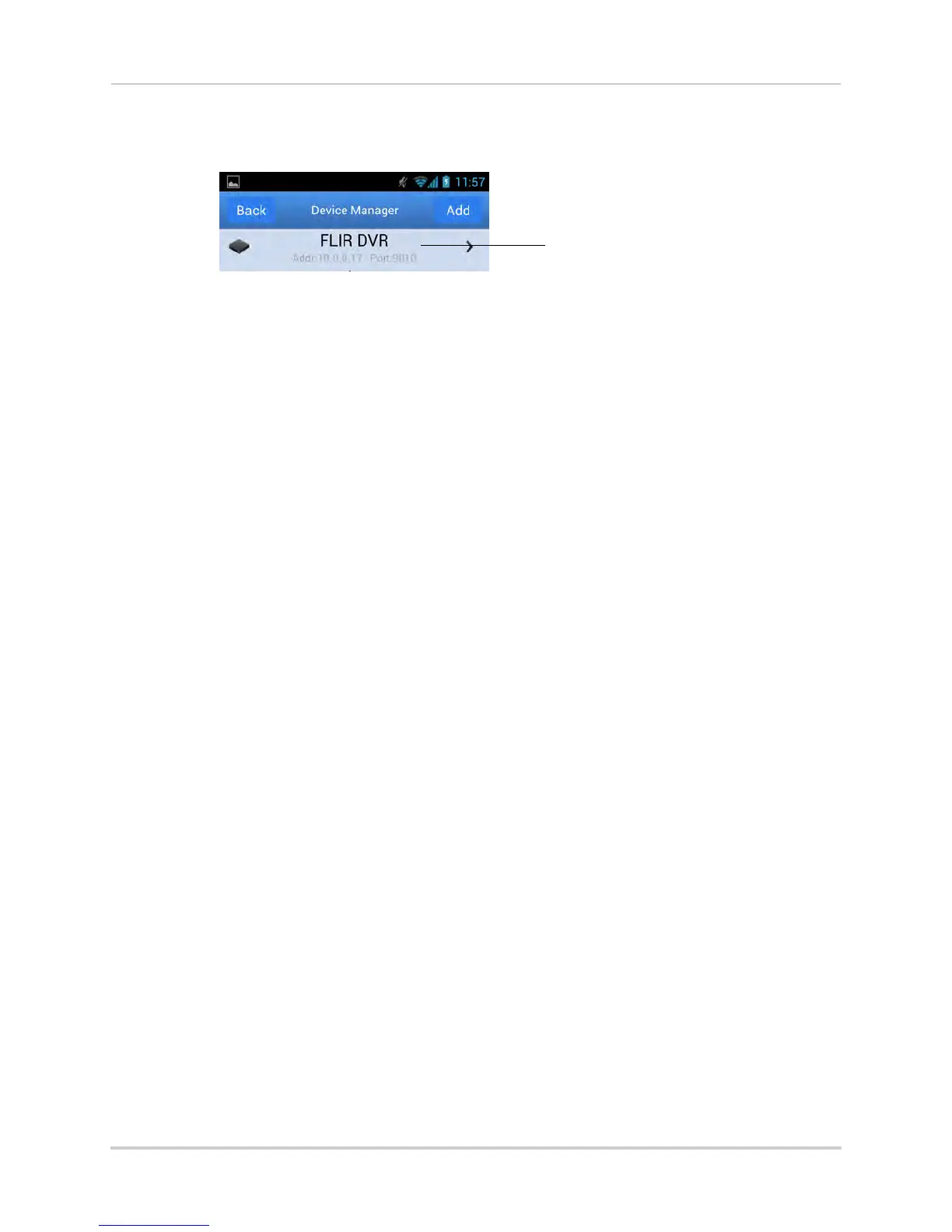

Mobile Apps: Accessing your DVR Using a Mobile Device
2
Pr
ess and hold on DVR you w
ould lik
e to del
ete and then tap
Del
ete
.
Pr
ess and hold t
o del
ete
To modify a DVR:
1
F
r
om the Main Menu, tap
Devic
e Manager
.
2
T
ap on the DVR you w
ould lik
e to modify
.
3
Change the connection det
ails as needed and then tap
Save
.
