M3-44 031914
U10 Servo Drive:
Axis X1 sends power voltage to the
M10 #1 Upper Infeed Motor on the
W15-3K Power Cable.
Axis X2 sends power voltage to the
M11 Lower Infeed Servo Motor on the
W17-3K Power Cable.
U11 Servo Drive:
Axis X1 sends power voltage to the
M12 #2 Upper Infeed Conveyor Servo
Motor on the W19-3K Power Cable.
Axis X2 sends power voltage to the
M13 #2 Lower Infeed Conveyor Servo
Motor on the W21-3K Power Cable.
U12 Servo Drive:
Axis X1 sends power voltage to the
M14 #3 Upper Infeed Conveyor Servo
Motor on the W31 Power Cable.
Axis X2 sends power voltage to the
M15 #3 Lower Infeed Conveyor Servo
Motor on the W26-3K Power Cable.

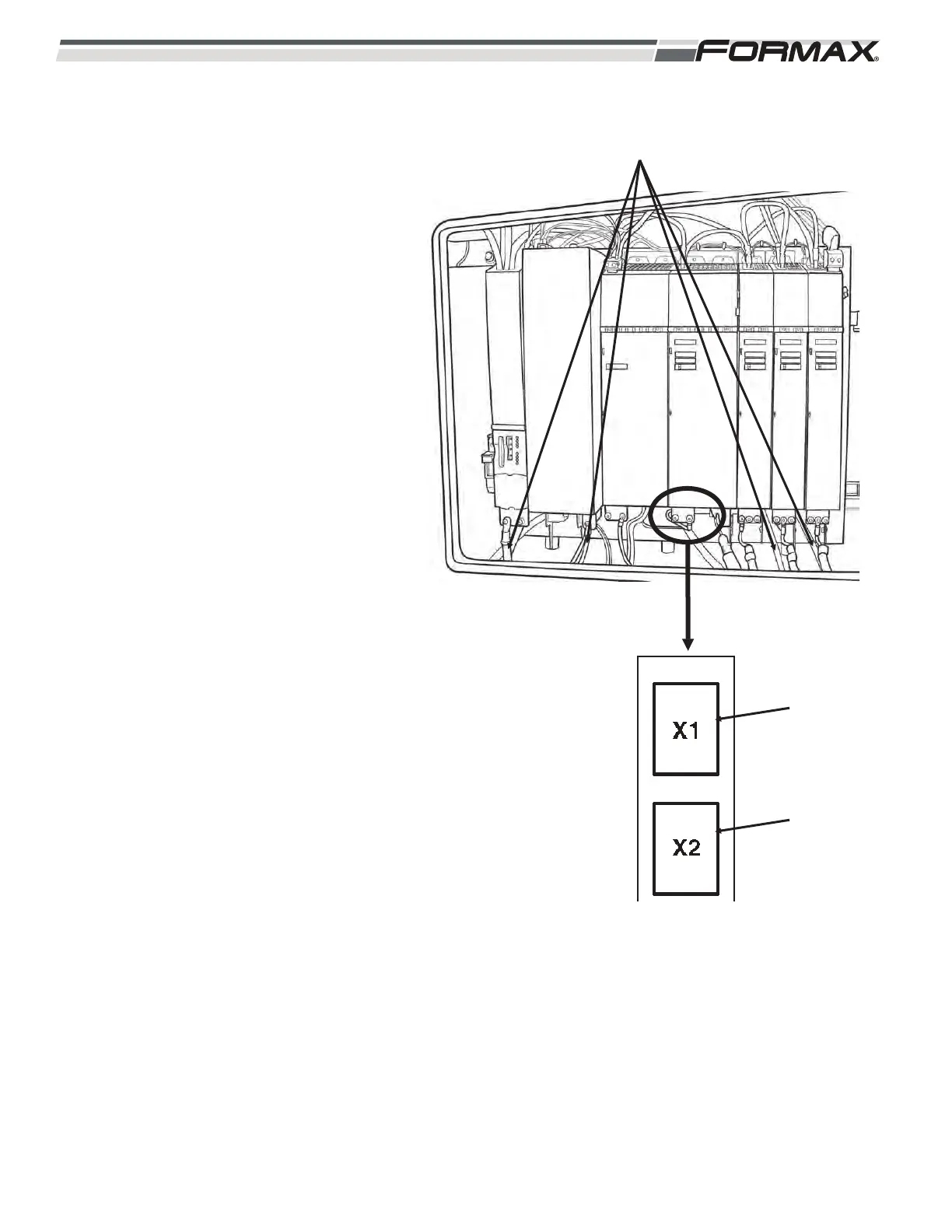

ILLUSTRATION 60
SERVO MOTOR
POWER CABLES
FRONT
AXIS
REAR
AXIS
To Next Page
