Formax PowerMax 3000 - Page 265

031914 M3-49
U13 Converter Module:
X524 Port: 24 VDC Control Voltage.
X500 Port: Feedback cable running to
Port X203 on the U10 Servo Drive.
Feedback Port: Resolver Feedback
Cable coming from the M11 #1 Lower
Infeed Servo Motor.
U14 Converter Module:
X524 Port: 24 VDC Control Voltage.
X500 Port: Feedback cable running to
Port X504 on the U11 Servo Drive.
Feedback Port: Resolver Feedback
Cable coming from the M13 #2 Lower
Infeed Servo Motor.
U15 Converter Module:
X524 Port: 24 VDC Control Voltage.
X500 Port: Feedback cable running to
Port X503 on the U12 Servo Drive.
Feedback Port: Resolver Feedback
Cable coming from the M15 #3 Lower
Infeed Servo Motor.

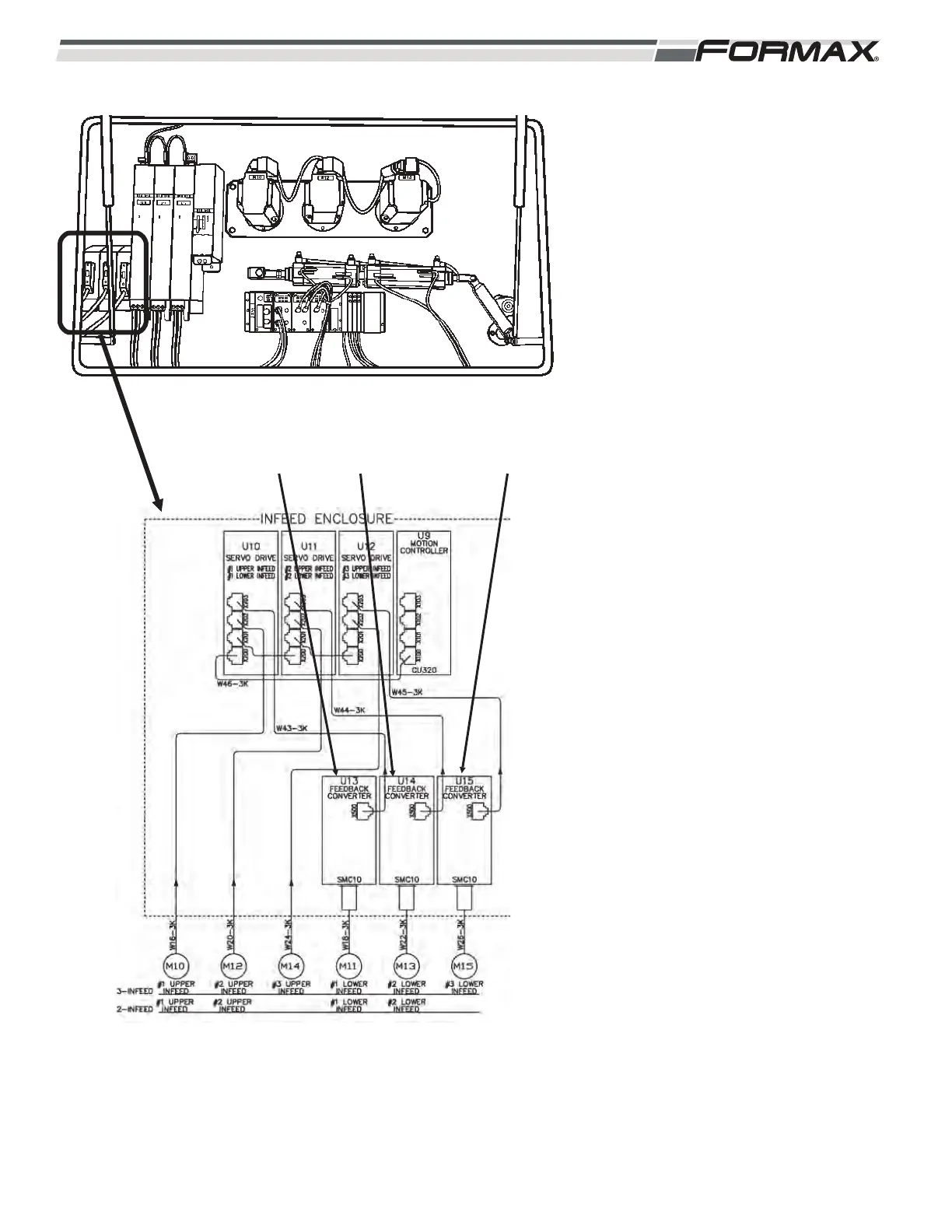

ILLUSTRATION 66
U14
FEEDBACK
CONVERTOR
U15
FEEDBACK
CONVERTOR
U13
FEEDBACK
CONVERTOR
