M4-46 031914
Safety Laser Scanner Input/ Output Terminals:
Terminal 5 - 24 VDC “Reset” Input signal on wire
36 sent by the AR8 Safety Output
Module when a “reset is required.
Terminal 15 - 24 VDC Output signal to KA11
Relay, telling the AR12 Input Module
that a “Reset is Required.”
Terminal 1 - 24 VDC Supply Voltage to Laser
Scanner on wire 9.
Terminal 16 - 24 VDC Input when KA1/KA2 Relay
de-energizes for the Laser Scanner
to go into “Standby” Mode.
Terminal 13 - 24 VDC “Error” Output to the AR12
Input Module, that the Laser Scanner
has a “Fault.”

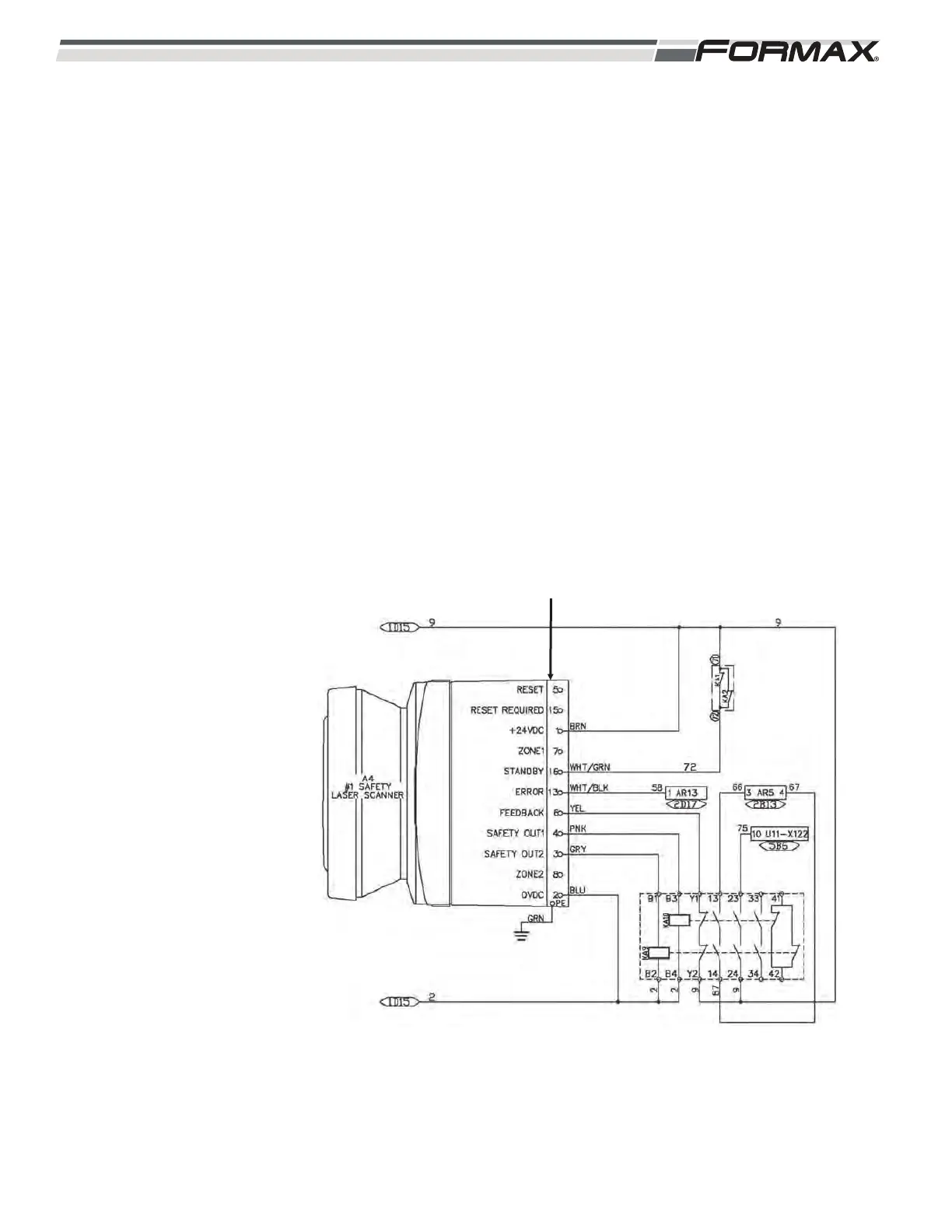

ILLUSTRATION 115
AR4 LASER SCANNER
SOCKET
To Next Page
