M4-52 031914
AR26 PNP Output Module: The AR26
Output Modules sends 24 VDC signals to
illuminate the EL1 Status Light located on top
of the Touchscreen. (Illustration 124) The EL1
Status Light will light up in “Green,” “Red,”
“Yellow” and “Blue,” depending on the
operational status of the Slicer. There are 4
LED’s on the module that indicate when an
output signal is sent.
Terminal 11 - 24 VDC Output Signal that
illuminates the “green”
Status Light when the
machine is slicing product.
LED 11 will be lit.
Terminal 12 - Common Wire to EL1
Status Light.
Terminal 14 - 24 VDC Output Signal that
illuminates the “yellow”
Status Light when the
machine is cycling, but not
feeding product. LED 14
will be lit.
Terminal 21 - 24 VDC Output Signal that
illuminates the “red” Status
Light when there is a
Scanner Breach. LED 21
will be lit.
Terminal 24 - 24 VDC Output Signal that
illuminates the “blue” Status
Light when the machine is
ready to run, but not
cycling. LED 24 will be lit.

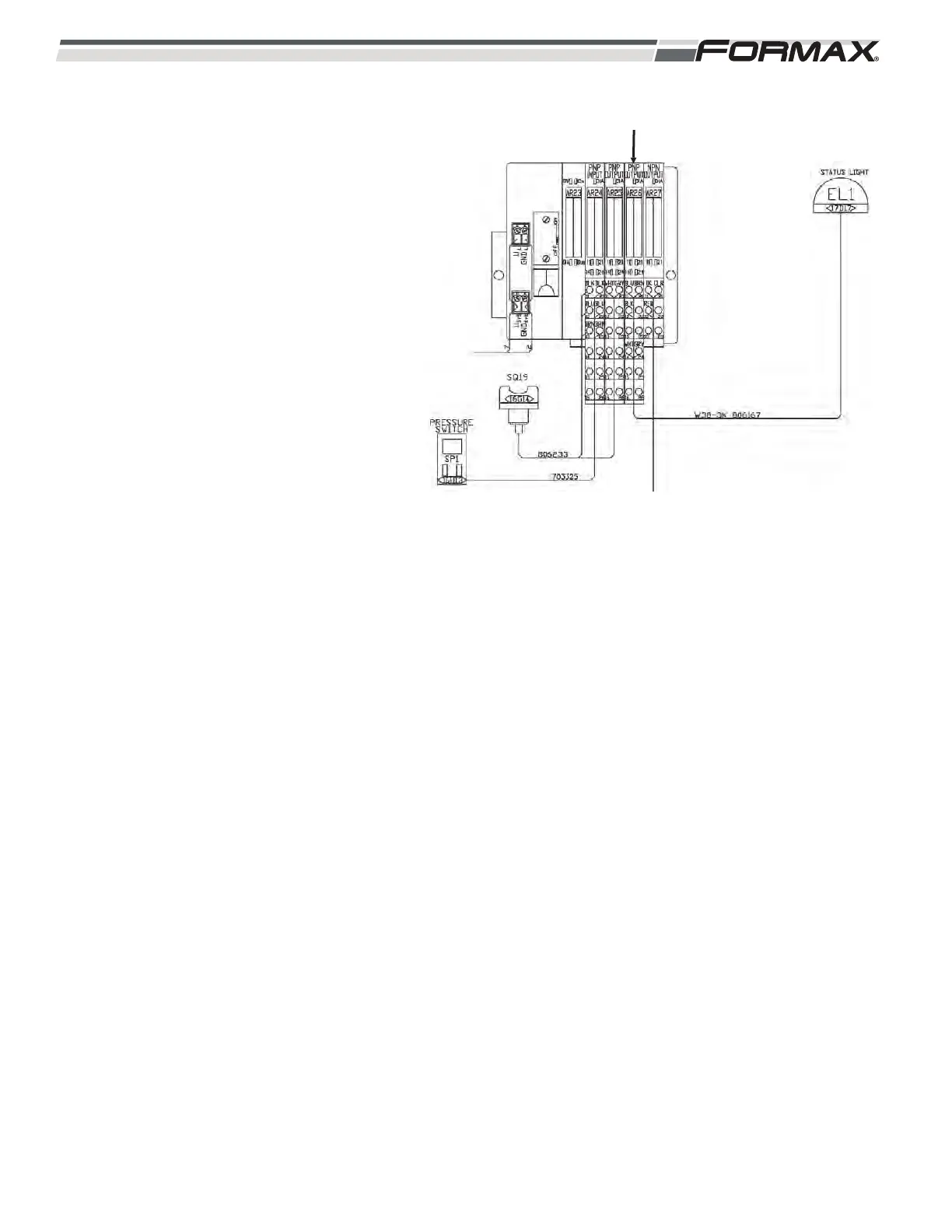

ILLUSTRATION 124
AR26 PNP INPUT MODULE
