ADANGER!
The Knife is very sharp! Use caution when
reaching into the hone area.
4. Remove the Knife guard/carrier and remove the
edge protector.
5. Close the door and jog the Knife around until the
center hub and Knife is in the position shown in
Illustration 4.
6. Open the door.
STEP 4 MARK THE TOP OF THE KNIFE
Color in the Knife near the cutting edge using a water
soluble black marker. This must be done in the area
where the Honing Stone will contact the Knife when it is
against the Knife. (Illustration 5)
STEP 5 LOWER THE HONING MECHANISM
1. Make sure that the Deburr Pad is retracted.
Deburr Pad: Push and turn the knurled knob.
Hone Stone: In the retracted position and locked
in place. (Illustration 6)
2. Hold the honing mechanism with one hand and
release the latch. (Illustration 7) Carefully lower
the mechanism down to rest on the Knife cam.

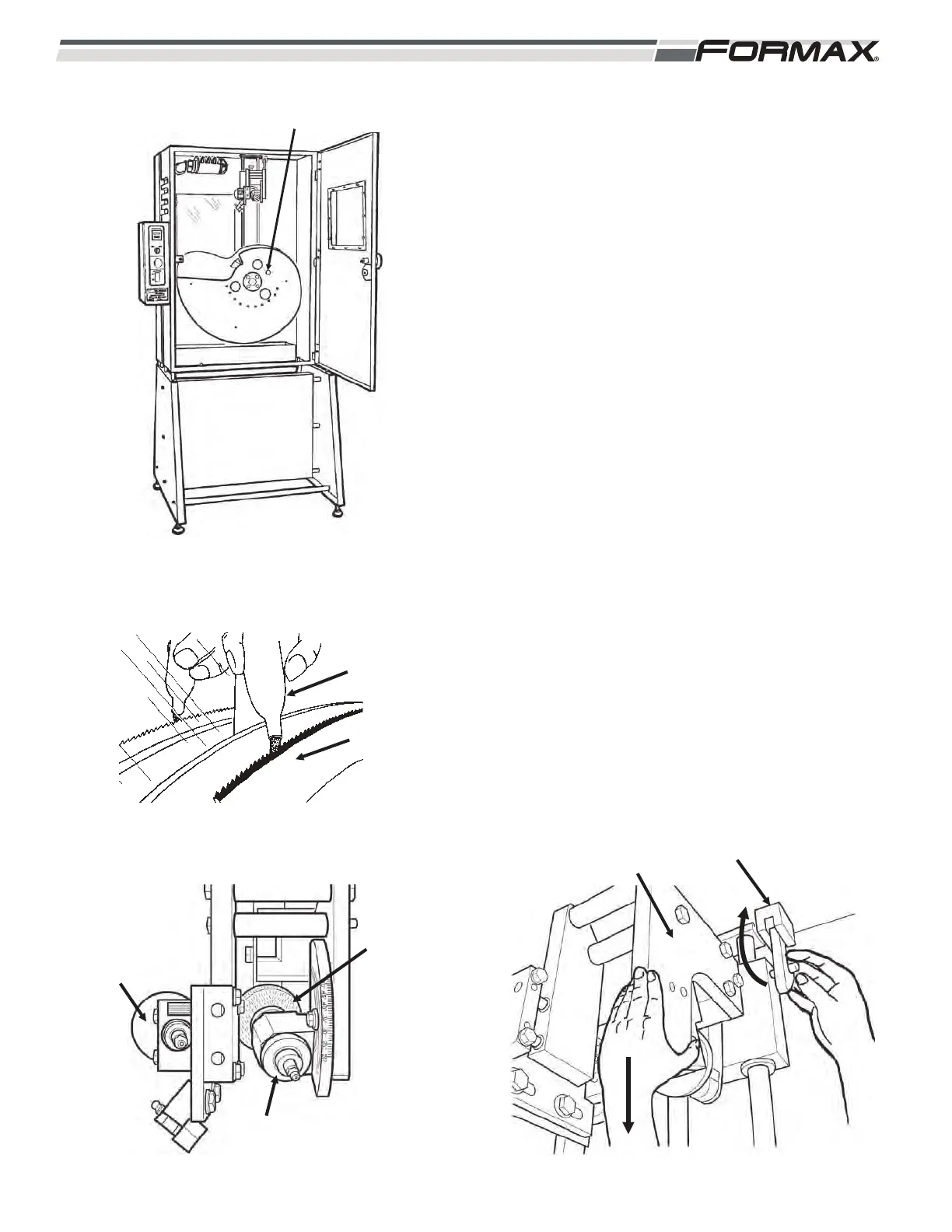

ILLUSTRATION 4
LOCATING PIN
ILLUSTRATION 5
BLACK
MARKER
KNIFE
BLADE
ILLUSTRATION 6
DEBURR
FIBER
PAD
KNURLED KNOB
PUSH AND TURN
HONE
STONE
LATCH
HONING
MECHANISM
ILLUSTRATION 7
