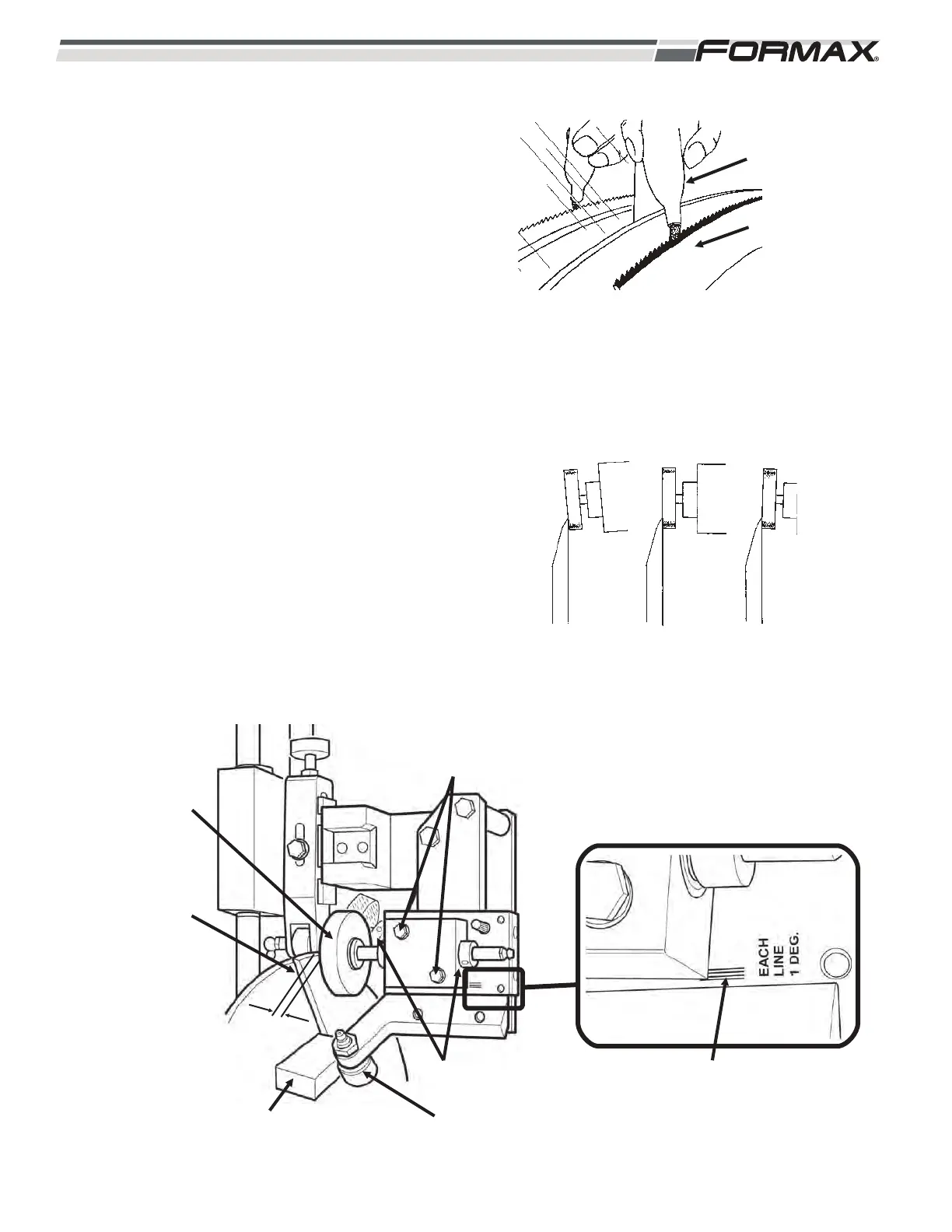

STEP 7 CHECK THE HONING ANGLE
ACAUTION!
The deburr stone must be retracted to
avoid damaging the cutting edge.
1. Make sure the Knife is colored near the
cutting edge using a water soluble black
marker. (Illustration 14) This must be done
in the area where the Honing Stone will
contact the Knife when it is against the
Knife.
2. Shut the door and pull out the “MASTER
OFF.”
3. Jog the Honer for one or two revolutions.
4. Check the marked spot on the top of the
Knife cutting edge to see if the hone stone
is contacting the full edge.
5. If the angle is not correct, (Illustration 15)
adjust the angle of the hone stone, mark
the Knife and recheck until correct.
(Illustration 16)
Set to 3°
NEGATIVE
ANGLE
POSITIVE ANGLE
DULLS EDGE
ILLUSTRATION 15
PARALLEL ANGLE
BACK-GRINDS BLADE
ILLUSTRATION 14
BLACK
MARKER
KNIFE
BLADE
ROLLER
HONE
STONE
ILLUSTRATION 16
KNIFE
3mm
(1/8 in)
GAP
LIFTING CAM
COLLARS
BACK ANGLE
ADJUSTMENT
BOLTS
3° deg.
