STEP 2 OPEN THE DOOR
Check the honing mechanism to make
sure that it is latched in the top position.
(Illustration 2)
STEP 3 INSTALL THE KNIFE
1. Remove the three retaining
knobs.
2. Install the Knife on the mounting
hub, align the locating pin with
the alignment hole in the Knife
and push the Knife flat to the
hub. (Illustration 3)
3. Install and tighten the three
retaining knobs.
KNIFE GUARD WITH
EDGE PROTECTOR
UNDERNEATH
RETAINING
KNOBS (3)

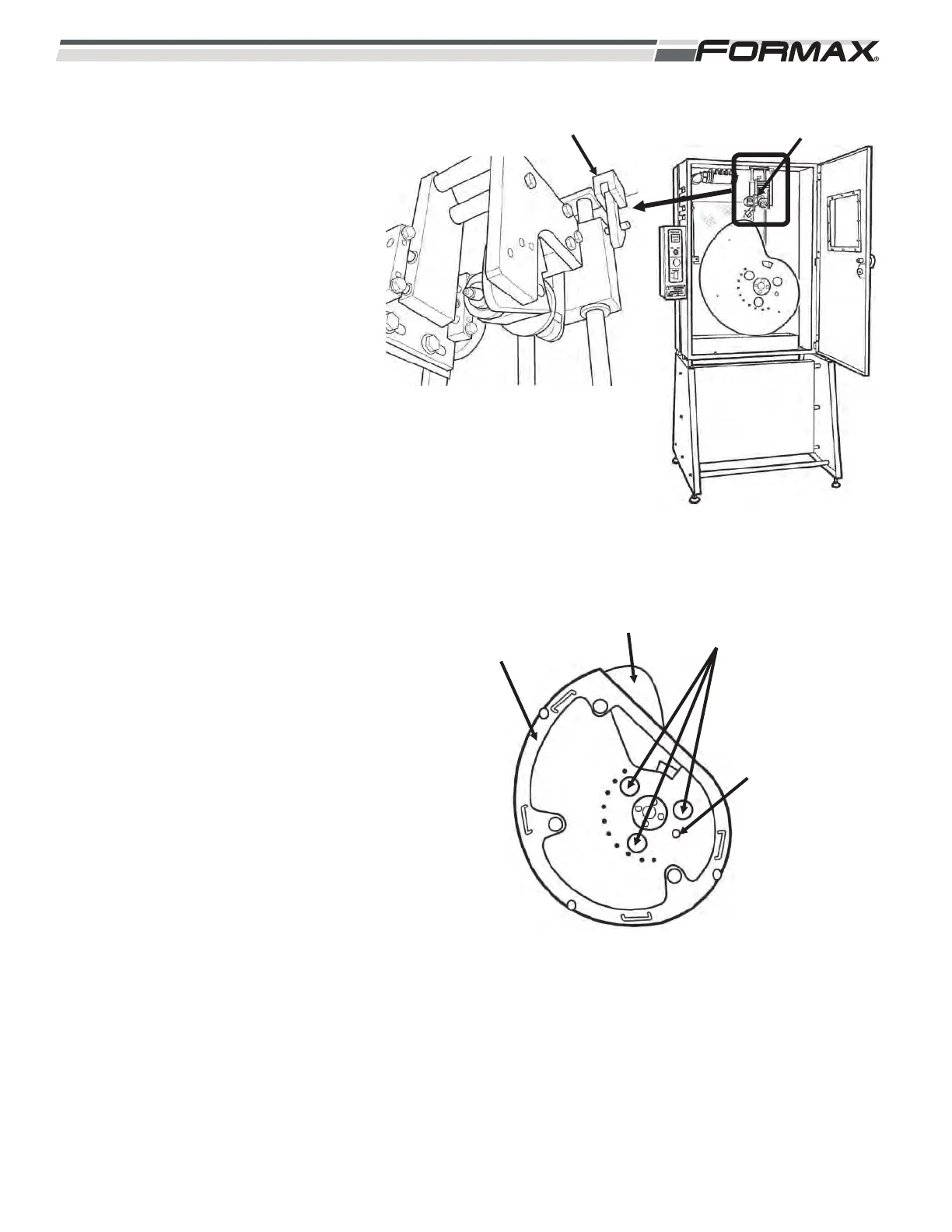

ILLUSTRATION 3
CAM
ALIGNMENT
HOLE
HONING MECHANISM
ILLUSTRATION 2
LATCH
