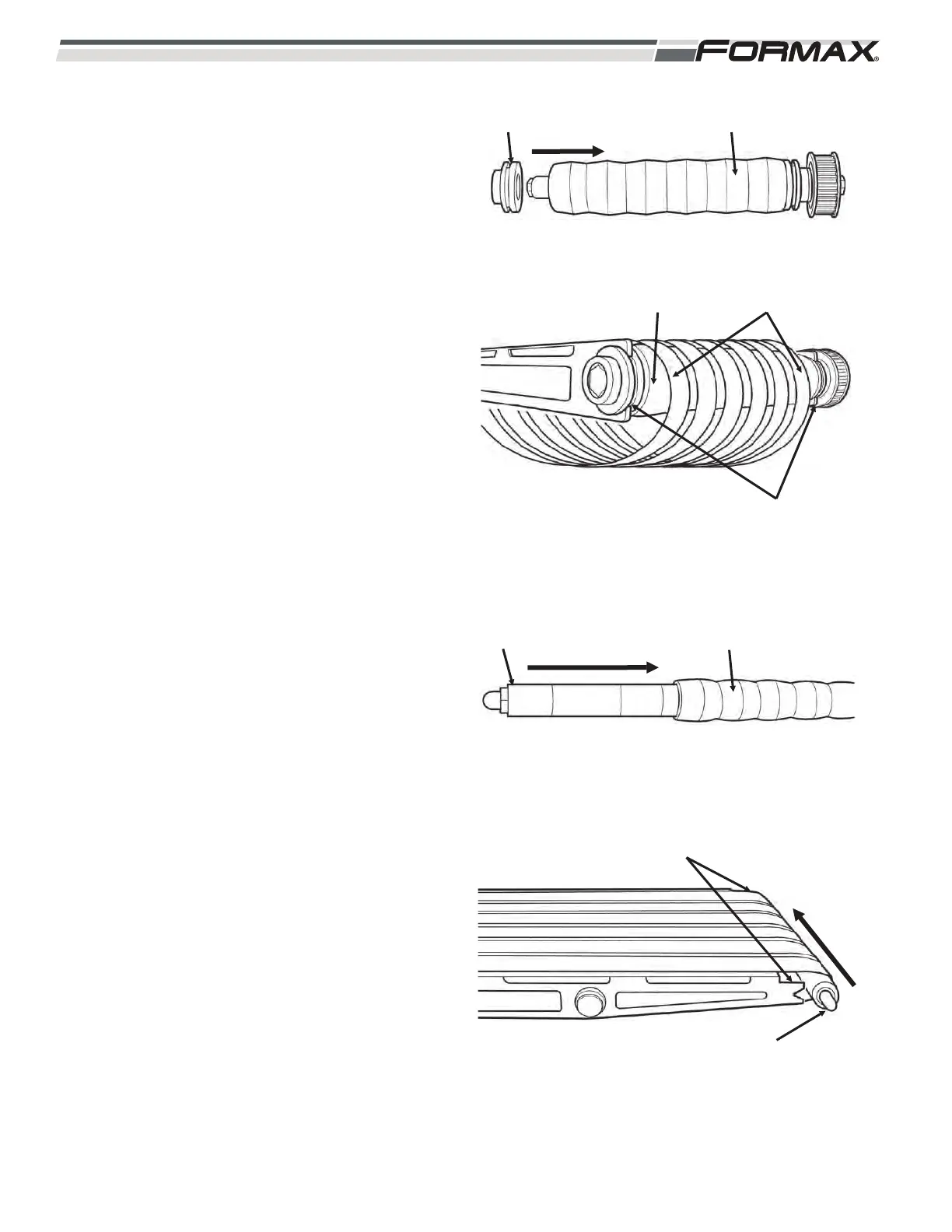

STEP 3 ASSEMBLE THE DYNAMIC
SCALE CONVEYORS
1. Install the drive bushing on the
conveyor drive pulley. (Illustration 13)
2. Slide the drive pulley into the slots on
the conveyor housing. (Illustration 14)
3. Install the conveyor belts.
4. Slide the Idler Shaft into the Idler
Pulley. (Illustration 15)
5. Slide the Idler Shaft and Pulley under
the belts and install the shaft in the
slots on the conveyor housing.
(Illustration 16)
5-4 031914
ILLUSTRATION 14
SLOTS
DRIVE PULLEY
BELTS
ILLUSTRATION 13
DRIVE PULLEYDRIVE BUSHING
ILLUSTRATION 15
IDLER PULLEYIDLER SHAFT
ILLUSTRATION 16
IDLER SHAFT
SLOTS
