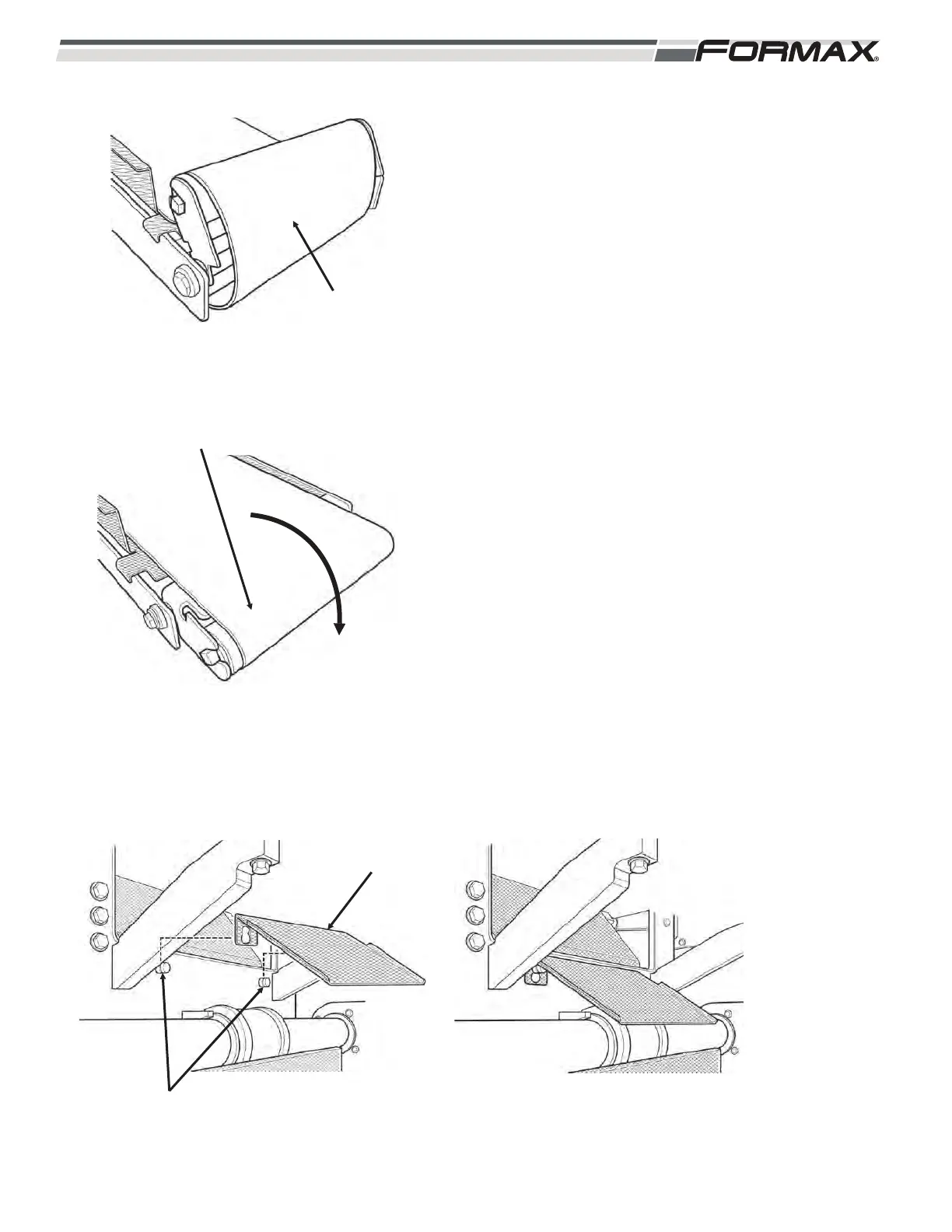

5. Install the Debris Conveyor Belt.
(Illustration 23)
6. Pivot the Idler Pulley “down” to tension
the belt. (Illustration 24)
7. Install the Debris Deflector on the
mounting posts above the Debris
Conveyor. (Illustration 25)
031914 5-7
ILLUSTRATION 23
INSTALL BELT
ILLUSTRATION 24
PIVOT IDLER “DOWN”
ILLUSTRATION 25
DEBRIS
DEFLECTOR
MOUNTING POSTS
