STEP 4 ASSEMBLE THE DEBRIS
CONVEYOR
1. Install the support pan. (Illustration 20)
Make sure the debris rail is toward the
front of the machine.
2. Pivot the Idler Mounting Bracket to the
up position.
3. Slide the Idler Shaft into the Idler Pulley.
(Illustration 21)
4. Slide the Idler Shaft and pulley into the
slots on the mounting bracket.
(Illustration 22)
5-6 031914

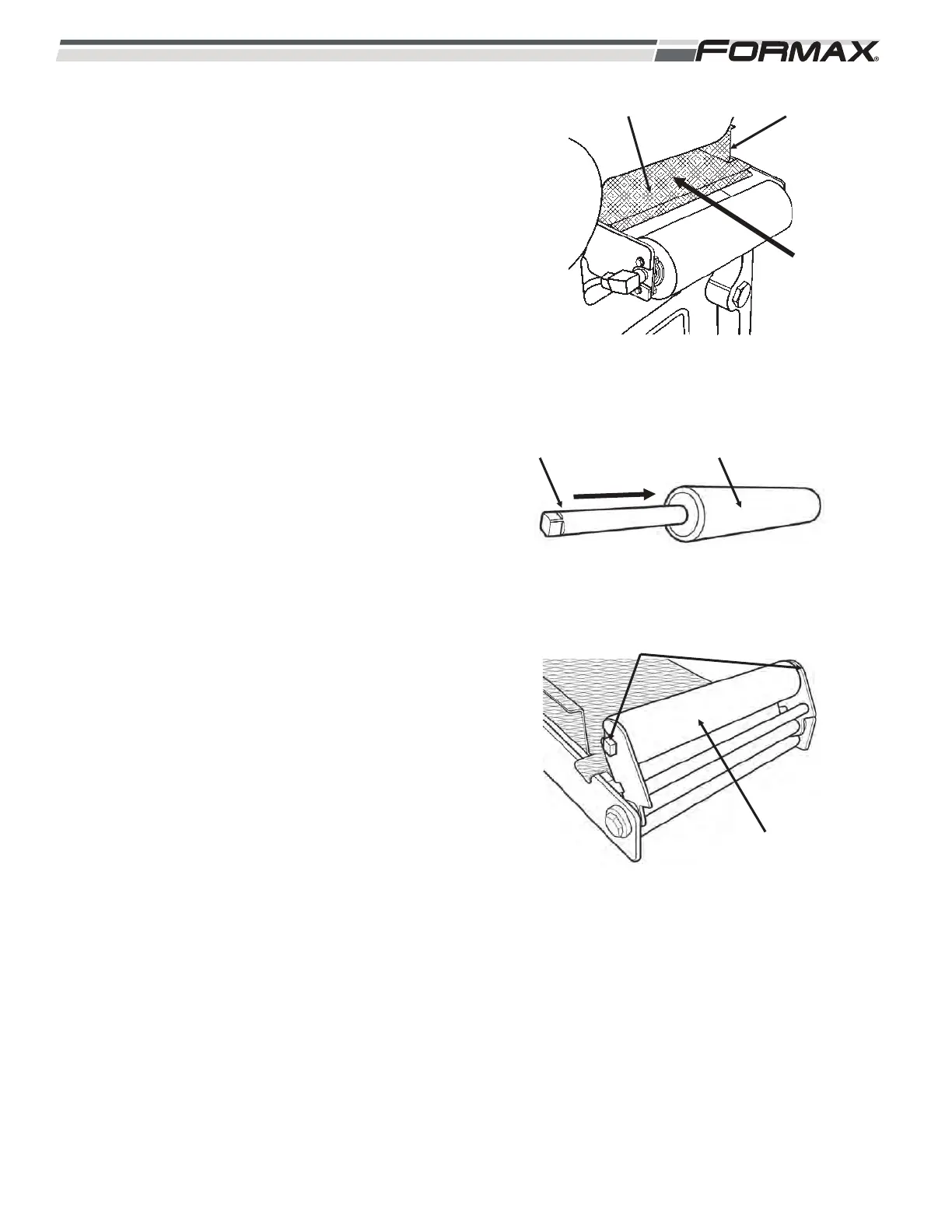

ILLUSTRATION 21
SHAFT IDLER ROLLER
ILLUSTRATION 20
INSTALL PAN DEBRIS
RAIL
ILLUSTRATION 22
IDLER PULLEY
SLOTS
