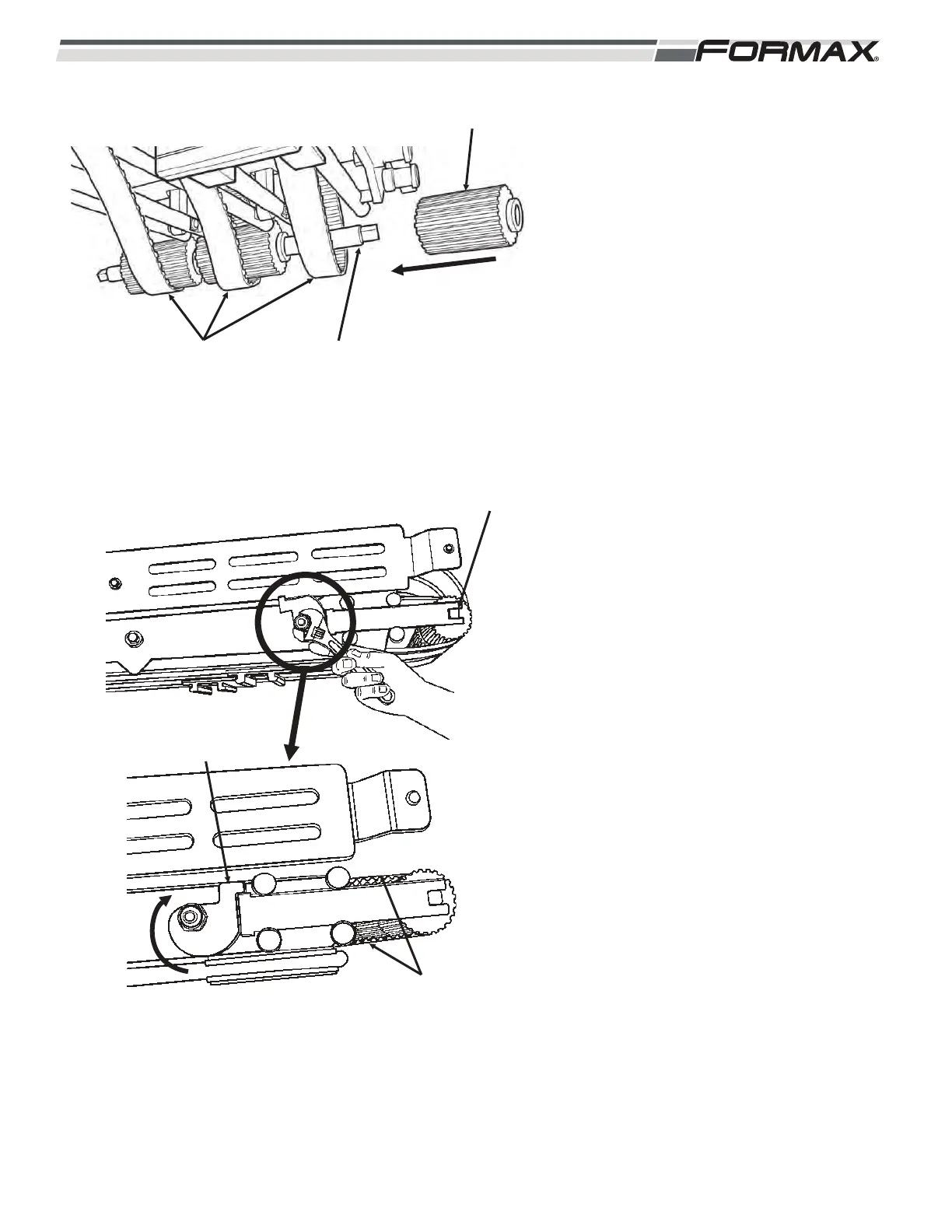

5. Slide the Idler Shaft in through all of
the drive belts. (Illustration 29) Slide
the Idler Pulleys onto the Idler Shaft.
6. Slide the Idler Shaft into the mounting
slots on the side brackets.
(Illustration 30)
7. Use an adjustable wrench and turn the
tensioner arm to tension the belts.
(Illustration 30)
031914 5-9
ILLUSTRATION 30
LOCKING ARM
TENSION BELT
MOUNTING BRACKET
ILLUSTRATION 29
IDLERPULLEY
DRIVE BELTS
IDLER SHAFT
