Fujitsu PRIMERGY RX4770 M5 User Manual

▶
Open the cable clamp left of the SAS expander board to release the cables
(see circle).
▶
Release the FBU carrier and push it a little bit outside the server (see
"Removing the FBU carrier" on page
228).
▶
Disconnect the cables from the SAS expander board (see arrows).

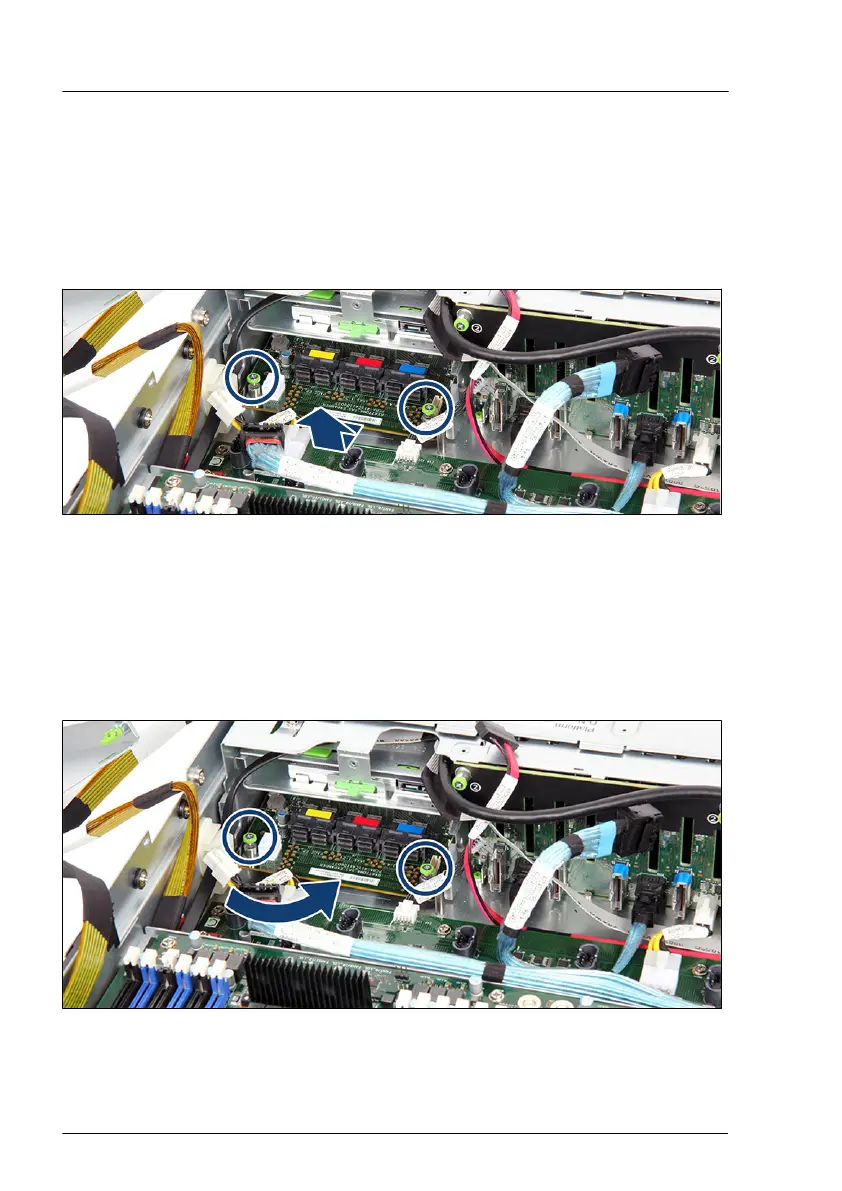

Figure 65: Removing the SAS expander board (B)
▶
Release the two screws on the SAS expander board (see circles).
▶
Pull out the SAS expander board in a slight angle to remove it upward (see
arrow).
Installing the new SAS expander board
Figure 66: Installing the SAS expander board (A)
Hard disk drive (HDD) / solid state disk (SSD)
160 Upgrade and Maintenance Manual RX4770 M5
