GE Vivid P3

GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-6 Section 8-2 - Disassembly/Re-assembly of VIVID P3
8-2-4 LCD Assy (FRU P/N: 5315112) (cont’d)

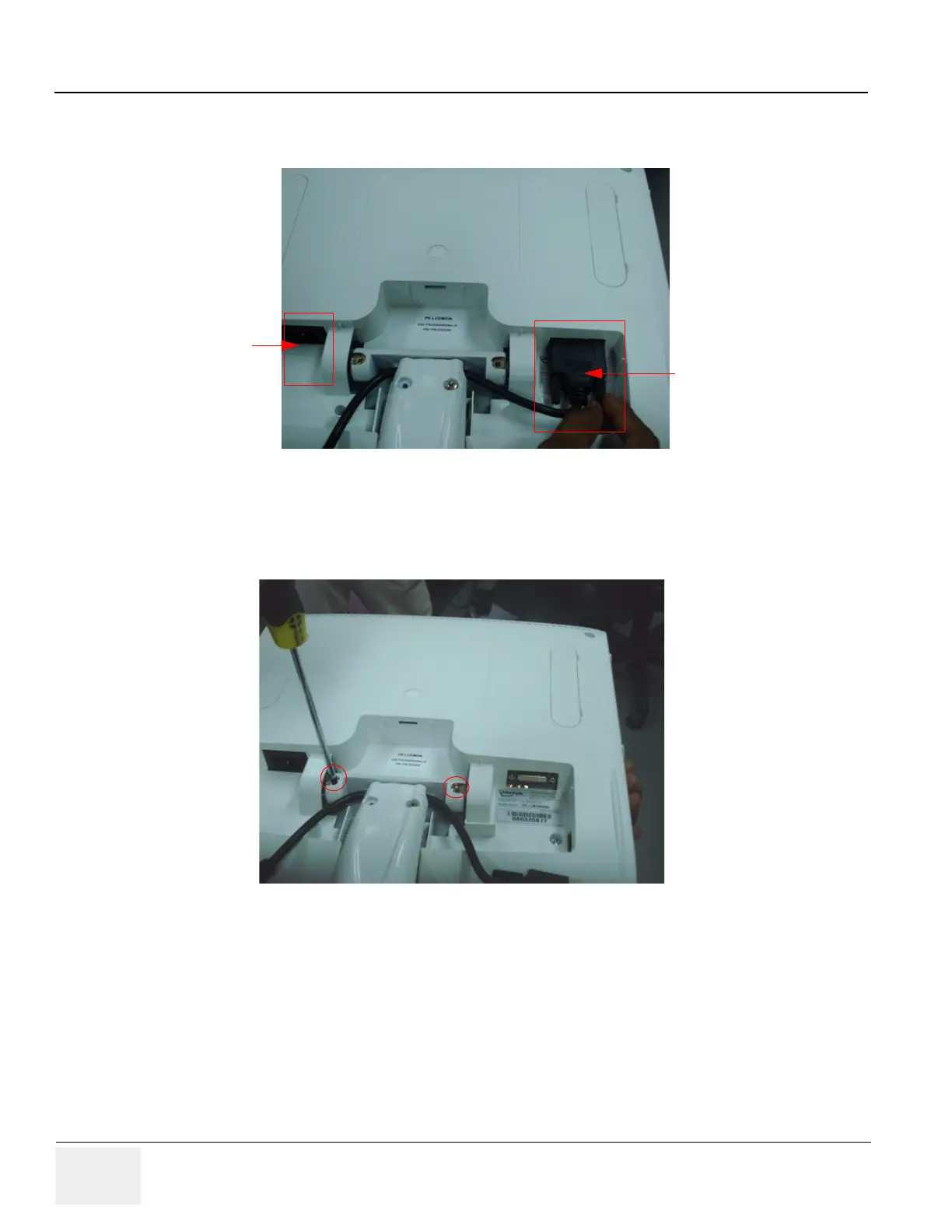

8) Disconnect the power cable & DVI cable from the LCD monitor system. Refer Figure 8-4 on page 8-6
Figure 8-4 Remove Power cable & DVI cable
9) Loosen the two screw of (A,B) of LCD monitor Arm. Refer Figure 8-5 on page 8-6
Figure 8-5 LCD monitor neck
DVI cable
power cable
A
B
