8-64 Section 8-6 - Rear Panel Assy (110V/ 220V FRU P/N: 5313708)

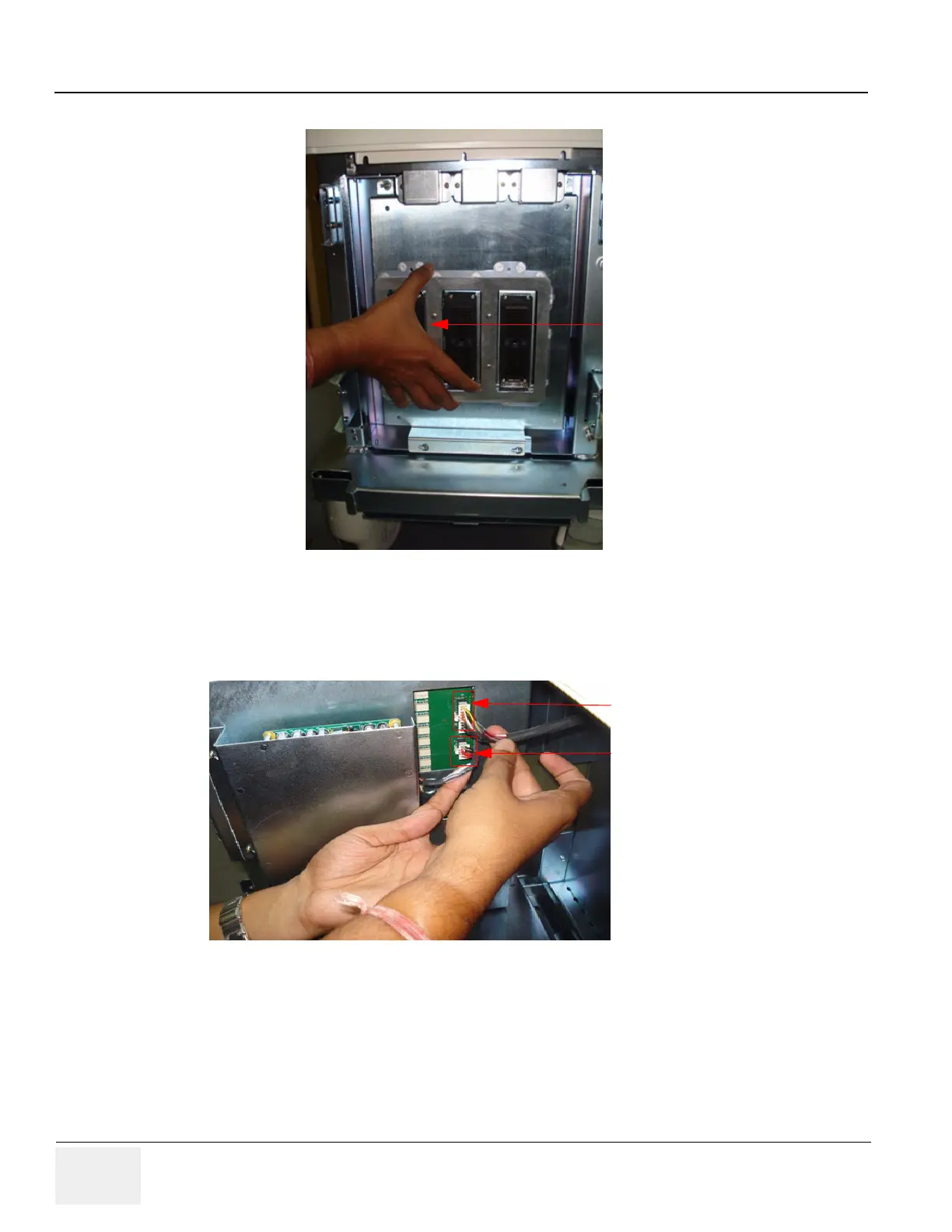

Figure 8-55 Removing Conn board assembly
5) Remove the conn board TX cable and PDB conn board cable (or power cable)
Refer Figure 8-56 on page 8-64
Figure 8-56 Removing Power cable & Conn board Tx cable
Power cable
Conn board Tx
cable
