8-3
NOTE:
In the figure, A1 to A4 and B1 to B4 represent data ports NVMe A1 to NVMe A4 and data ports
NVMe B1 to B4 on the NVMe SSD expander module. NVMe 1 to NVMe 4 represents the labels on
NVMe data cables.
Hybrid 4SFF SAS/SATA and 4SFF NVMe drive cabling
To install 4SFF NVMe drives, you must install a 4-port NVMe SSD expander module to riser card 0 in
the compute module.
Connect 4SFF SAS/SATA drives to the main board and connect 4SFF NVMe drives to the 4-port
NVMe SSD expander module. When connecting NVMe data cables, make sure you connect the
corresponding peer ports with the correct NVMe data cable, as shown in Figure 8-4.

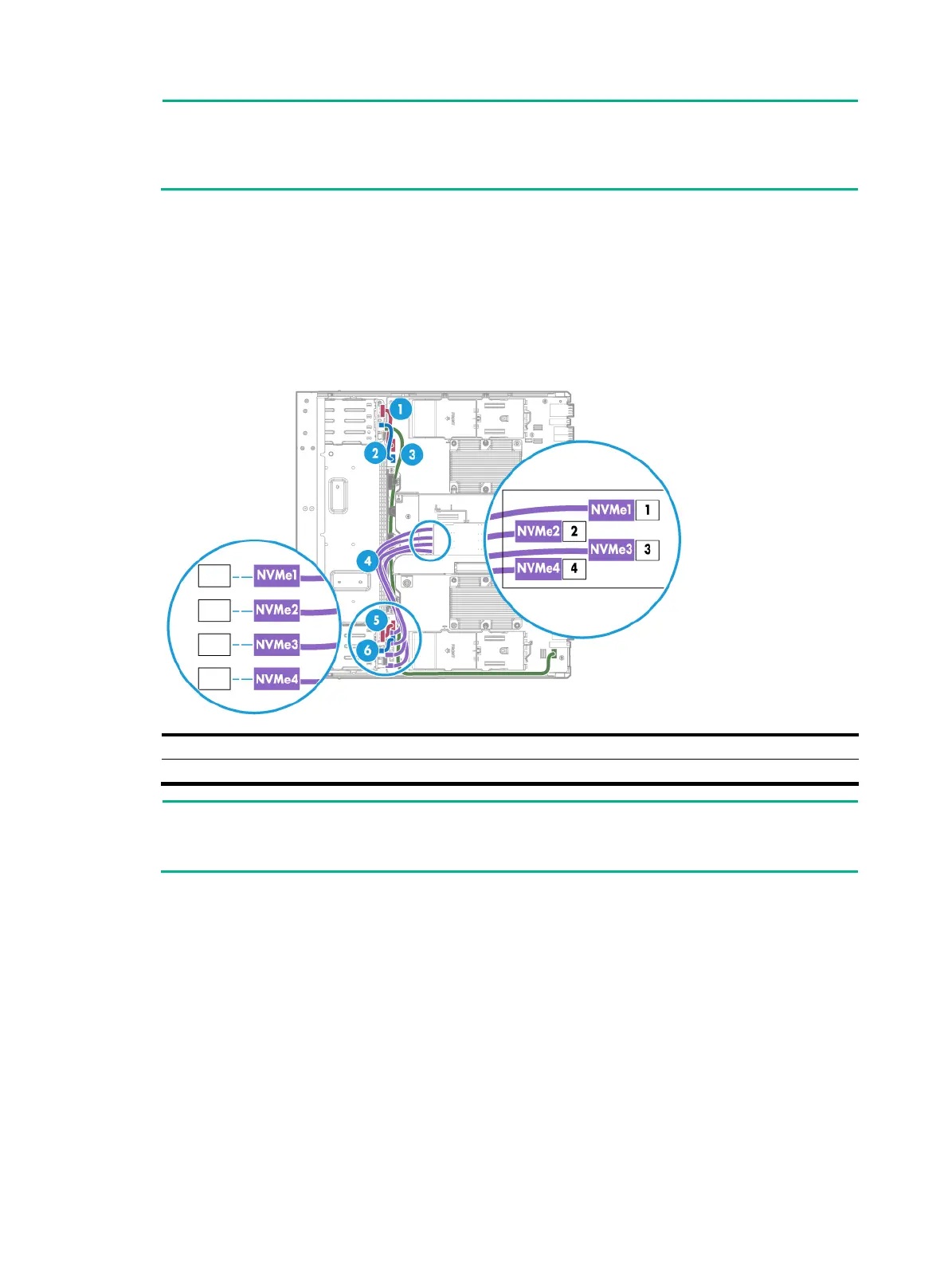

Figure 8-4
Hybrid 4SFF SAS/SATA and 4SFF NVMe drive cabling
(1) and (5) AUX signal cables (2) and (6) Power cords
(3) SATA data cable (4) NVMe data cables
NOTE:
In the figure, 1 to 4 represent data ports NVMe 1 to NVMe 4 on the NVMe SSD expander module.
NVMe 1 to NVMe 4 represents the labels on NVMe data cables.
