11-11
Drive configuration
Drive cage bay 1 in
compute module 1
Drive cage bay 2 in
compute module 1
Compute module 2
32SFF
(24 SFF SAS/SATA drives
and 8 SFF NVMe drives)
4 SFF NVMe drives 4 SFF NVMe drives
28SFF
(28 SFF SAS/SATA drives)
4 SFF SAS/SATA
drives
/
28SFF
(24 SFF SAS/SATA drives
and 4 SFF NVMe drives)
/ 4 SFF NVMe drives
NOTE:
• To install 4 SFF SAS/SATA drives, a 4SFF SAS/SATA drive backplane is required. To install 4
SFF NVMe drives, a 4SFF NVMe drive backplane is required.
• "/" indicates no drives are required but drive blanks must be installed.

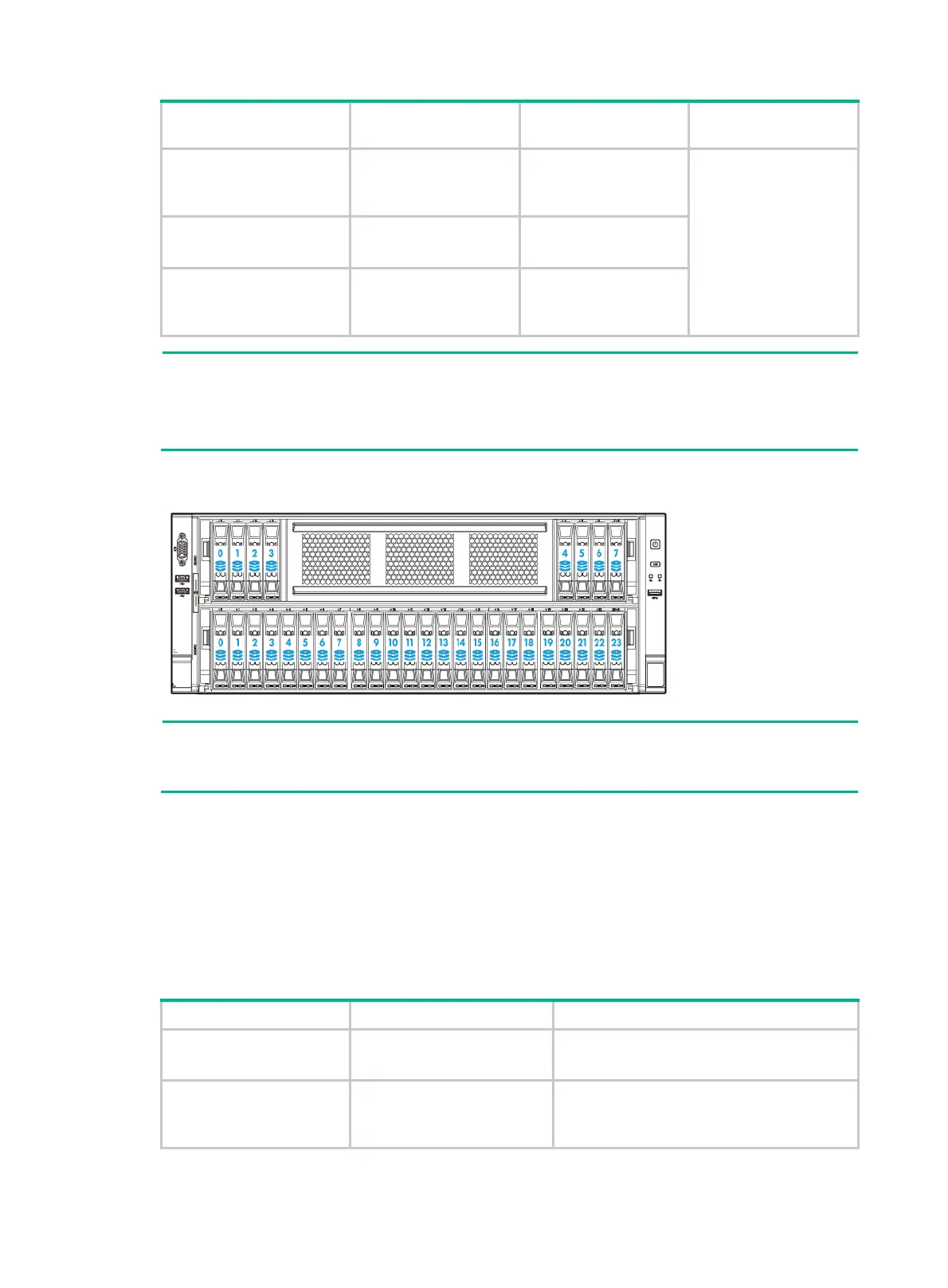

Figure 11-4 Drive numbering for the 32SFF configuration (32SFF server)
NOTE:
For the location of the compute modules, see "Front panel view of the server." F
or the location of the
drive cage bays, see "Front panel view of a compute module."
16SFF server
Table 11-10 presents the drive configurations available for the 16SFF server and their compatible
types of storage controllers and NVMe SSD expander modules. Ta b l e 11 - 11 sho
ws drive population
for the 16SFF server.
These drive configurations use the same drive numbering scheme, and drives with the same number
are distinguished by the compute module they reside in, as shown in Figure 11-5.
Table 11
-10 Drive, storage controller, and NVMe SSD expander configurations (16SFF
server)
Drive configuration Storage controller NVMe SSD expander
16SFF
(16 SFF SAS/SATA drives)
2 × storage controllers N/A
16SFF
(12 SFF SAS/SATA drives
and 4 SFF NVMe drives)
2 × storage controllers 1 × 4-port NVMe SSD expander module
