H3C WA Series User Manual

212

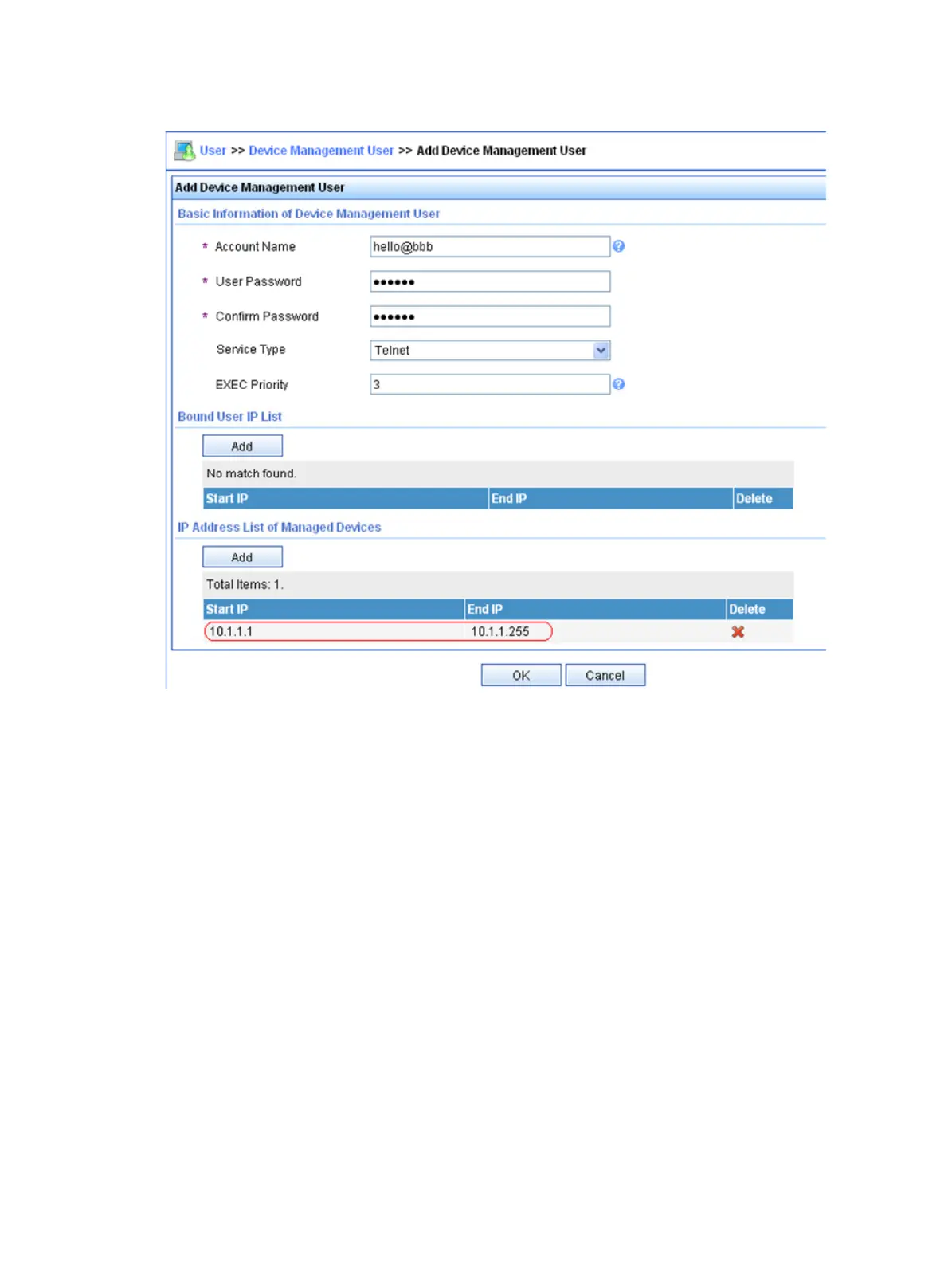

Figure 206 Device management user configuration page
Configuring the AP
1. Configure the RADIUS scheme system:
a. Select Authentication > RADIUS from the navigation tree.
b. Click Add.
c. Enter the scheme name system, select the server type Extended, and select the username format
Without domain name.
d. In the RADIUS Server Configuration area, click Add to enter the RADIUS server configuration
page.
e. Select the server type Primary Authentication, enter 10.1.1.1 as the IP address of the primary
authentication server, 1812 as the port number, and expert as the key, and click Apply to add
the primary authentication server to the scheme.
