H3C WA Series User Manual

215

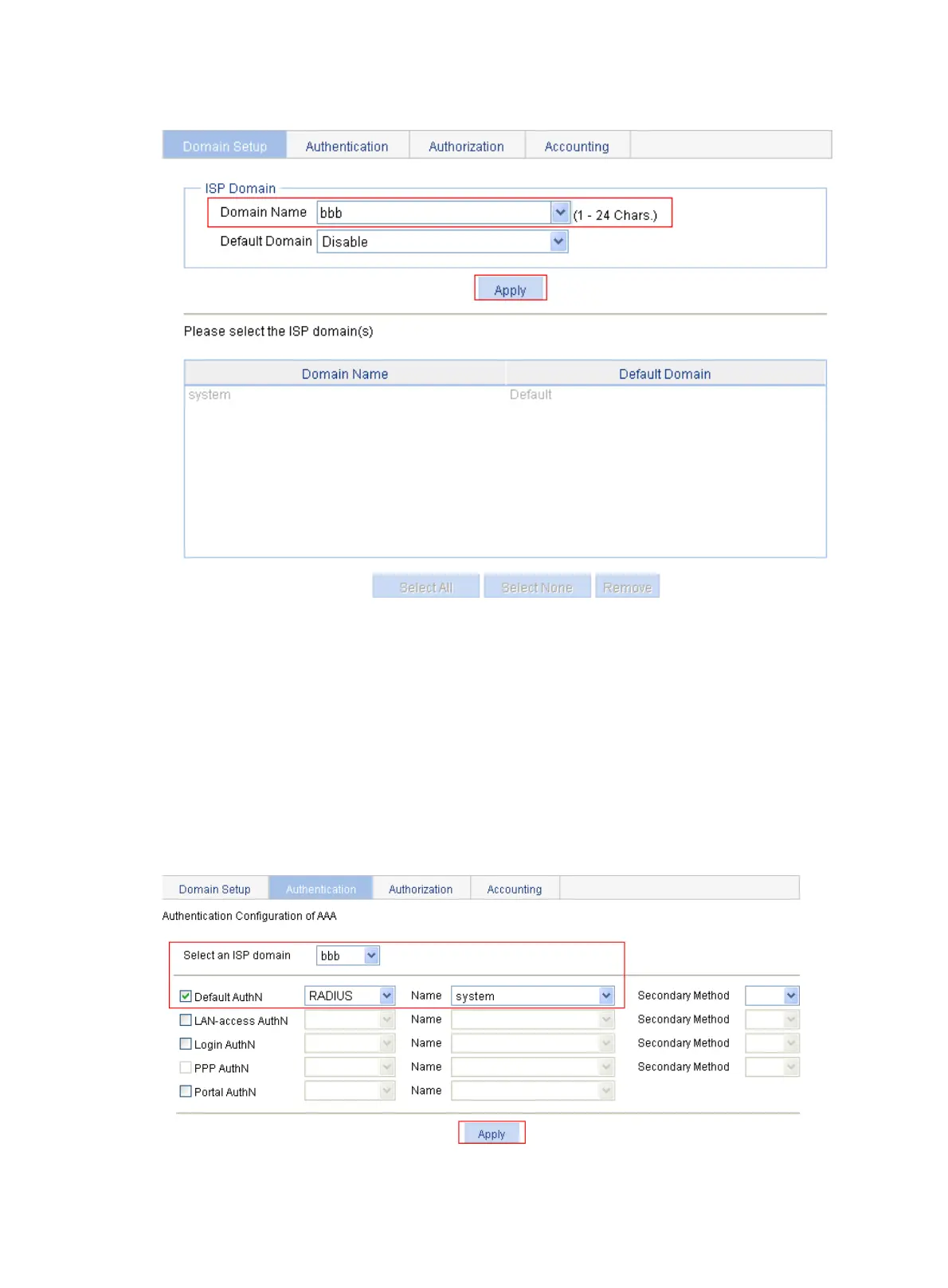

Figure 210 Create an ISP domain
3. Configure an authentication method for the ISP domain:
a. Click the Authentication tab.
b. Select the domain name bbb.
c. Select the Default AuthN box and then select the authentication mode RADIUS.
d. Select the RADIUS scheme system from the Name list to use it as the authentication scheme.
e. Click Apply.
A configuration progress dialog box appears.
f. After the configuration progress is complete, click Close.
Figure 211 Configure an authentication method for the ISP domain

H3C WA Series Specifications

General

Brand	H3C
Model	WA Series
Category	Wireless Access Point
Language	English
