H3C WA Series User Manual

227

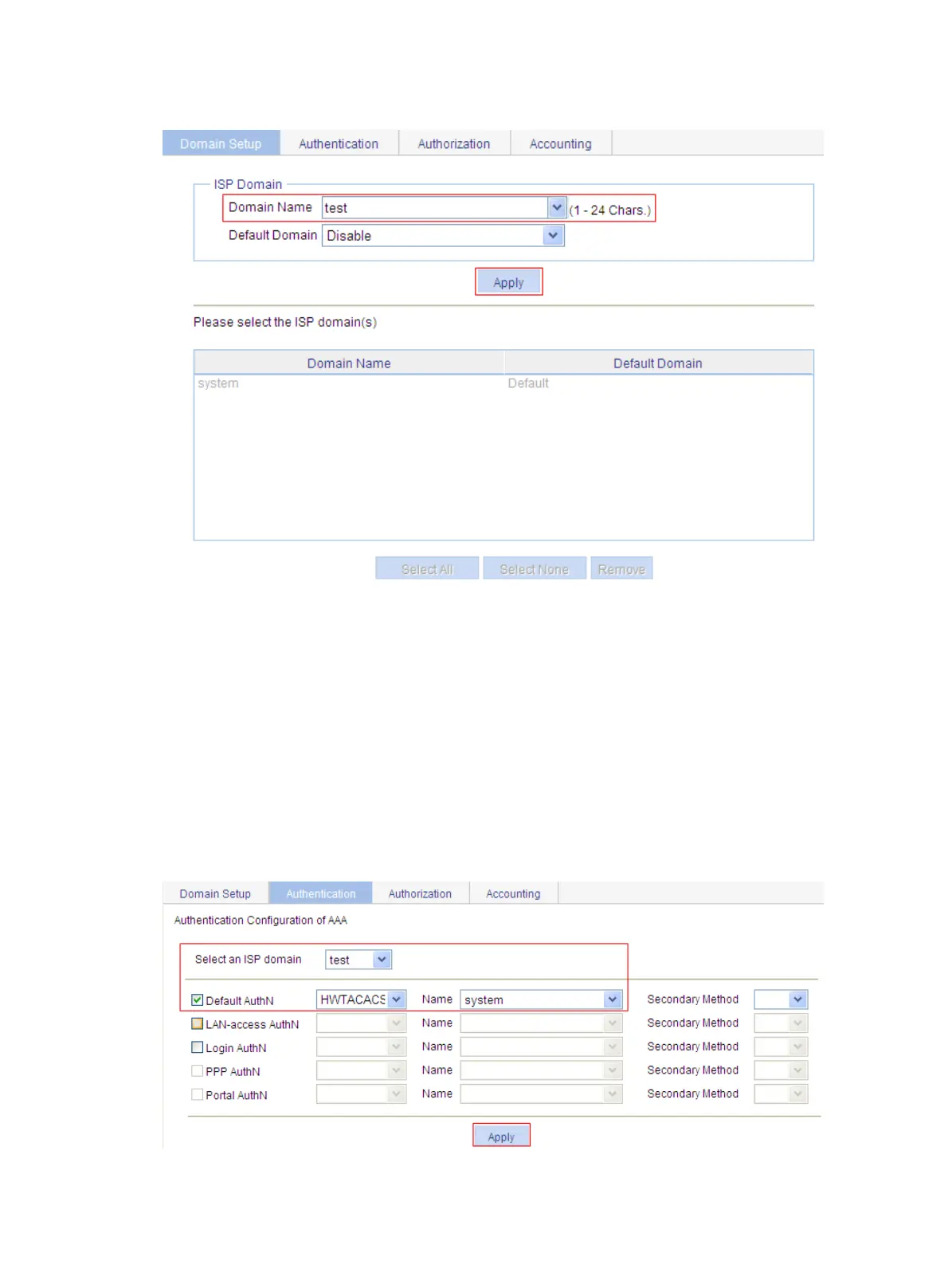

Figure 222 Create an ISP domain
7. Configure an authentication method for the ISP domain:
a. Click the Authentication tab.
b. Select the domain name test.
c. Select the Default AuthN box and then select the authentication mode HWTACACS.
d. Select the HWTACACS scheme system from the Name list to use it as the authentication
scheme.
e. Click Apply.
A configuration progress dialog box appears.
f. After the configuration progress is complete, click Close.
Figure 223 Configure an authentication method for the ISP domain
