13
• The AP provides a plain-text wireless service with SSID service.
• 802.11n (2.4 GHz) is adopted to inter-work with the existing 802.11g network and meet the high
bandwidth requirement.

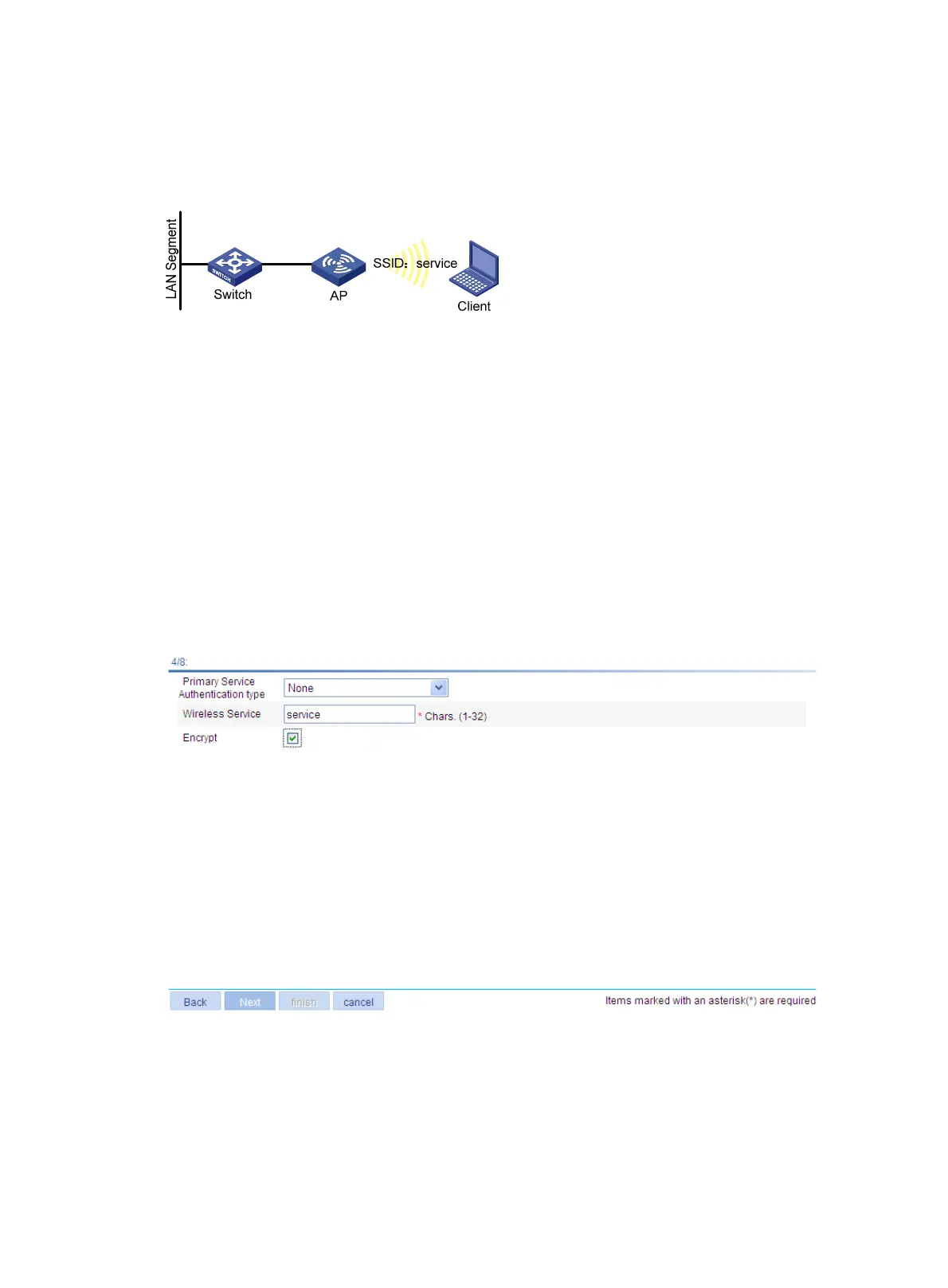

Figure 11 Network diagram
Configuring the AP
1. Perform basic configurations:
a. From the navigation tree, select Quick Start.
The home page of the Quick Start wizard appears.
b. Configure time parameters, login password, and login IP address as needed.
2. Configure wireless service:
a. On the IP configuration page, click Next.
The wireless configuration page appears.
b. Use default setting for Primary Service Authentication type, specify the SSID as service, and
use default setting for Encrypt (no encryption is performed).
Figure 12 Wireless configuration page
c. Click Next.
The radio configuration page appears.
d. Select the 802.11n(2.4GHz) box, bind wireless service service to the 802.11n (2.4 GHz) radio,
and use default settings for other parameters.
e. Click Next.
