304
b. Select Device > Interface Management to assign an IP address to the VLAN interface.
2. Configure a wireless service:
a. Select Wireless Service > Access Service from the navigation tree.
b. Click Add.
c. On the page that appears, set the service name to mac-auth, select the wireless service type
clear, and click Apply.

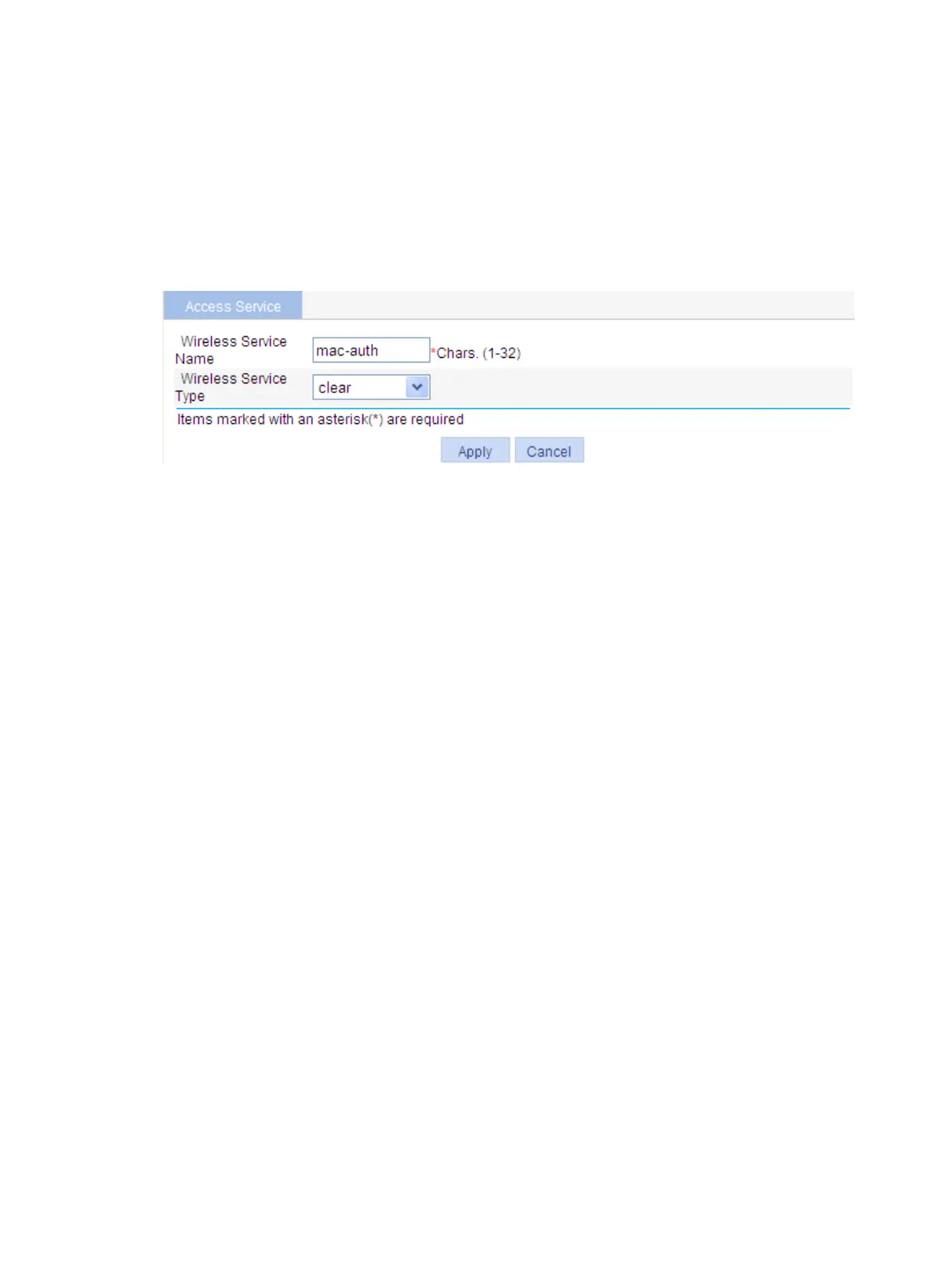

Figure 312 Create a wireless service
3. Configure local MAC authentication
After you have created a wireless service, you enter the wireless service configuration page.
a. In the Security Setup area, select the Open-System from the Authentication Type list.
b. Select the Port Set box, and select mac-authentication from the Port Mode list.
c. Select the MAC Authentication box, and select system from the Domain list.
To create a domain, select Authentication > AAA from the navigation tree, click the Domain
Setup tab, and enter a domain name in the Domain Name field.
d. Click Apply.
