H3C WA Series User Manual

308
• The IP address of the AP is 10.18.1.1. On the AP, configure the shared key for communication with
the RADIUS server as expert, and configure the AP to remove the domain name of a username
before sending it to the RADIUS server.

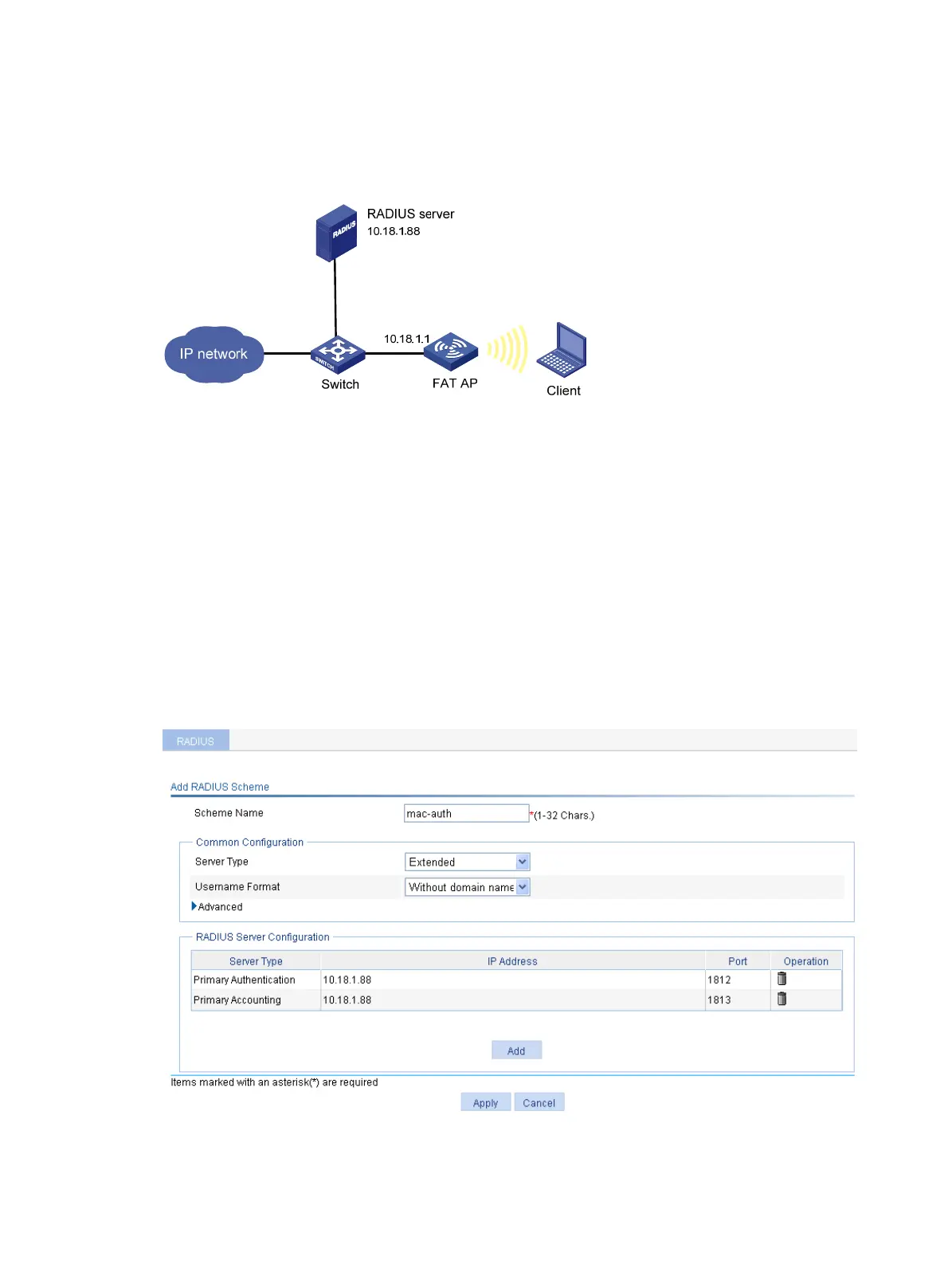

Figure 318 Network diagram
Configuring the AP
1. Assign an IP address to the fat AP:
a. Select Network > VLAN to create a VLAN on the fat AP.
b. Select Device > Interface Management to assign an IP address to the VLAN interface.
2. Configure a RADIUS scheme:
a. Select Authentication > RADIUS from the navigation tree.
b. Click Add.
c. On the page that appears, add two servers in the RADIUS Server Configuration area, specify
the key expert, enter mac-auth in the Scheme Name field, select the server type Extended,
select Without domain name from the Username Format list, and click Apply.
Figure 319 Configure RADIUS
3. Configure AAA:
a. From the navigation tree, select Authentication > AAA.
