H3C WA Series User Manual

346
a. Select Wireless Service > Client Mode from the navigation tree.
b. Click Connect Setup.
c. On the page that appears, select the box corresponding to 802.11n (2.4GHz) and click
Enable.

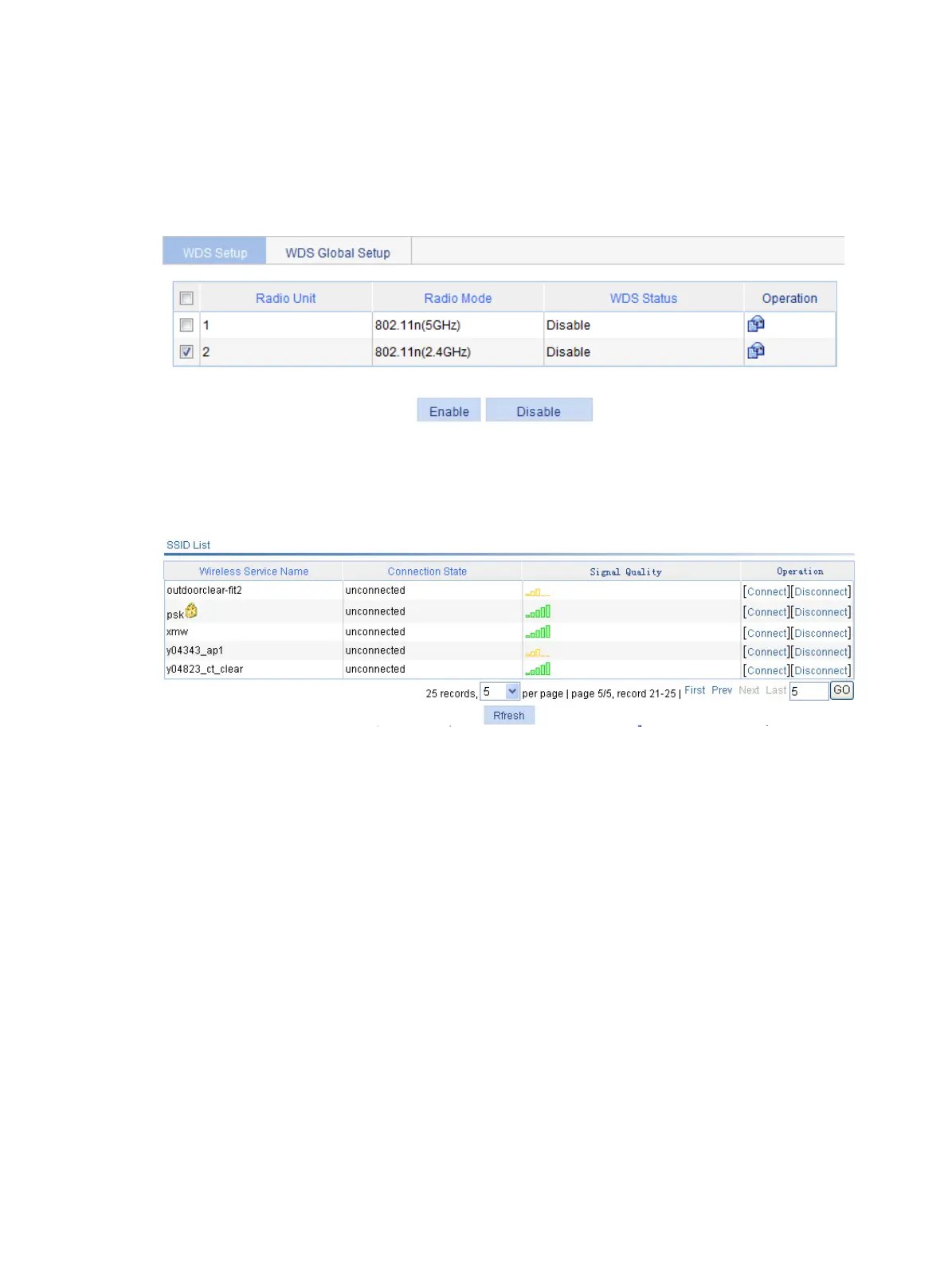

Figure 381 Enable the client mode
When the client mode enabled, you can check the existing wireless services in the wireless service list.
Figure 382 Check the wireless service list
2. Connect the wireless service
a. Click the Connect icon of the wireless service psk in the wireless service list
b. On the SET CODE dialog box that appears, specify the AuthMode as WPA2+PSK, specify the
CipherSuite as AES-CCMP, and set the Password to that on the AP, 12345678, and click
Apply.
