ENGINE
- 159 -

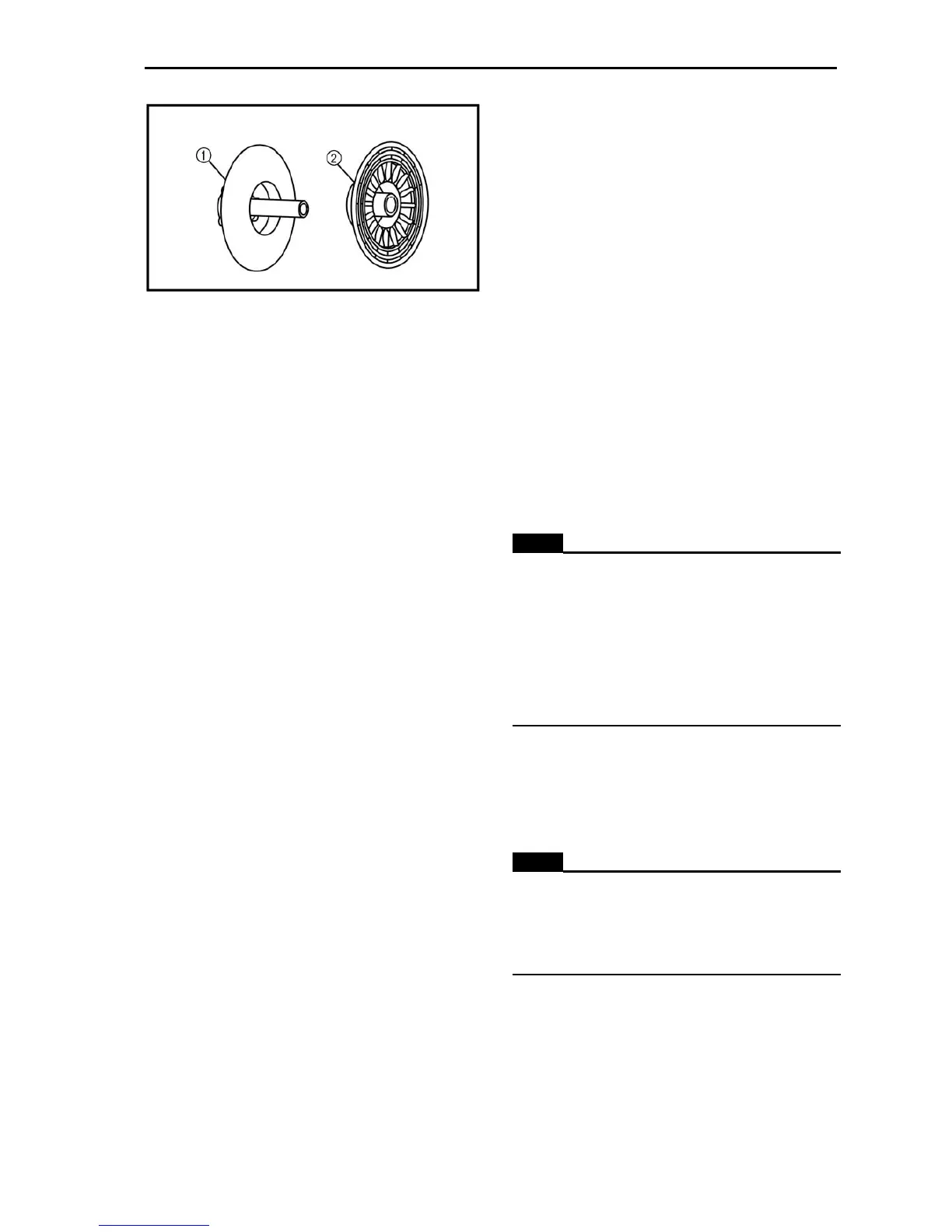

2). Assembling the secondary sheave
(1)Apply:
• assembly lube
(to the secondary sliding sheave ① inner
surface and oil seals)。
• assembly lube
(to the bearings, oil seals and inner surface of
the secondary fixed sheave ②)
3). Installing the primary and secondary
sheaves
(1) Install:
• secondary sheave assembly
• V-belt
• primary sheave assembly
NOTE:
• Tightening the bolts will push the
secondary sliding sheave away, causing
the
gap between the secondary fixed and
sliding sheaves to widen.
• Install the V-belt so that its right faces the
direction show in the illustration.
(2)Tighten:
• primary sheave nut (70Nm)
• secondary sheave nut (50Nm)
NOTE:
• Use the sheave holder to hold the primary
sheave.
• First, tighten the primary sheave nut , then
tighten the secondary sheave nut .
