ENGINE
- 158 -

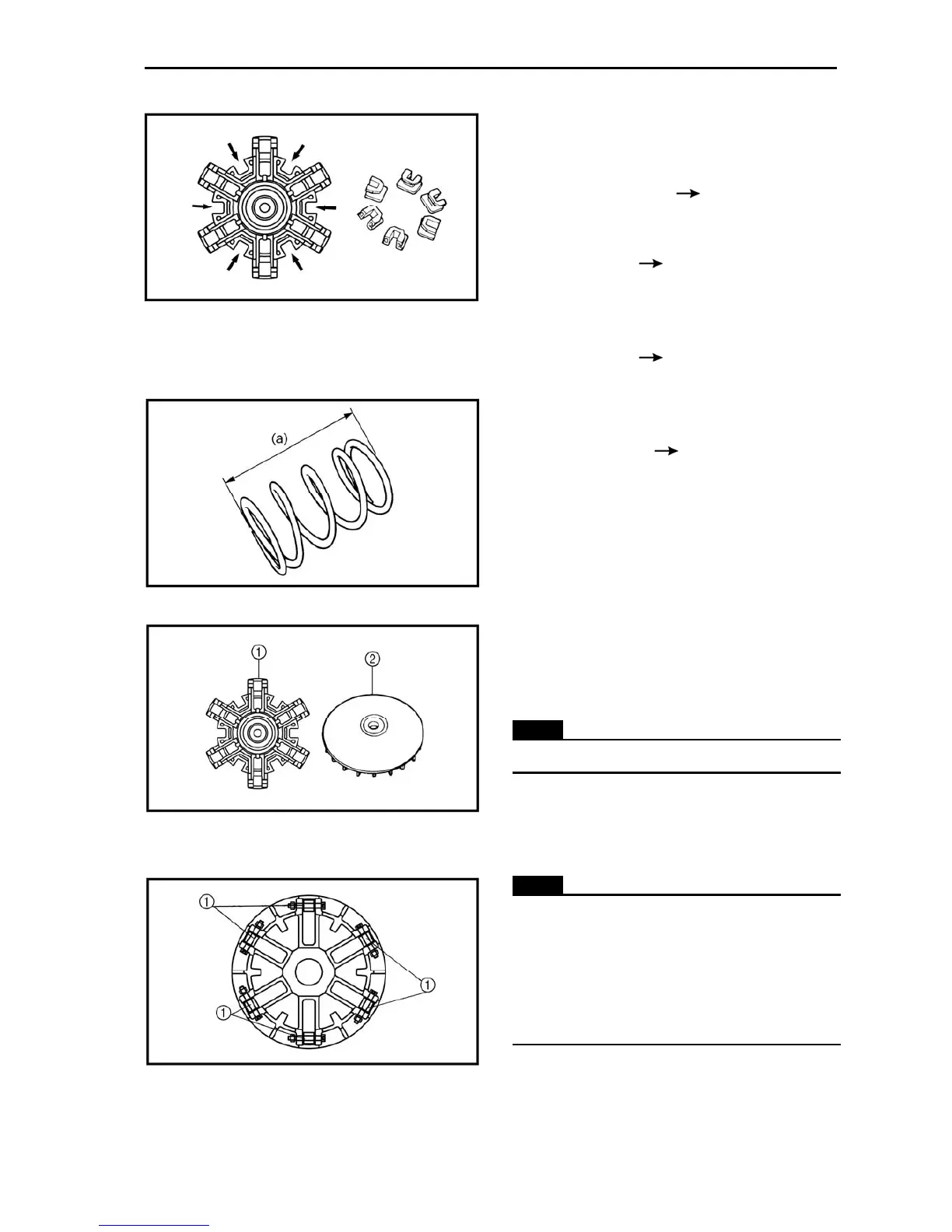

1、Check
1). Checking the primary sheave
• primary pulley slider
• primary sliding sheave splines
Wear/cracks/damage
Replace.
• spacer
• primary pulley cam
Cracks/damage
Replace.
• primary sliding sheave
• primary fixed sheave
Cracks/damage
Replace.
2、Measure
• secondary sheave spring free length (a)
Out of specification
Replace the secondary
sheave spring.
3、INSTALL
1). Assembling the primary sheave
(1)Clean:
• primary sliding sheave ①
• primary fixed sheave ②
• primary sliding sheave cam face
NOTE:
Remove any excess grease.
(2)Install:
• weights ①
NOTE:
• Apply grease (90g) to the whole outer
surface of the weights and install.
• Apply grease to the inner surface of the
collar.
• Apply grease to the inner surface of the
primary sliding sheave.
To Next Page
