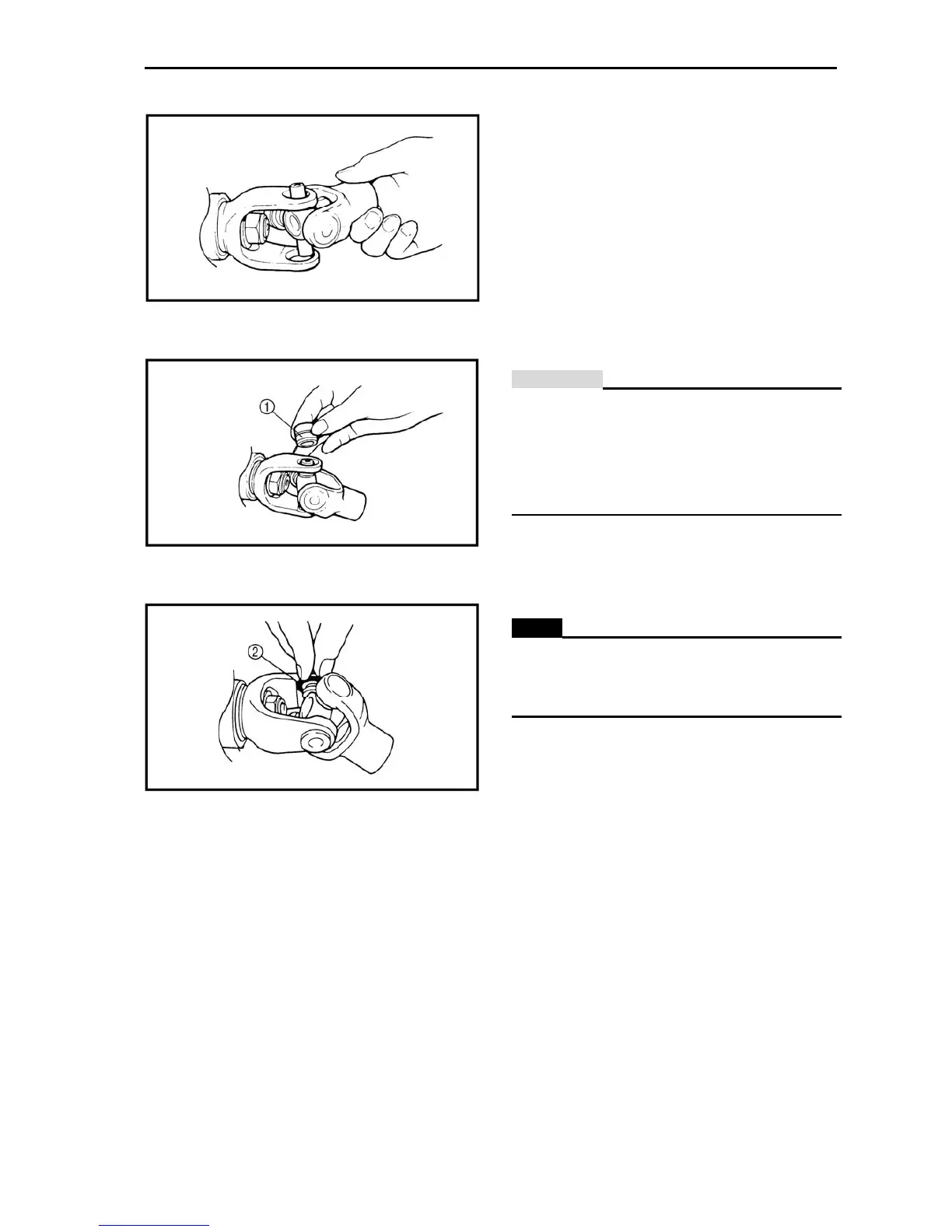

2). Installing the middle driven shaft
• universal joint.
a. Install the opposite yoke into the universal
joint.
b. Apply wheel bearing grease to the bearings.
c. Install the bearing ① onto the yoke.
CAUTION:
Check each bearing. The needles can easily
fall out of their races. Slide the yoke back
and forth on the bearings; the yoke will not
go all the way onto a bearing if a needle is
out of place.
a. Press each bearing into the universal joint
using a suitable socket.
NOTE:
The bearing must be inserted far enough into
the universal joint so that the circlip can be
installed.
b. Install the circlip ② into the groove of each
bearing.
3). Assembling the crankcase
(1) Apply:
• sealant (Quick Gasket)
(to the mating surfaces of both case halves)
(2) Install:
• dowel pins
(3) Fit the left crankcase onto the right case. Tap
lightly on the case with a soft hammer
To Next Page
