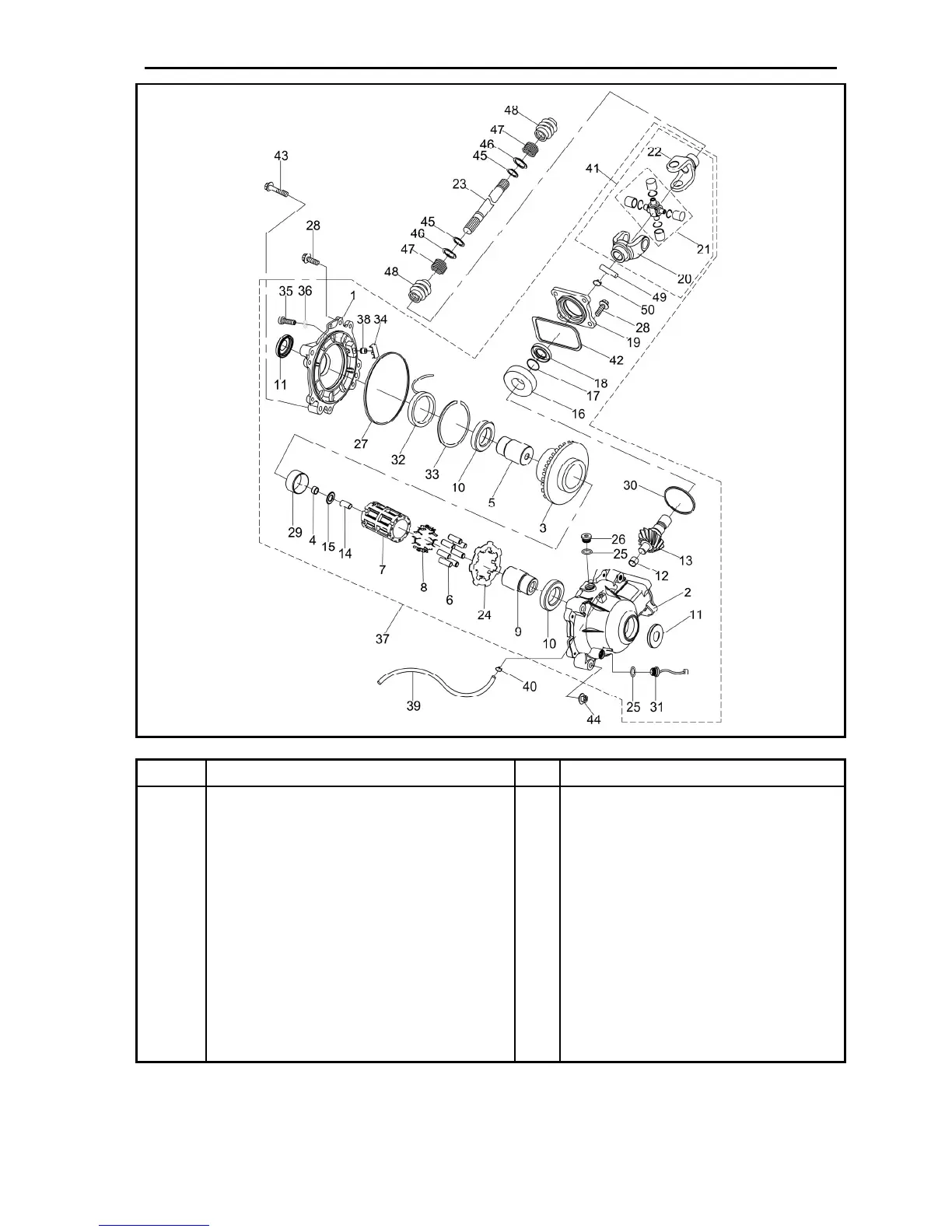

CHASSIS

- 225-

No. Part Name Qty Remarks

10 Bearings 6008C3 2

11 Universal joint seal,front bridge 2

12 Drive gear sleeve 1

13 Front bridge drive gear 1

14 Positioning axis 1

15 Bearing Hk 1

16 Bearing 6306C3 1

17 Adjustment gasket 1

18 Oil seal 25×47×8 1

19 Cap seal, front bridge 1

Connection fork, Ⅰ
