ELECTRICAL COMPONENTS

- 319 -

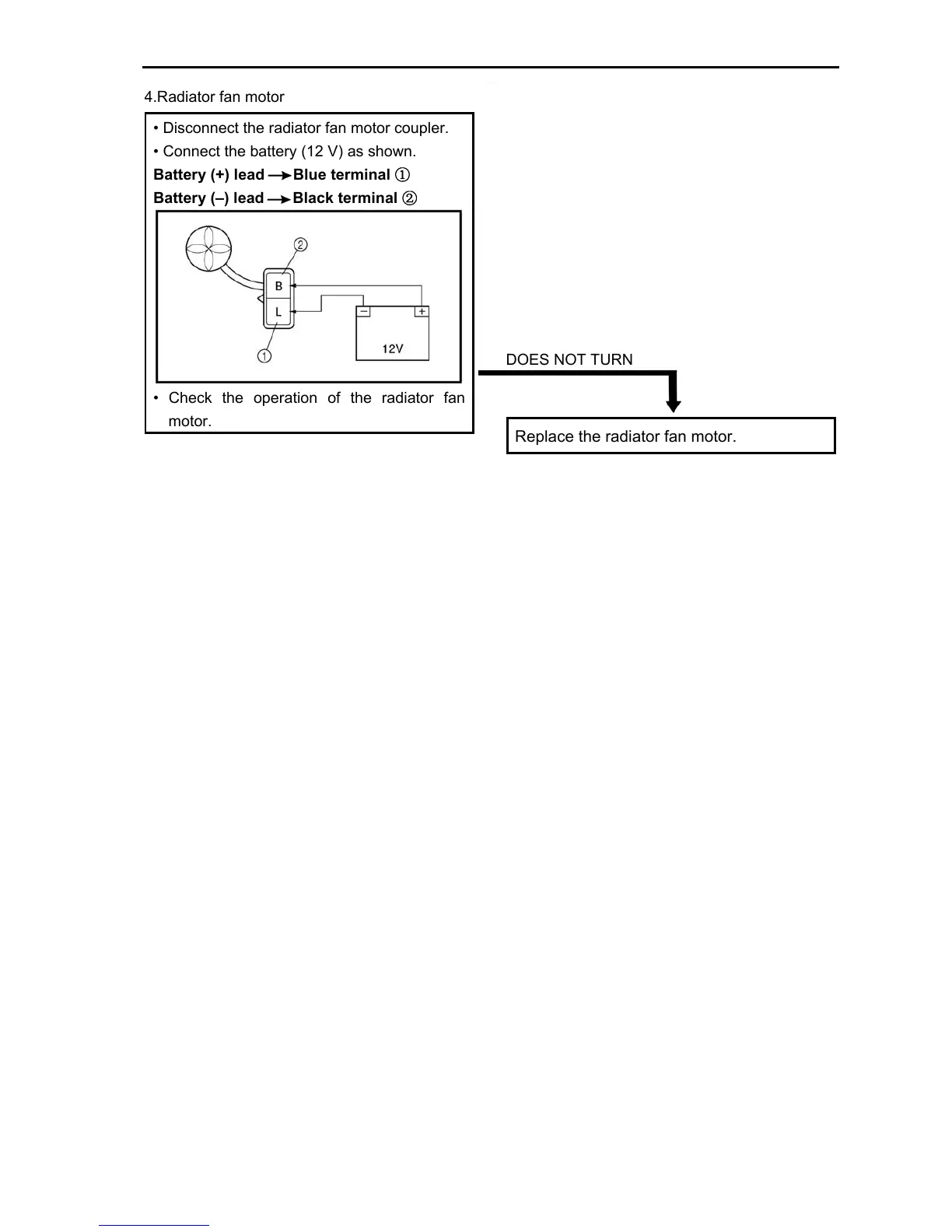

4.Radiator fan motor

• Disconnect the radiator fan motor coupler.

• Connect the battery (12 V) as shown.

Battery (+) lead

Blue terminal ①

Battery (–) lead

Black terminal ②

• Check the operation of the radiator fan

motor.

DOES NOT TURN

Replace the radiator fan motor.
