SPECIFICATIONS
- 65-
Item Standard Limit

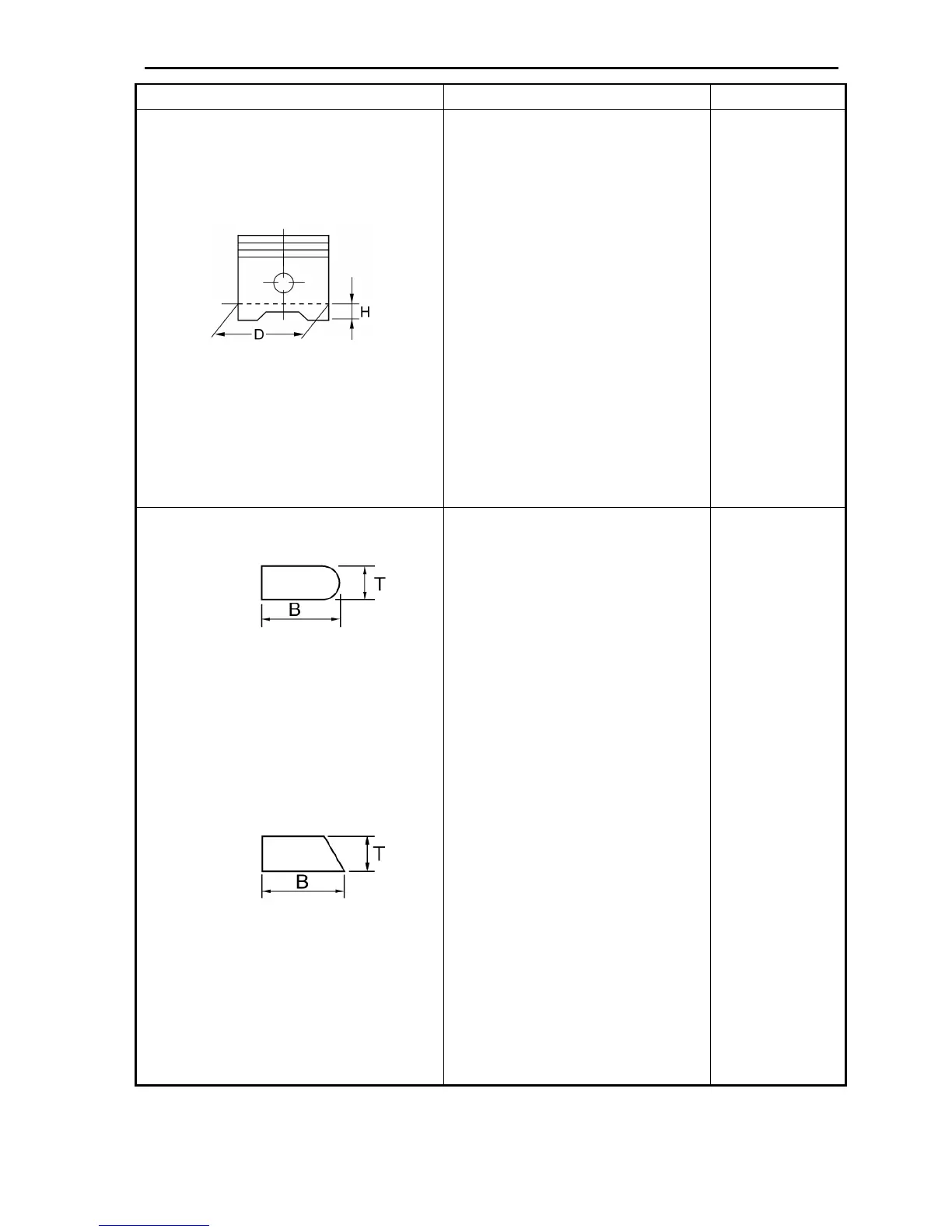

Piston
Piston to cylinder clearance
Piston size “D”
Measuring point “H”
Piston off-set
Off-set direction
Piston pin bore inside diameter
Piston pin outside diameter
0.050 ~ 0.070 mm
(0.0020 ~ 0.0028 in)
90.940 ~ 90.955mm
(3.5803 ~ 3.5809 in)
4.0 mm (0.15 in)
0.5mm(0.0394 in)
Intake side
20.002 ~ 20.008mm
(0.7875 ~ 0.7877in)
19.99 ~ 19.995 mm
(0.7870 ~ 0.7872 in)
0.15 mm
(0.0059 in)
----
----
----
----
----
----
----
Piston rings
Top ring
Type
Dimensions (B×T)
End gap (installed)
Side clearance (installed)
2nd ring
Type
Dimensions (B ×T)
End gap (installed)
Side clearance
Barrel
1.2 ×3.5 mm
(0.0472 ×0.1378in)
0.25 ~ 0.40 mm
(0.0098~ 0.0157 in)
0.04 ~ 0.08 mm
(0.0016 ~ 0.0031 in)
Taper
1.5×3.9 mm
(0.0591~0.1535 in)
0.30 ~ 0.50mm
(0.0118 ~ 0.0197in)
0.03 ~ 0.07 mm
(0.0012 ~ 0.0028 in)
----
----
----
----
----
----
----
----
----
----
----
----
