Hitachi H8/500 Series - System Clock Divider; Phase Relationship of Clock and E Clock

(2) External Clock Input
Frequency Double the system clock (ø) frequency
Duty factor 45% to 55%
8.3 System Clock Divider
The system clock divider divides the crystal oscillator or external clock frequency (fosc) by 2 to
create the ø clock.
An E clock signal is created by dividing the ø clock by 8. The E clock is used for interfacing to E
clock based devices.
Figure 8-6 shows the phase relationship of the E clock to the ø clock.
φ
E
ø
E

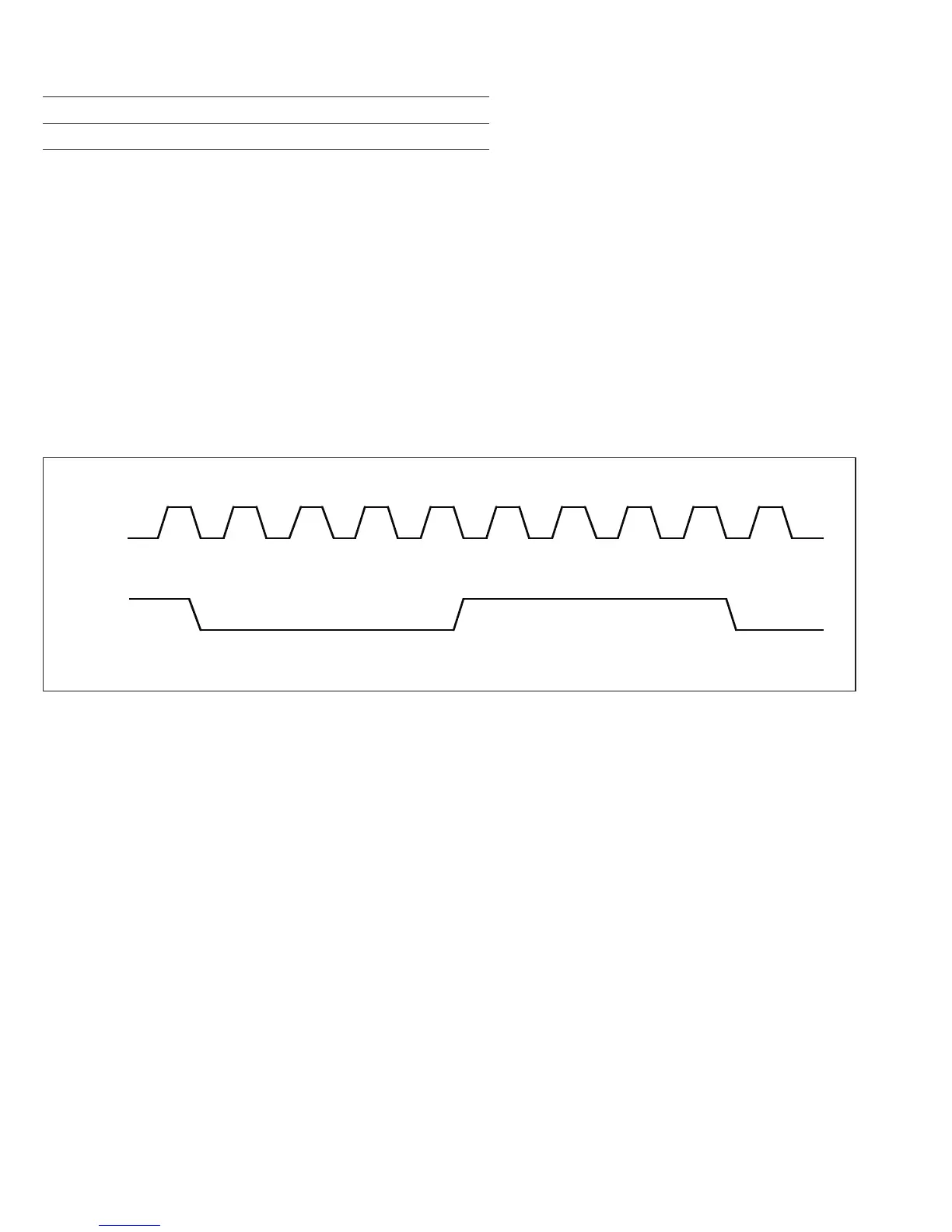

Figure 8-6 Phase Relationship of ø Clock and E Clock
